TAGIRA UGR LINE 40-830-850-3600LM max.
Order number: LG14405W
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG14405W
- Luminous Flux: 4400 lm
- Power Draw: Power Select (20, 30, 40 W)
- Light Color: CCT Select (3000, 4000, 5000 K)
- Input Current: AC 200-240V, 50/60Hz, DC 115-260V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 80°
- LED-Chip: MTC SMD 2835
- Housing Color: white
- Dimensions: 1183x67x73 mm
- Warranty: 3 years
Linear low UGR LED batten light Low galre rating for computer work station... more
Product information "TAGIRA UGR LINE 40-830-850-3600LM max."
Linear low UGR LED batten light
- Low galre rating for computer work station UGR<19
- Power Select: 20, 30, 40W switchable Multilumen: (2200lm, 3000m, 3600lm) max. 110lm/W
- CCT-Select: switchable light colours: 3000K, 4000K, 5000K
- Direct surface mounting or suspendet via 2 steel ropes.
Applications:
School, Kindergarden, Meeting Rooms, Hallways, Shop, Counter, Magzines, Education
Related links to "TAGIRA UGR LINE 40-830-850-3600LM max."
Technical Details:
| Luminous Flux: | 4400 lm |
| Light Yield: | 110 lm/W |
| Light Temperature: | 3000, 4000, 5000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 80 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | "Power Select" |
| LED-Chip Manufacturer: | MTC |
| LED-Chip: | SMD 2835 |
| Number of LED: | 240 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 50/60Hz, DC 115-260V |
| Power Consumption: | Power Select (20, 30, 40 W) |
| Contains Driver: | |

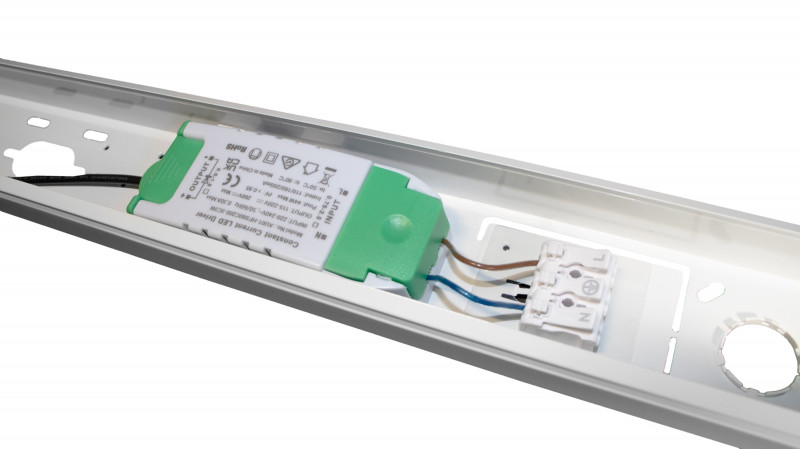

| Driver Manufacturer: | Litegear |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 45°C |
| Storage Temperature: | -40°C - 70°C |

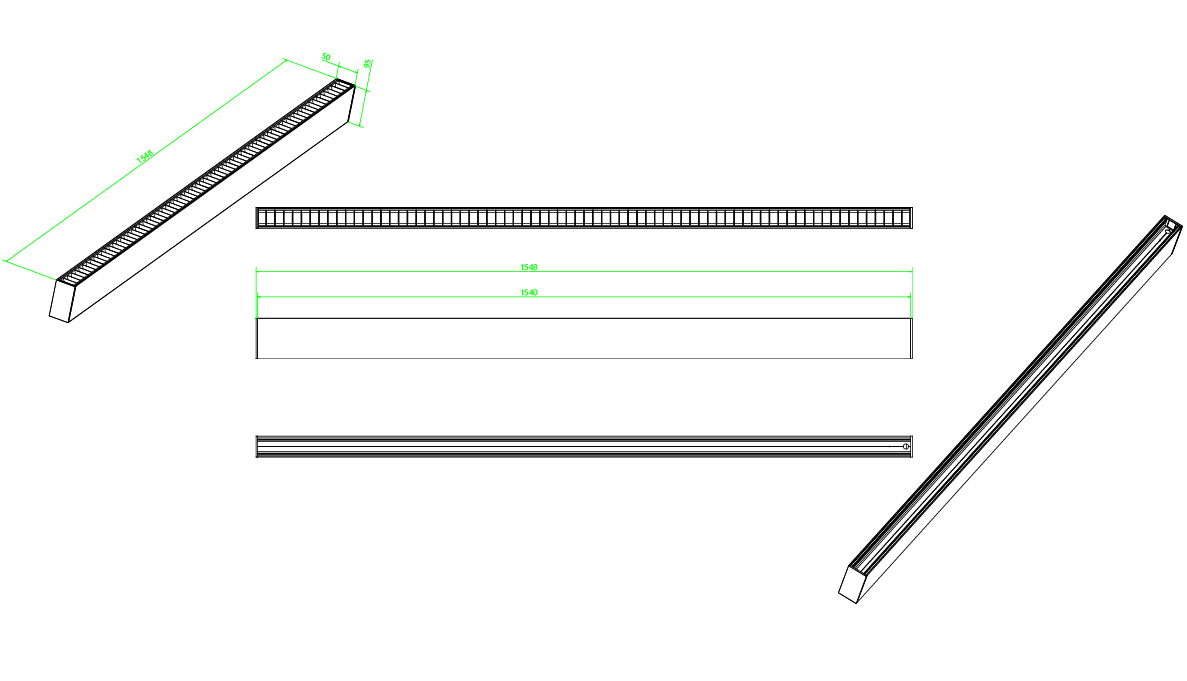

| Dimensions: | 1183x67x73 mm |
| Mounting: | Decke,Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 20 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | Stahlblech + plastic |
| Coating: | powder-coated |
| Special Feature of Housing: | Rasterleuchte |
| Cover: | frost mit Raster |
| Net Weight: | 1135 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1195x75x82 |
| Weight incl. Packaging: | 1.31 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1210x165x270 mm |
| Weight Master Package: | 8,6 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,LM80 |
| Barcode: | 4250557826394 |
| Elegante, modulare Balkenleuchte für Büros | |
| Für Bildschirmarbeitsplätze geeignet | |
Available downloads:
- Download (20W_3000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (20W_4000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (20W_5000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (30W_3000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (30W_4000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (30W_5000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (40W_3000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (40W_4000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
- Download (40W_5000K) LG14405W_TAGIRA UGR LINE 40_830_850_3600LM max. (.ldt)
