Preview: OMNIA SMART Downlight 6W-60-927/960-630LM IP65 front integr. SENSOR Master/Slave

OMNIA SMART Downlight 6W-60-927/960-630LM IP65 front integr. SENSOR Master/Slave

Product Info (PDF)

Order number: LG10481

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG10481
Luminous Flux: 600 lm
Power Draw: 6 W
Light Color: CCT Select (2700, 3000, 4000, 6000 K)
Input Current: AC 220 - 240V, 100mA, 50/60Hz
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20 (65 room side)

Beam Angle: 60°
LED-Chip: San'an SMD2835
Housing Color: black/white
Dimensions: 88x40 mm
Cut-Out Dimensions: 68-70 mm
Warranty: 3 years

Luminous Flux

600
lm

Power Draw

6 W

Light Color

2700, 3000, 4000, 6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

IP Class Room Side

IP 65
room side

Beam Angle

60°

mounting type

Light Direction

Dimensions

(ØxH) in mm
88x40

Warranty

3 years

The light source cannot be replaced

The driver cannot be replaced

Litegear ® universal LED-Downlight suitable for recessed MR16 downlight fittings with... more

Close menu

Product information "OMNIA SMART Downlight 6W-60-927/960-630LM IP65 front integr. SENSOR Master/Slave"

Litegear ® universal LED-Downlight suitable for recessed MR16 downlight fittings with integrated motion sensor - One Fit all

Downlight with integrated PIR motion sensor: detection area 2-6m (detection level selectable low, mid, high)
perfect replacement for konventional downlights with halogen MR16 GU5,3 or GU10 socket

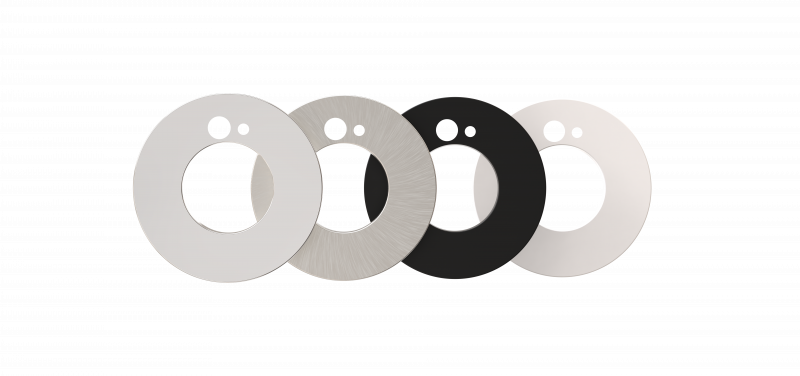

interchangeable magnetic bezel (white color ring included)
high system effcency up to 105lm/W (430-630lm) High CRI: >90
CCT selectable 2700, 3000, 4000, 6000 Kelvin via switch behind the bezel
optional other bezel colours available: black, silver brushed
beamangle: 60°
compact dimensions: 88mm Dimensions: and only 35mm high for recessed ceilings with limited space cut out: 68-70mm only 32mm deep
plugable terminal box for power loop 240V AC
Sensor functions: hold time 30s, 3min, 10min or disable, Daylight threshold: <100 Lux, >100 Lux, >2200 Lux, disable
Master/Slave function: 1 to 2 Omnia Smart Downlights can control several pasive downlight from same range up to 200W load as salves

Applications:

hall way, storage rooms, toilet, dressing room, seller, balcony, entrance door, outside under cannopies, Terrace,attica, walkways

Related links to "OMNIA SMART Downlight 6W-60-927/960-630LM IP65 front integr. SENSOR Master/Slave"

Zurück

Technical Details:

Luminous Flux:	600 lm
Light Yield:	100 lm/W
Light Temperature:	2700, 3000, 4000, 6000 K
Light Color:	CCT Select
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<6
Beam Angle:	60 °
Unified Glare Rating (UGR):	30
Light Emission:	downward
Method of Dimming:	"Triac Phasenan-/abschnitt"
LED-Chip Manufacturer:	San'an
LED-Chip:	SMD2835
Number of LED:	20
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 100mA, 50/60Hz
Power Consumption:	6 W
Contains Driver:
Power Factor (PF):	>0.5
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal Anschlußdose
Switching Cycles:	>50.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-40°C - 60°C

Dimensions:	88x40 mm
Installation Depth:	35 mm
Cut-Out Dimensions:	68-70 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (65 room side)
IK Code:	02
Housing Color	black/white
Housing Color (RAL Code):	similar 9005
Housing Material:	Aluminium/PC
Coating:	powder-coated
Special Feature of Housing:	flaches Gehäuse
Cover:	Lens
Net Weight:	157 g

Type of Packaging:	box
Dimensions of Packaging:	100x90x70
Weight incl. Packaging:	0.196 kg
Content Master Package:	40
Dimensions of Master Package:	480x220x310 mm
Weight Master Package:	8,2 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,ERP
Barcode:	4250557827537
Universelles, flaches LED-Downlight mit PIR-Sensor
wechselbare magnetische Frontblende white enthalten
kompatibel mit den meisten Phasenan-/abschnitsdimm
campatible with most Triac dimmer
CCT selectable, Master/Slave 200W

Technical Data Sheet (PDF)

Zurück

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung... more

Zurück

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung für 65-70mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 68-70 mm
Einbautiefe: 35 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 600 lm
LED-Leistung: 6 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 2700, 3000, 4000, 6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 60°
UGR: 30
Lichtaustritt: direkt
Maße: 88x40 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP65 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: black/white (9005)
Gehäusematerial: Aluminium/PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 157 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
