Placida Circle 220 18-830-1420LM

LG58330
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

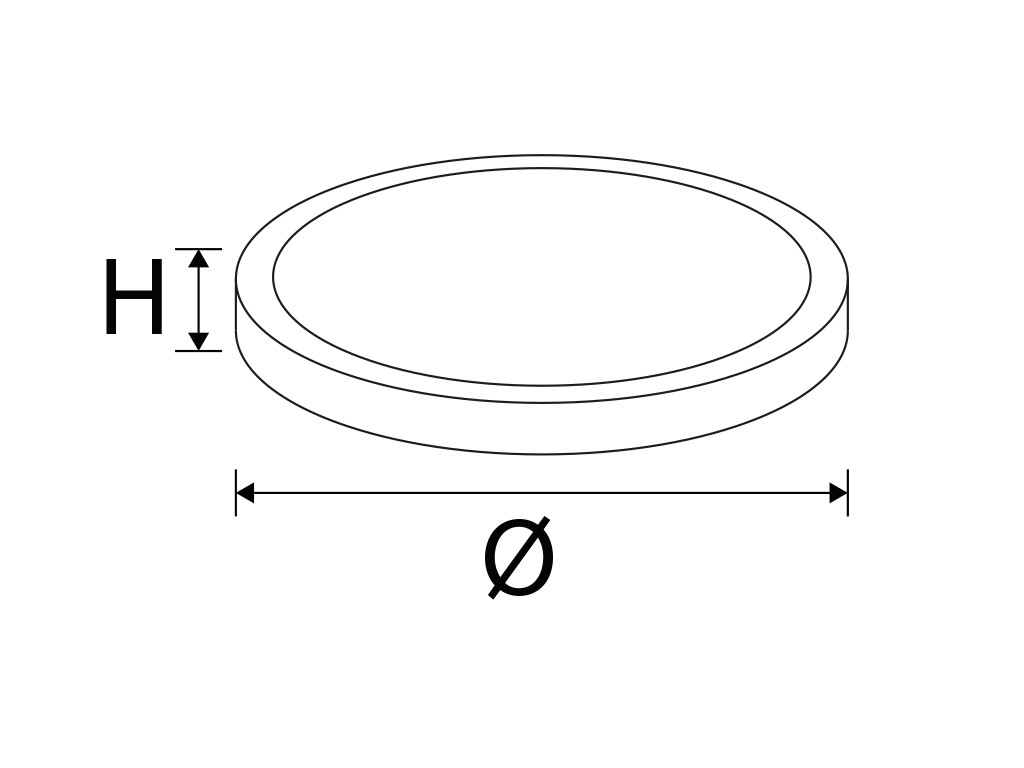

Dimensions

Dimensions
  • LG58330
  • Luminous Flux: 1420 lm
  • Power Draw: 17 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 120°
  • LED-Chip: Epistar SMD 4014
  • Housing Color: white
  • Dimensions: 220x18 mm
  • Warranty: 3 years

Luminous Flux

1420
lm

Power Draw

17 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
220x18

Warranty

3 years

Flat surface mounted LED luminaire   Litegear® Placida is a very flat... more
Product information "Placida Circle 220 18-830-1420LM"
Flat surface mounted LED luminaire

Litegear® Placida is a very flat and stylish surface mounted luminaire for walls and ceilings. High lumen efficanecy and long lifespan make this product perfect for lobbies, entrance halls, living room, bedroom, office, corridors and lavatories. Integrated LED driver and easy installtion with included T-Bar and screws. Placida is available in different shapes, square and round and different dimensions. Also available with integrated motion sensor and in different light colors. Quick return on investment and extremly low maintenance cost are additional benefits for the user. Wide beamangle and low glare rate.
Related links to "Placida Circle 220 18-830-1420LM"
Technical Details:

Luminous Flux: 1420 lm
LED Output: 18 W
Light Yield: 84 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 120 °
Light Emission: downward
LED-Chip Manufacturer: Epistar
LED-Chip: SMD 4014
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 17 W
Contains Driver: ja
Power Factor (PF): >0.55
Input Driver: cable with flying leads
Output of Driver: DC 81V, 200mA
CC/CV: CC
Input Lamp: terminal
Switching Cycles: >30.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 220x18 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: flat only 18mm high
Cover: opal
Net Weight: 367 g
Type of Packaging: box
Weight incl. Packaging: 0.47 kg
Content Master Package: 20
Dimensions of Master Package: 472x295x285 mm
Weight Master Package: 14,5 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >30.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD
Barcode: 4250557808994
