Wega Circle 600-60-840-6000LM DIM

LG58245DBK
Prices are only visible after login.

Availability: on request

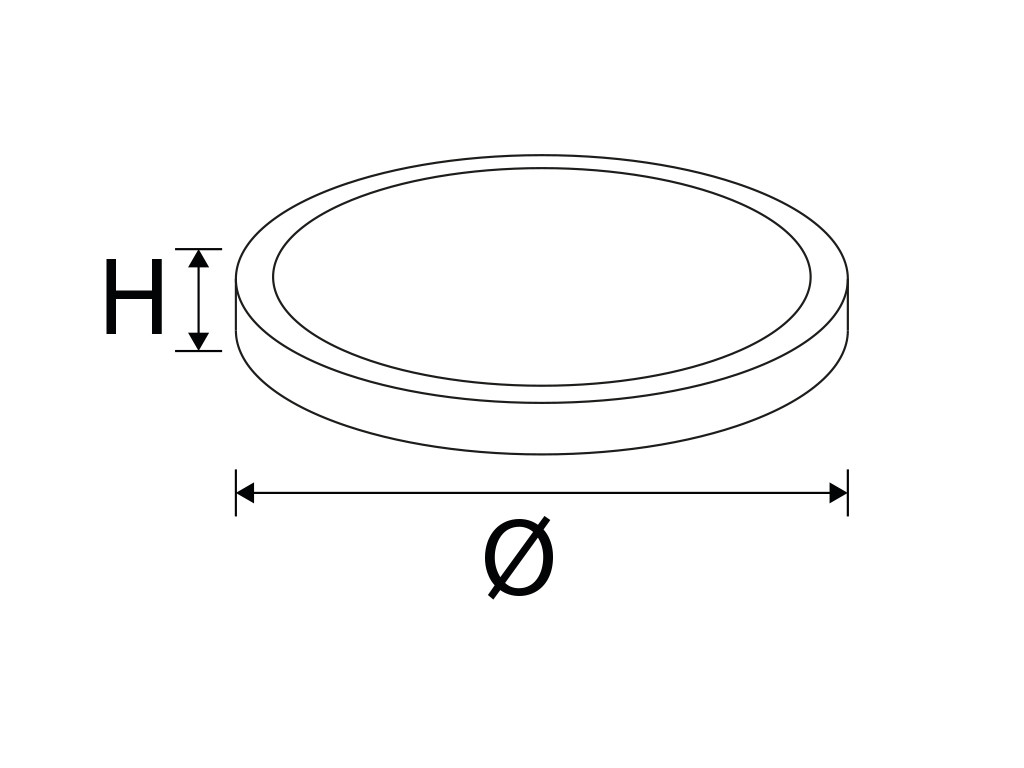

Dimensions

Dimensions
  • LG58245DBK
  • Luminous Flux: 6000 lm
  • Power Draw: 60 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 110°
  • LED-Chip: SMD 2835
  • Housing Color: black
  • Dimensions: 600x62 mm
  • Warranty: 3 years

Luminous Flux

6000
lm

Power Draw

60 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

110°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
600x62

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Round surface-mounted luminaire   Litegear® WEGA CIRCLE is a round... more
Product information "Wega Circle 600-60-840-6000LM DIM"
Round surface-mounted luminaire

  • Litegear® WEGA CIRCLE is a round surface-mounted luminaire for ceiling or wall mounting.
  • Easy assembly thanks to mounting bracket with twist lock and safety ropes
  • high quality aluminum housing
  • Available in different sizes and housing colors: black, white
  • Light color: 4000K or 3000K
  • uniform light distribution and illumination
  • Can also be used as a pendant lamp with the optional steel cable set.

Applications:
Offices, sales areas, reception halls, schools, exhibitions, living spaces
Related links to "Wega Circle 600-60-840-6000LM DIM"
Technical Details:

Luminous Flux: 6000 lm
Light Yield: 100 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 110 °
Unified Glare Rating (UGR): 22
Light Emission: downward
Dimmable: ja
Method of Dimming: 1-10V,PWM
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 60 W
Contains Driver: ja
Driver Manufacturer: AAA
Power Factor (PF): >0.95
Input Driver: terminal
CC/CV: CC
Input Lamp: Terminal
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 600x62 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 20
IK Code: 03
Housing Color black
Housing Material: aluminum
Coating: powder-coated
Cover: prismatic
Net Weight: 5200 g
Type of Packaging: box
Dimensions of Packaging: 645x80x630
Weight incl. Packaging: 6.1 kg
Content Master Package: 2
Dimensions of Master Package: 650x185x655 mm
Weight Master Package: 13,3 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,SELV,D
Barcode: 4250557821368
mit opt. Zubehör als Pendelleuchte zu verwenden
Can be used with opt. accessories as pendant light
Fangseil und Drehhalterung
dimmbarer 0-10V Treiber
h h
Runde LED-Wand-/Deckenleuchte mit hochwertigem blackem Aluminiumgehäuse more
Runde LED-Wand-/Deckenleuchte mit hochwertigem blackem Aluminiumgehäuse
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 6000 lm
LED-Leistung: 60 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 600x62 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 5200 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
