Alvera Line MKII 600 20-840-2700LM DIM
Order number: LG30452
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG30452
- Luminous Flux: 2700 lm
- Power Draw: 20 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 100-277V, 50Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 625x85x78 mm
- Warranty: 5 years
LED Tri-proof light The Litegear® Alvera is a stylish, waterproof LED fixture with... more
Product information "Alvera Line MKII 600 20-840-2700LM DIM"
LED Tri-proof light
The Litegear® Alvera is a stylish, waterproof LED fixture with IP65 standard and high mechanical protection. Alvera Line LED is equipped with LED boards with very high system efficency up to 135 Lumen/Watt and available in different lengths and in different power classes.

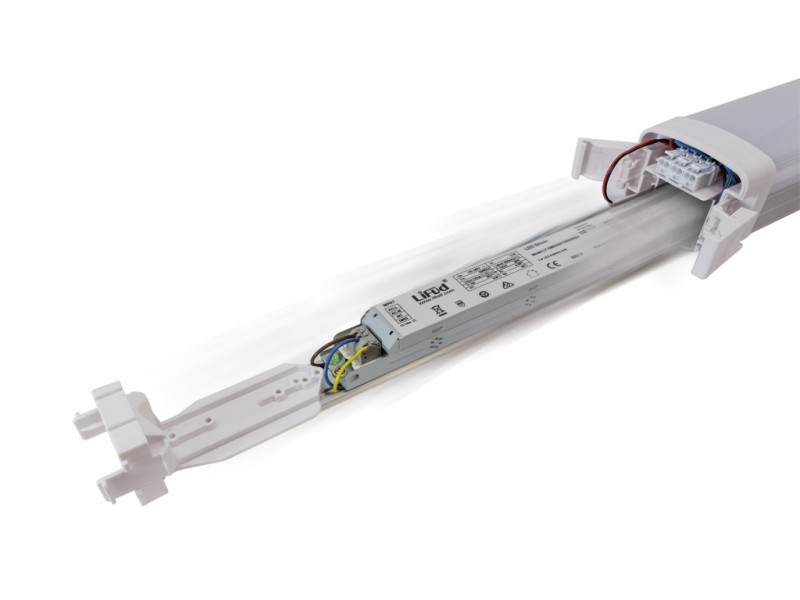

Based on a strong aluminum profile with excellent heat dissipation for long lifespan of up to 50.000 hours and a opal PC diffuser Litegear® created a unique LED weatherproof luminaire with easy and fast installation and daisy chain function trough easy access endcaps and junction terminal. Alvera has a fast cash back due to its excellent performance and high efficency up to 8000 Lumen. Alvera is the perfect luminaire for industrial applications in factories, warehouse, coolhouse storage, parking lots, sellers or just outside. Up to 5 years full warranty. Alvera comes with a high quality LED driver!
Wide voltage range driver 100-277V AC and CE and UL certificate!
Dimmbale: 0-10V signal
optional features:
- 3 x 2,5mm² wire through link with terminal on both sides
- CCT-select switch for 3 light colos: 4000K, 5000K, 6500K
- Suitable for use in HACCP, IFS, and/or BRC Global Standard Food certified companies.
Related links to "Alvera Line MKII 600 20-840-2700LM DIM"
Technical Details:
| Luminous Flux: | 2700 lm |
| LED Output: | 20 W |
| Light Yield: | 135 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | 1-10V,PWM,Poti |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 100-277V, 50Hz |
| Power Consumption: | 20 W |
| Contains Driver: | |

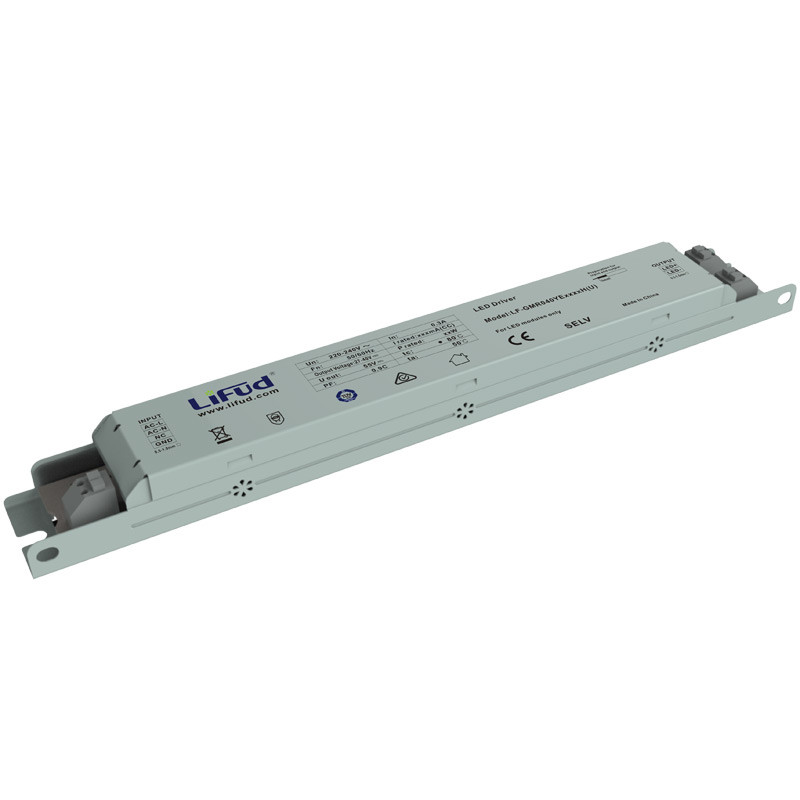

| Driver Manufacturer: | Lifud LF-GLD025YS |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 30-40V, 500mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 625x85x78 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 10 |
| Housing Color | white |
| Housing Material: | aluminum |
| Special Feature of Housing: | opt. Polycarbonat Cover |
| Cover: | opal |
| Net Weight: | 1335 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 695x92x82 |
| Content Master Package: | 4 |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,LM80,SELV,CB |
| Einfache, und schnelle Montage In/out | |
| Schnellverschluß Endkappen | |
| CE, UL, FCC, LM80, TM21 | |
| dimmbare Version: 1-10V, PWM, Rx Poti | |
| optional auch mit Durchgangsverdrahtung 3 x 2,5mm² | |
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und... more
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und optionaler Sensorik
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2700 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 135 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 625x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 1335 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2700 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 135 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 625x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 1335 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
