Preview: LED- ASTARA 15-38/927/1950-4600LM BK max. 130lm/W

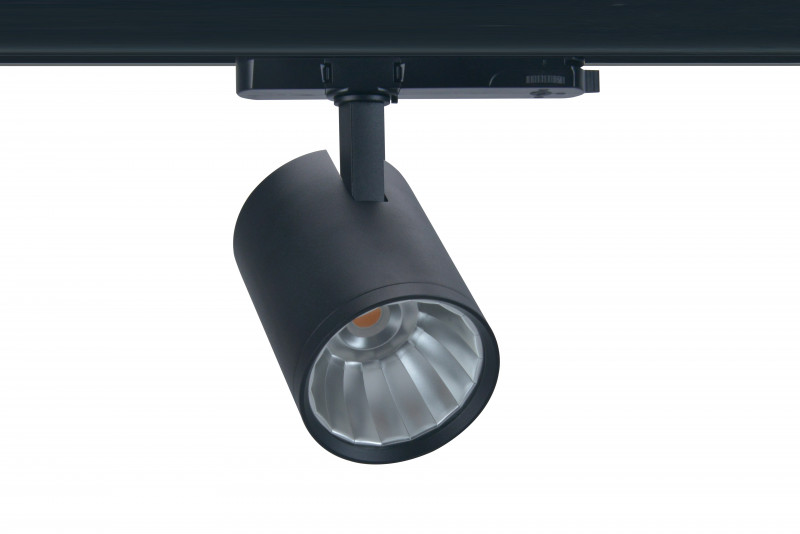

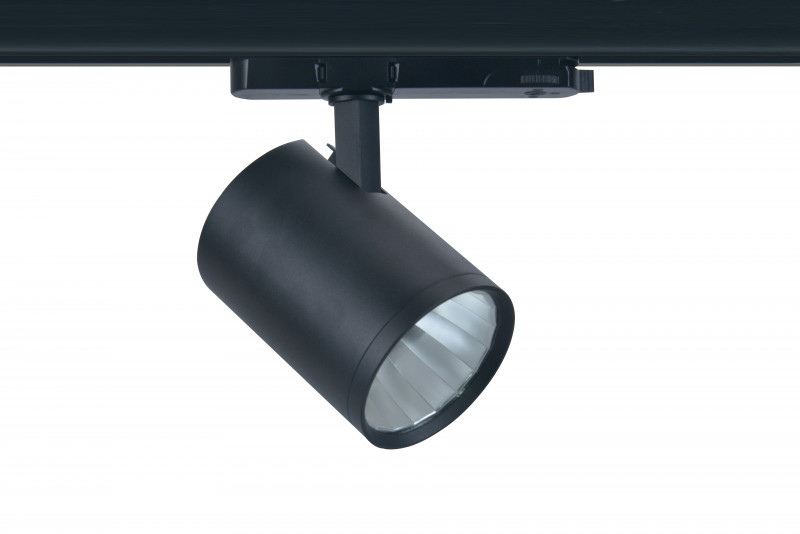

LED- ASTARA 15-38/927/1950-4600LM BK max. 130lm/W

Product Info (PDF)

Order number: LG11649

Prices are only visible after login.

Availability: on request

Menü schließen

Order number: : LG11649
Luminous Flux: 4600 lm
Power Draw: Power Select (12-38 W)
Light Color: warmwhite (2700 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

Beam Angle: 38°
LED-Chip: JUN CAN COB
Housing Color: black
Dimensions: 90x108 mm
Warranty: 5 years

Luminous Flux

4600
lm

Power Draw

38 W

Light Color

2700 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

38°

mounting type

Light Direction

Dimensions

(ØxH) in mm
90x108

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED-Trackspot high efficient LED-Spot max. 130lm/W 1950-4730lm... more

Close menu

Product information "LED- ASTARA 15-38/927/1950-4600LM BK max. 130lm/W"

LED-Trackspot

high efficient LED-Spot max. 130lm/W 1950-4730lm
for common 3 Phase Trackrails, also in Dali Version available
high reflective Alanod segment reflector
compact in track driver with output select: 300-1050mA, 15-38W using range, ENEC05 certified
long lifespan components guarantee low maintenanceand operational costs
compact construction with wide swivel range
exchangeable reflector with different beam angles as an option: 15° and 24°

Applications:

Shops, supermarket, showroom
Museum, gallery, exhibition

Related links to "LED- ASTARA 15-38/927/1950-4600LM BK max. 130lm/W"

Zurück

Technical Details:

Luminous Flux:	4600 lm
Light Yield:	121 lm/W
Light Temperature:	2700 K
Light Color:	warmwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<3
Beam Angle:	38 °
Swappable Reflector:
Light Emission:	downward
LED-Chip Manufacturer:	JUN CAN
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	Power Select (12-38 W)
Contains Driver:
Driver Manufacturer:	KGP
Power Factor (PF):	>0.95
Input Driver:	lighting track
Output of Driver:	DC 10-42V, 300-1050mA
CC/CV:	CC
Input Lamp:	Power rail
Switching Cycles:	>100.000
Electrical Protection Class:	I
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 45°C

Dimensions:	90x108 mm
Mounting:	Decke
Montageart:	surface mounted
Pivot Range pan:	355 °
Pivot Range tilt:	90 °
IP Class:	20
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Cover:	clear
Net Weight:	824 g

Type of Packaging:	box
Dimensions of Packaging:	179x95x205
Weight incl. Packaging:	0.99 kg
Content Master Package:	15
Dimensions of Master Package:	530x220x51 mm
Weight Master Package:	12,1 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,SELV
Barcode:	4250557825700
Allanod Reflector: Miro 4 / Miro 20
Systemefficiency: max. 130lm/W
wechselbarer Reflektor
inkl. 3-Phaseadapter/incl. 3 phase track adapter

Technical Data Sheet (PDF)

Formschöner Stromschienenstrahler für den Ersatz von konventionellen Halogen- oder HQI-Strahlern more

Zurück

Formschöner Stromschienenstrahler für den Ersatz von konventionellen Halogen- oder HQI-Strahlern
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4600 lm
LED-Leistung: Power Select (12-38 W)
Leuchten-Lichtausbeute: 121 lm/W
Farbtemperatur: 2700 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 90x108 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 824 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
