Varia-Flex Inline DALI 2 Treiber
Order number: LG14566B
Available soon
Prices are only visible after login.
Availability: on request
Modular LED track spotlight driver Conceiled Inline LED driver... more
Product information "Varia-Flex Inline DALI 2 Treiber"

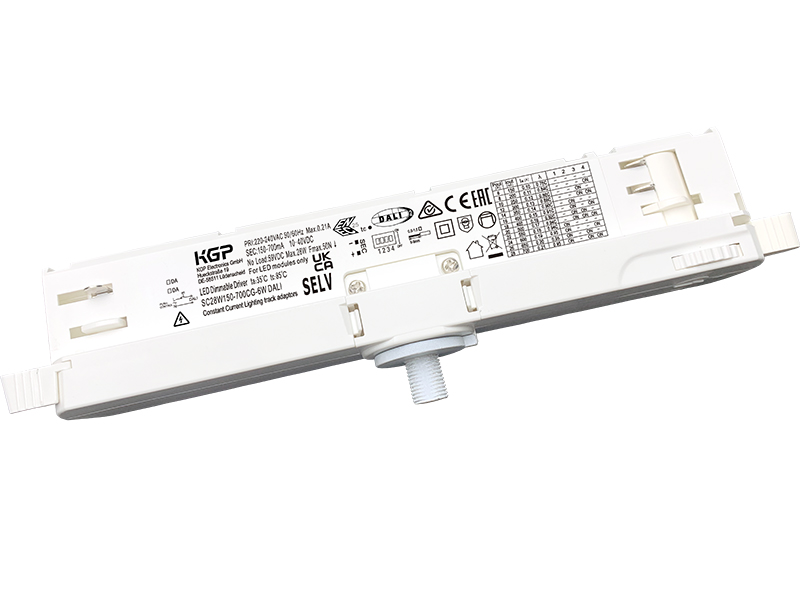

Modular LED track spotlight driver
- Conceiled Inline LED driver for Varia-Flex tracklight series
- DALI 2 dimmable
- selectable power: 150-700mA, 7-30W
- easy assembly with DC plug and turnlock
- suitable for common 3-phase track rails
Suitable Dali power supply for Varai Flex tracklight body.
Varia FLEX is assembled according to her personal configuration in Germany.
- Changeable and adjustable LED Driver: 23-31W
- Exchangeable LED COB module with the best quality of light and high efficiency max. 130lm/W: CRI> 90 with improved color rendering
- Selectable standard light colors: 2700K, 3000K, 4000K, 5000K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion or 3500K
- long life: up to 50,000 hours L80
- various lenses available
- 3-phase power adapter, compatible with all standard track rails
- 2 housing colors available: white, black
- passive cooling, aluminum heat sink
- modular design
maximum quantity of 31W (0,17A current) tracklights per circuit breaker:
10A: 27 pcs., 16A: 42 pcs., 20A: 52 pcs.
Related links to "Varia-Flex Inline DALI 2 Treiber"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | Power Select (7-30 W) |
| Contains Driver: | |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 9-40V, 600-800mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 35°C |
| Storage Temperature: | -20°C - 80°C |
| Dimensions: | 198x32x46 mm |
| Mounting: | Stromschiene |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | plastic |
| Net Weight: | 116 g |
| Content Master Package: | 50 |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,ENEC,LM80,SELV |
| Inline DALI 2 LED-Treiber für Varia-Flex | |
| Inline DALI2 LED driver for Varia -Flex | |
| Power Select 150-700mA 7-30W | |
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 35°C
LED-Leistung: Power Select (7-30 W)
Maße: 198x32x46 mm
Montageart: (Stromschiene)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: plastic
Nettogewicht: 116 g
Garantie: 5 Jahre
Mittlere Lebensdauer: 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 35°C
LED-Leistung: Power Select (7-30 W)
Maße: 198x32x46 mm
Montageart: (Stromschiene)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: plastic
Nettogewicht: 116 g
Garantie: 5 Jahre
Mittlere Lebensdauer: 50000 h
