CONLUX Floodlight ASY100x17-1000-740-147000LM Dali Dim
Order number: LG12467DA
Available soon
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG12467DA
- Luminous Flux: 147000 lm
- Power Draw: 1000 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 100 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 100x17°
- LED-Chip: Seoul Semiconductor SMD 3535
- Housing Color: black
- Dimensions: 631x585x453 mm
- Warranty: 5 years
LED Flood Light Litegear® CONLUX is a stylish and modular LED outdoor... more
Product information "CONLUX Floodlight ASY100x17-1000-740-147000LM Dali Dim"

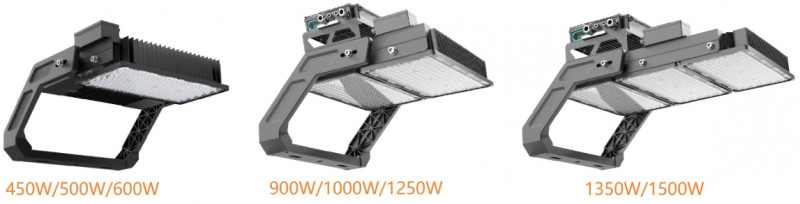

LED Flood Light

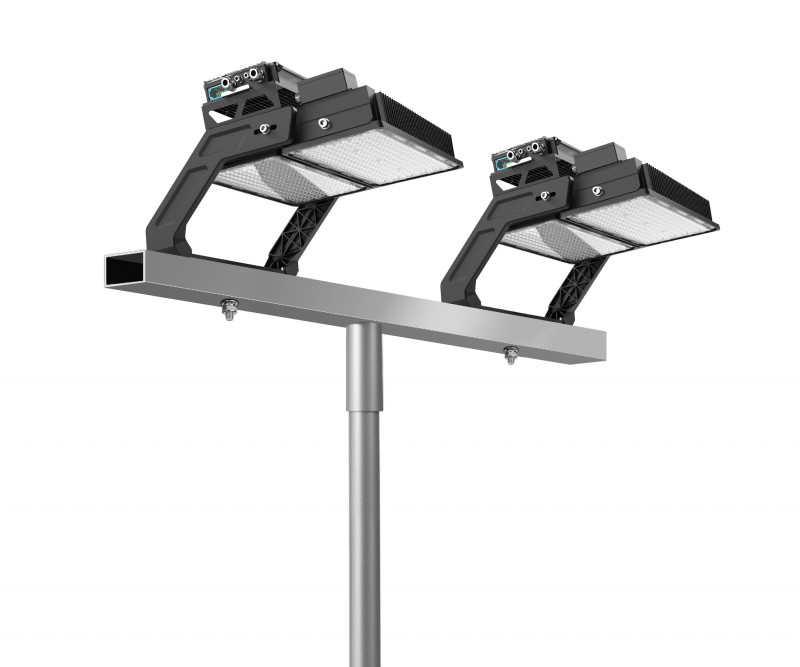

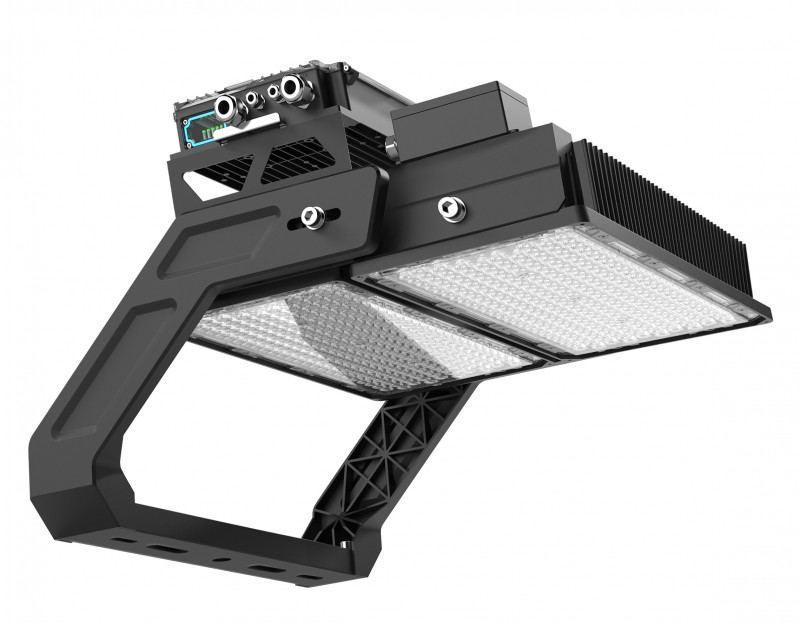

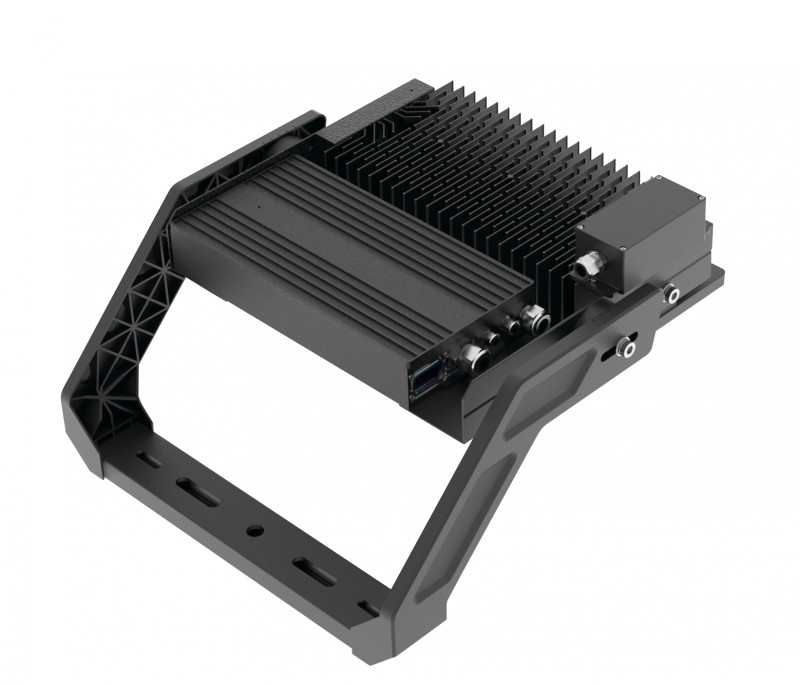

Litegear® CONLUX is a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of a light weight alluminum housing, inox screws and strong bracket it has a excellent corrosion resistance. Conlux is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. Dimming function on option (Dali dimming). Very light weight total 23,00kg (15,8 +7,2kg)
20kV surge protection device

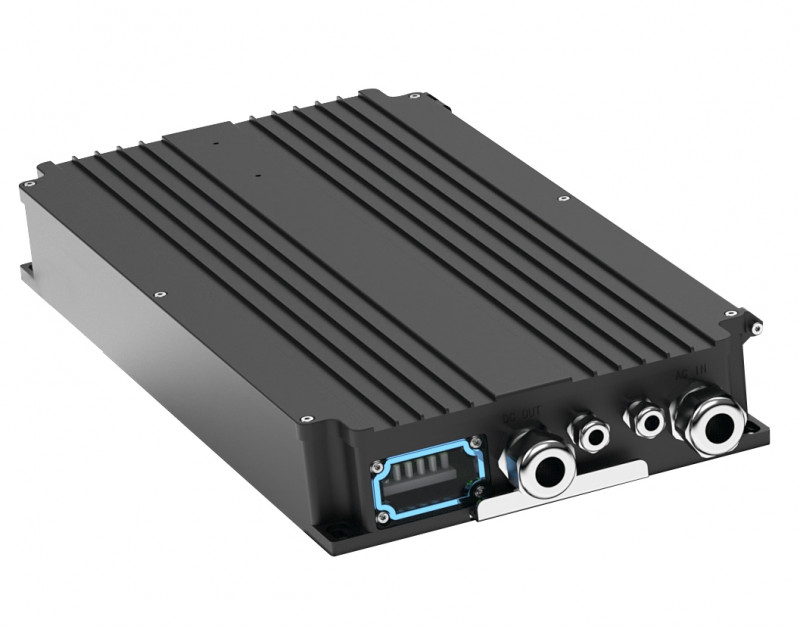

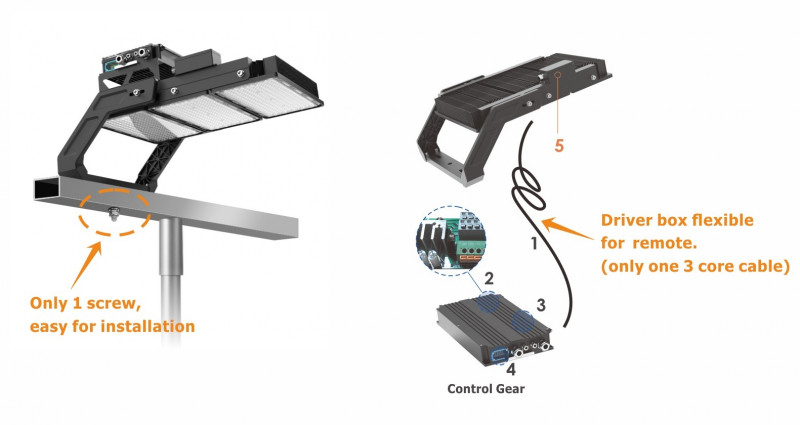

Only 3-core cable needed
Applications:

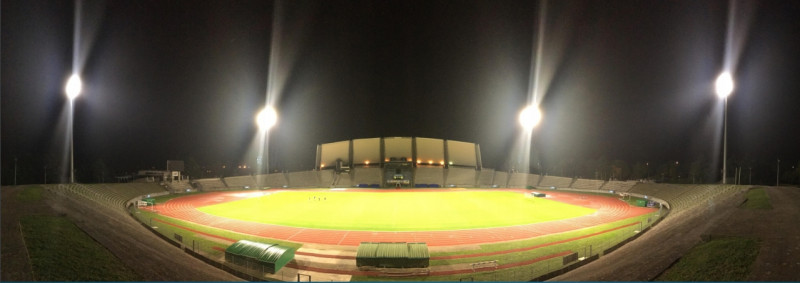

- sport field: Soccer, Tennis, Basketball, Golf
- harbour, airport, warehouse
- industrial and architectural applications
Technical Details:
- Safety Tests: EN 60598-1:2015, EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
- EMC Test: EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "CONLUX Floodlight ASY100x17-1000-740-147000LM Dali Dim"
Technical Details:
| Luminous Flux: | 147000 lm |
| Light Yield: | 147 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 100x17 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI |
| LED-Chip Manufacturer: | Seoul Semiconductor |
| LED-Chip: | SMD 3535 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 100 - 240V, 50/60Hz |
| Power Consumption: | 1000 W |
| Contains Driver: | |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >250.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 631x585x453 mm |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 10 |
| Housing Color | black |
| Housing Color (RAL Code): | similar 9004 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | modular |
| Cover: | Lens |
| Net Weight: | 23000 g |
| Type of Packaging: | box |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >104.000 h L90B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405421000 |
| Certifications | CE,ENEC,LM80,ERP,CB |
| Dali 2.0 dimmbar | |
| Akzo Nobel Beschichtung | |
| vertikaler Schwenkbereich -20° bis +50° | |
