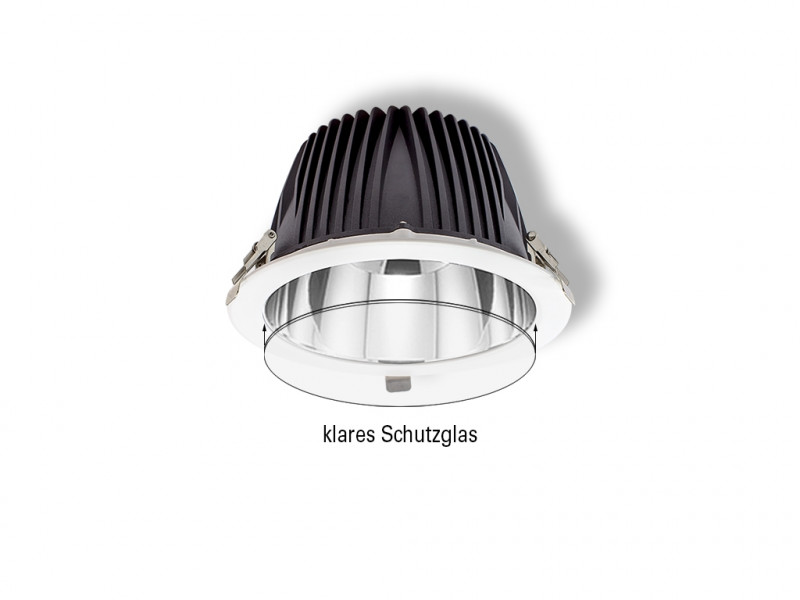

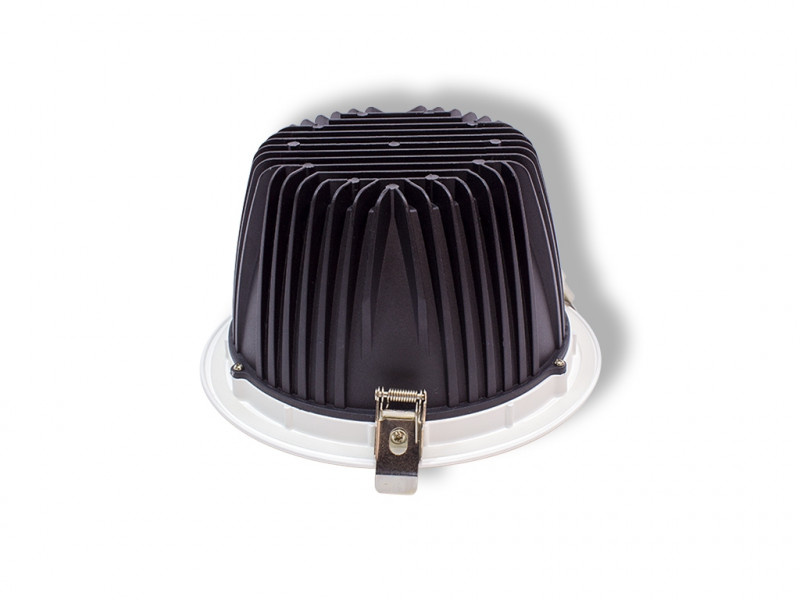

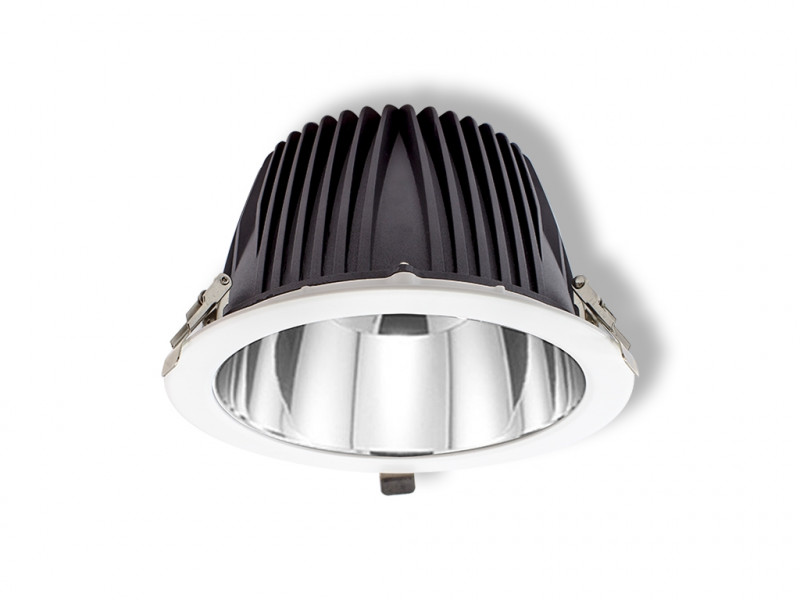

Integra SMD MKII 26-830-2600LM
Order number: LG10061
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG10061
- Luminous Flux: 2600 lm
- Power Draw: 26 W
- Light Color: warmwhite (3000 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 54 (65 room side)
- Beam Angle: 83°
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 217x121 mm
- Cut-Out Dimensions: 200-205 mm
- Warranty: 5 years
LED Downlight The Integra SMD can be easily integrated into ceilings. They... more
Product information "Integra SMD MKII 26-830-2600LM"
LED Downlight
The Integra SMD can be easily integrated into ceilings. They distinguish themselves by a high light efficiency and a long lifetime. We offer the Integra-Series in different achievement classes and beam angels. Therefore the different ranges of application, as for example flat illumination can be realised for foyers, halls shops or offices. The Integra SMD Series in which the light is bundled up by a reflector is suited ideally for product presentations in shops and boutiques. Due to it´s very low glare it is perfect for computer screens. Litegear® Integra SMD has a very strong but light housing made of aluminum alloy, which is used in air planes. The LED light is generated by several SMD chips in a separate light chamber and protected by a frosted cover. Reflectors will guide the light. Integra SMD has a very high light efficency.
Related links to "Integra SMD MKII 26-830-2600LM"
Technical Details:
| Luminous Flux: | 2600 lm |
| LED Output: | 25 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 83 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 26 W |
| Output of Driver: | DC 30 - 36V, 700mA |
| CC/CV: | CC |

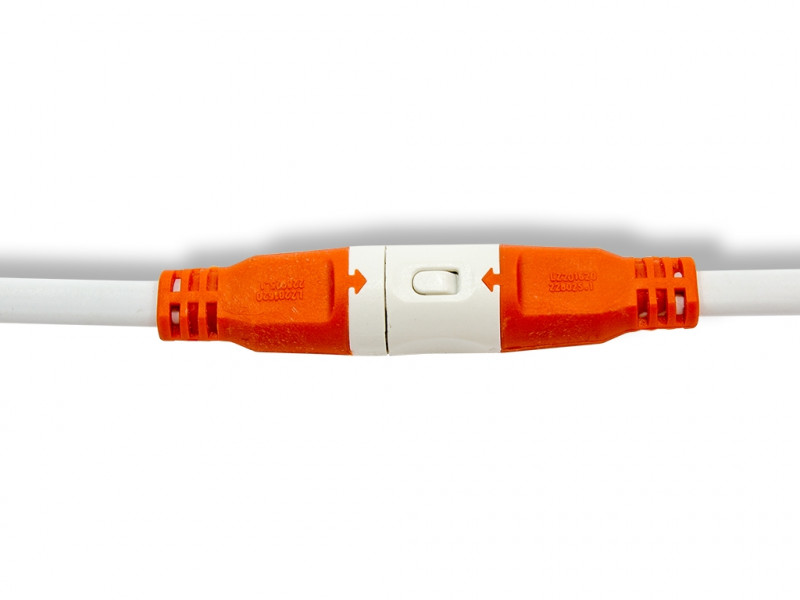

| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Ambient Temperature (TA): | -20°C - 40°C |

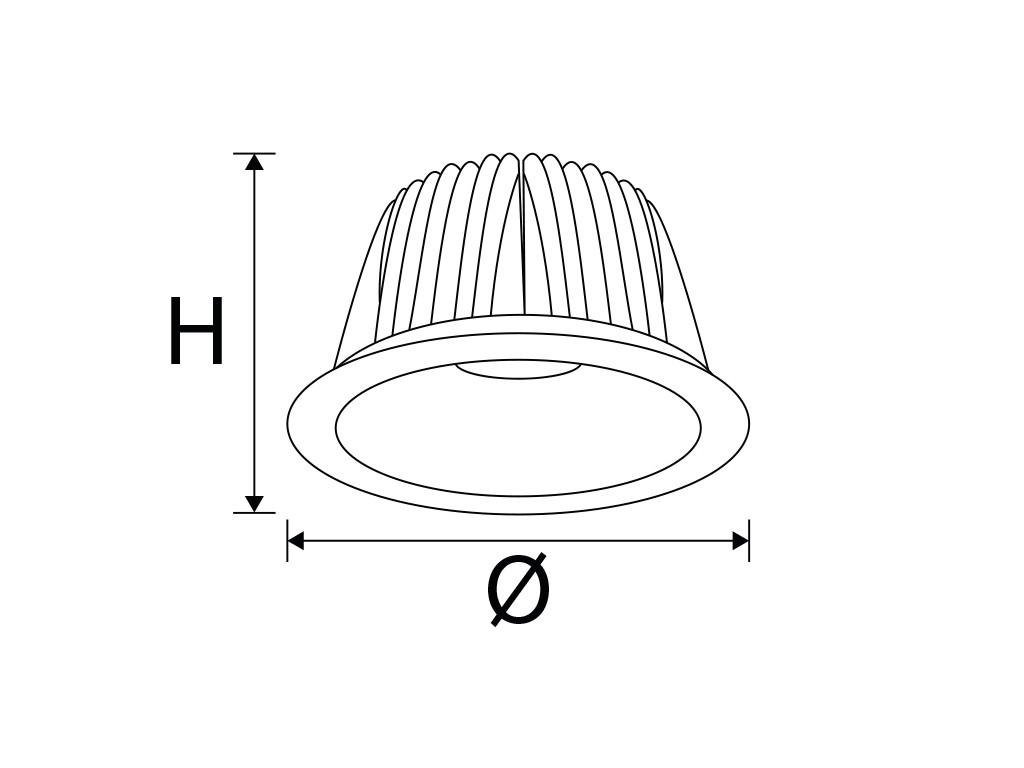

| Dimensions: | 217x121 mm |
| Installation Depth: | 121 mm |

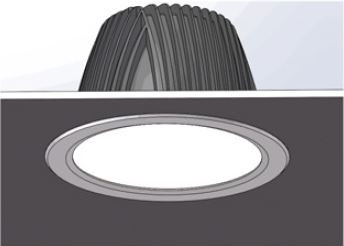

| Cut-Out Dimensions: | 200-205 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 54 (65 room side) |
| IK Code: | 08 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | IP65 raumseitig |
| Cover: | clear |
| Net Weight: | 1060 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 240x240x140 |
| Weight incl. Packaging: | 1.237 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 720x260x500 mm |
| Weight Master Package: | 13,45 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,LM80 |
| Barcode: | 4250557810638 |
| ohne Vorschaltgerät! bei Zubehör pass. EVG wählen | |
| without power supply! choose driver in accessories | |
| IP54 raumseits/roomside | |
