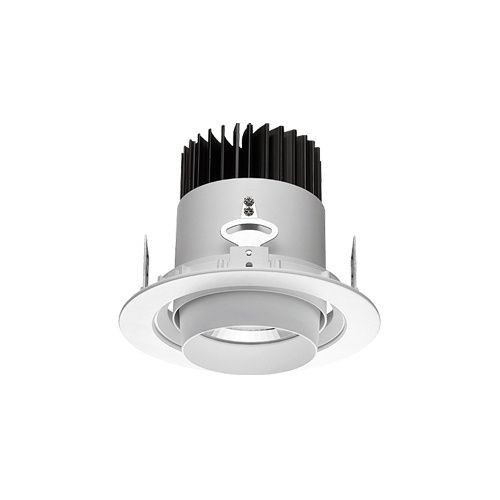

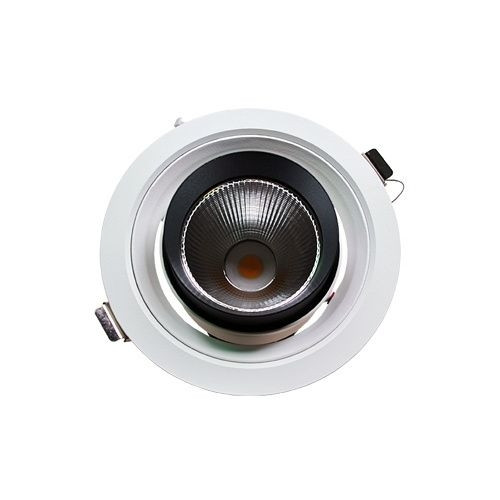

Integra R Recessed Spotlight 28-830-1930LM
Order number: LG10161
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10161
- Luminous Flux: 1930 lm
- Power Draw: 30 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 45°
- LED-Chip: Sharp COB
- Housing Color: white

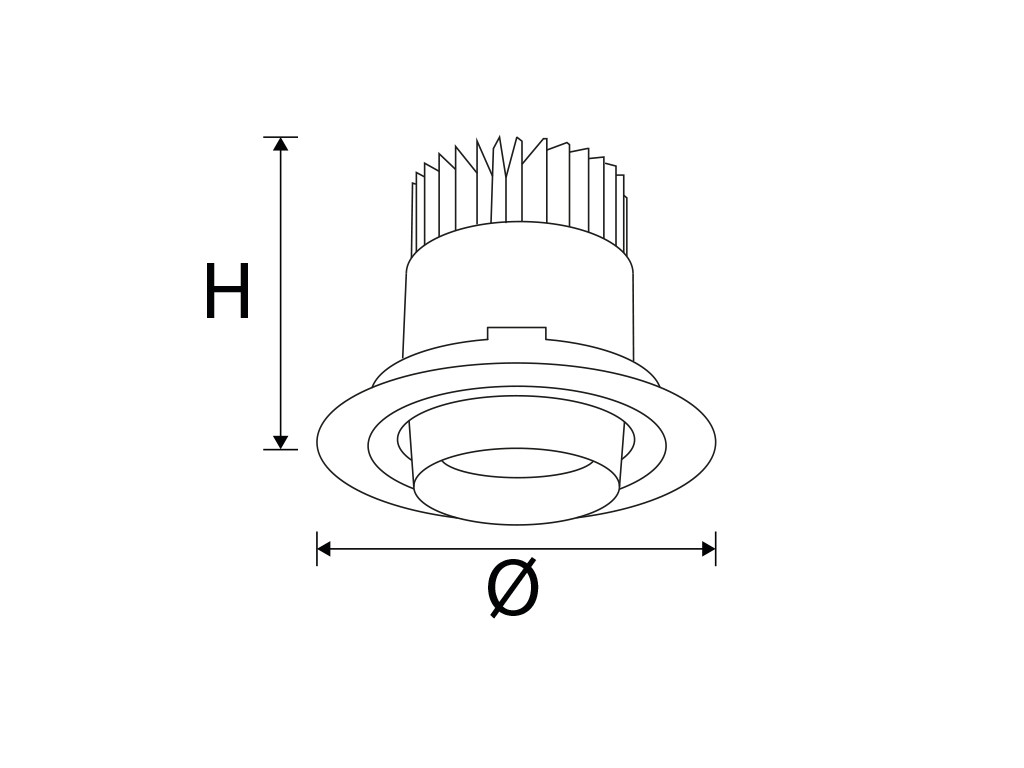

- Dimensions: 170x150 mm
- Cut-Out Dimensions: 150 mm
- Warranty: 3 years
LED Downlight Litegear® Integra LED ceiling lights are able to replace... more
Product information "Integra R Recessed Spotlight 28-830-1930LM"
LED Downlight
Litegear® Integra LED ceiling lights are able to replace conventional energy saving bulbs. They are very energy friendliy and can save up to 60% of energy costs. By the low power consumption and the high life it concerns a "Green Energy technology" product. Big heatsinks guarantee a low temperature on the LED Chip and have an excellent airstream for convectional cooling. Litegear LED downlights are available in different sizes and different colour temperatures. Due to it's extended lifespan you will save on maintenance cost as well. Compared to a Energy saving lamp a downlight can replace a downlight with 2 x ESL.
Litegear® LED lights are developed in Germany and are manufactured under stady testing and in line with the European regulations.
Related links to "Integra R Recessed Spotlight 28-830-1930LM"
Technical Details:
| Luminous Flux: | 1930 lm |
| LED Output: | 26 W |
| Light Yield: | 64 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 45 ° |

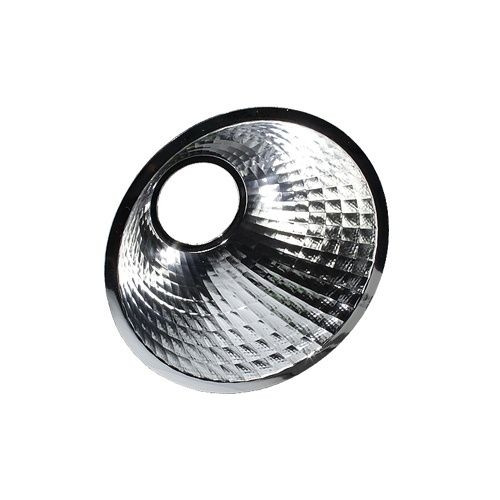

| Swappable Reflector: |  |
| Light Emission: | upward |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: | |
| Power Factor (PF): | >0.94 |
| Output of Driver: | DC 38V, 700mA |
| CC/CV: | CC |
| Switching Cycles: | >25.000 |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 170x150 mm |
| Cut-Out Dimensions: | 150 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 896 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.159 kg |
| Warranty | 3 years |
| Operating Hours: | >30.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557802640 |
