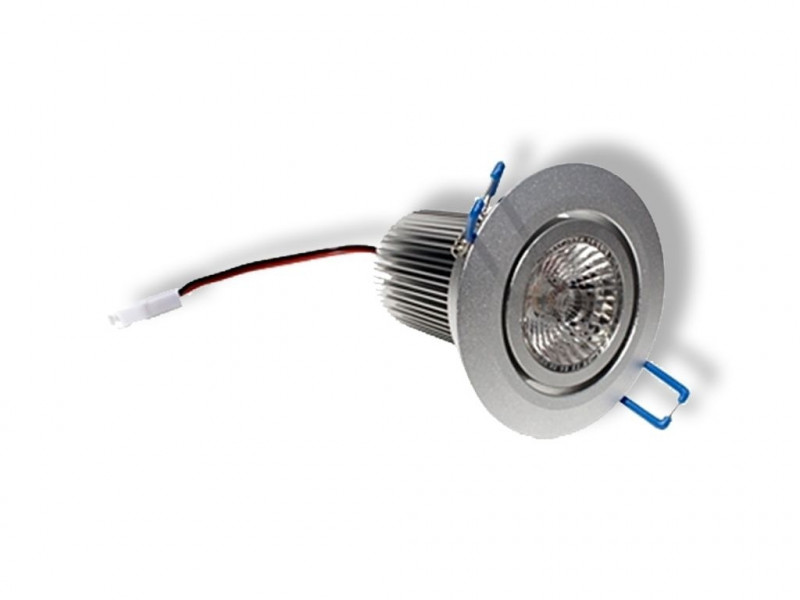

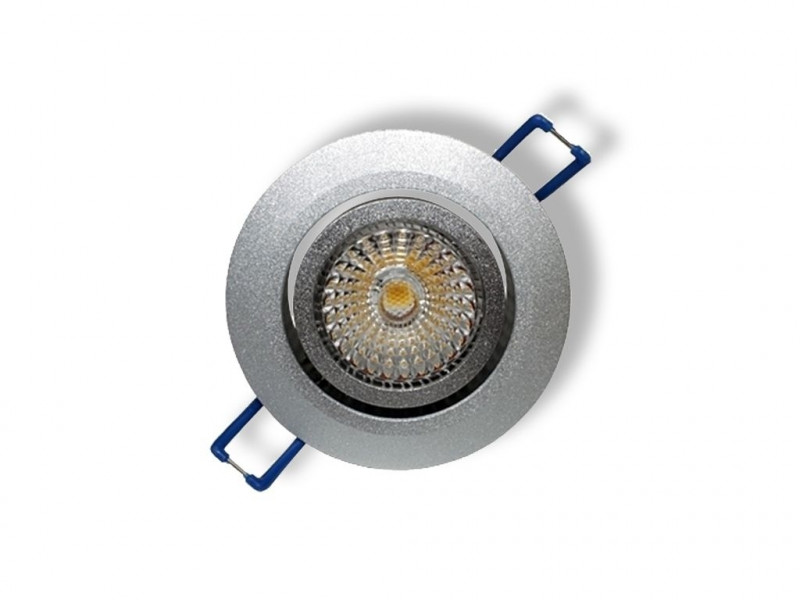

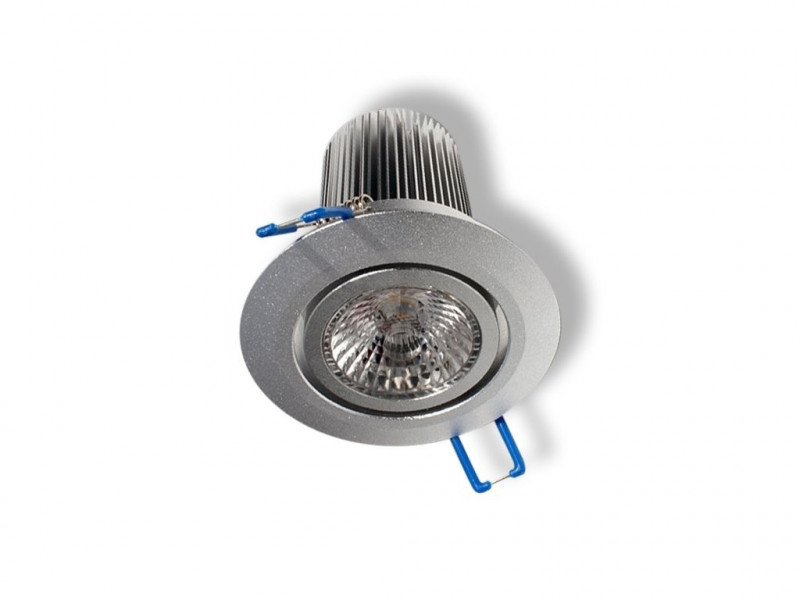

Paraflecta? Downlight 5-828-380LM
Order number: LG10257
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10257
- Luminous Flux: 380 lm
- Power Draw: 5 W
- Light Color: warmwhite (2800 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Beam Angle: 38°
- LED-Chip: Sharp COB
- Housing Color: silver

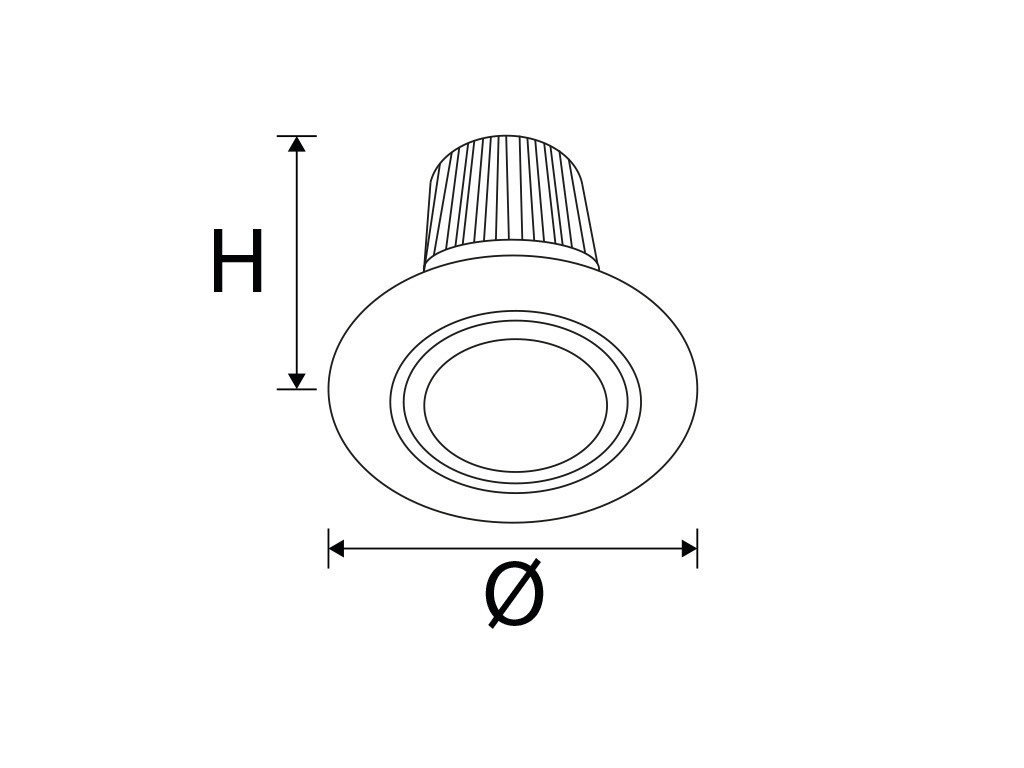

- Dimensions: 85x71 mm
- Cut-Out Dimensions: 72 mm
- Warranty: 2 years
Product information "Paraflecta? Downlight 5-828-380LM"
Related links to "Paraflecta? Downlight 5-828-380LM"
Technical Details:
| Luminous Flux: | 380 lm |
| LED Output: | 5 W |
| Light Yield: | 76 lm/W |
| Light Temperature: | 2800 K |
| Light Color: | warmwhite |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 38 ° |
| Light Emission: | downward |
| Dimmable: |  |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 5 W |
| Contains Driver: | |
| Power Factor (PF): | >0.8 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 18 - 32V, 255mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 85x71 mm |
| Installation Depth: | 71 mm |
| Cut-Out Dimensions: | 72 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range tilt: | 25 ° |
| Housing Color | silver |
| Housing Material: | aluminum |
| Net Weight: | 350 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.303 kg |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Operating Hours: | >30.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557805498 |
