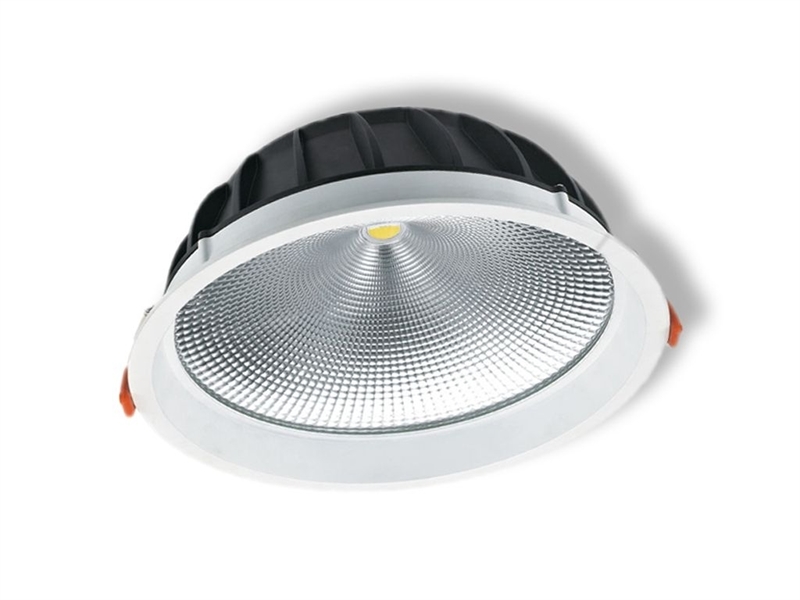

CIELLA Round COB 260 30-830-2150LM
Order number: LG12015
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

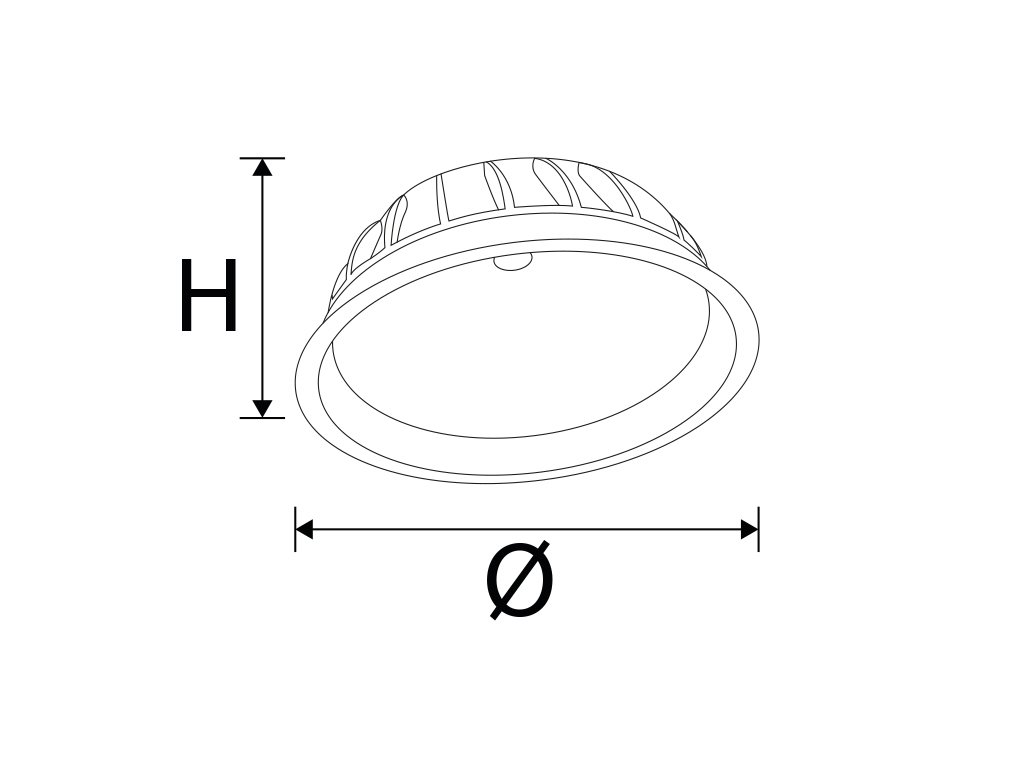

Dimensions
- Order number: : LG12015
- Luminous Flux: 2150 lm
- Power Draw: 32 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 180 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 80°
- LED-Chip: San'an COB
- Housing Color: white
- Dimensions: 265x91 mm
- Cut-Out Dimensions: 245 mm
- Warranty: 2 years
LED Downlight The installation lights of the Litegear® Ciella series can... more
Product information "CIELLA Round COB 260 30-830-2150LM"
LED Downlight
The installation lights of the Litegear® Ciella series can be easily integrated obviously into ceilings. They distinguish themselves by a high light efficiency and a long lifetime. We offer the Ciella series in different achievement classes and beam angels. Therefore the different ranges of application, as for example flat illumination can be realised for foyers, halls shops or offices. The Ciella LED series in which the light is bundled up by a reflector is suited ideally for product presentations in shops and boutiques, hotels or bars. Due to it´s very low glare it is perfect for computer screens. Litegear® Ciella has a very strong but light housing made of aluminum. A reflector will guide the light. Ciella has a very high light efficency.
Related links to "CIELLA Round COB 260 30-830-2150LM"
Technical Details:
| Luminous Flux: | 2150 lm |
| LED Output: | 30 W |
| Light Yield: | 67 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 80 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | COB |
| Ignition Time: | <1 s |
| Input Current: | AC 180 - 240V, 50/60Hz |
| Power Consumption: | 32 W |
| Contains Driver: |  |
| Driver Manufacturer: | Kegu |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 30 - 42V, 850mA |
| CC/CV: | CC |
| Input Lamp: | cable with plug |
| Switching Cycles: | >25.000 |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 265x91 mm |
| Installation Depth: | 91 mm |
| Cut-Out Dimensions: | 245 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 1069 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 280x270x95 |
| Weight incl. Packaging: | 1.208 kg |
| Content Master Package: | 14 |
| Dimensions of Master Package: | 640x670x290 mm |
| Weight Master Package: | 17,52 kg |
| Product Line: | Essential Line |
| Warranty | 2 years |
| Operating Hours: | >30.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557807447 |
