ILLUNA Square 30-830-2400lm
Order number: LG13123
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG13123
- Luminous Flux: 2400 lm
- Power Draw: 30 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Sharp COB
- Housing Color: black

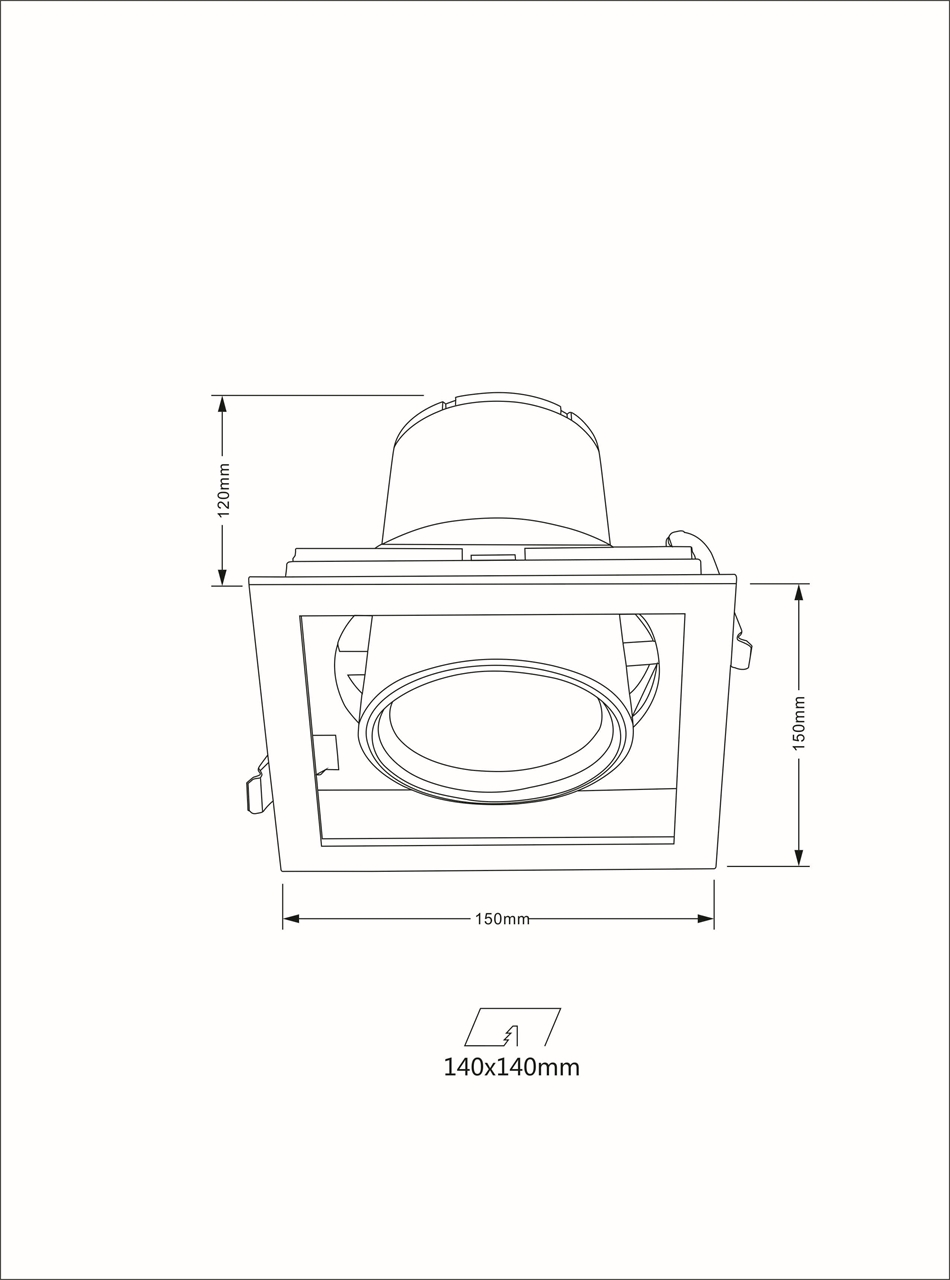

- Dimensions: 150x150x120 mm
- Cut-Out Dimensions: 140x140 mm
- Warranty: 2 years
Product information "ILLUNA Square 30-830-2400lm"
Related links to "ILLUNA Square 30-830-2400lm"
Technical Details:
| Luminous Flux: | 2400 lm |
| LED Output: | 30 W |
| Light Yield: | 80 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 36 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: |  |
| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.95 |
| CC/CV: | CC |
| Switching Cycles: | >30.000 |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 150x150x120 mm |
| Installation Depth: | 120 mm |
| Cut-Out Dimensions: | 140x140 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 867 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.944 kg |
| Product Line: | Essential Line |
| Warranty | 2 years |
| Operating Hours: | >30.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557808420 |
