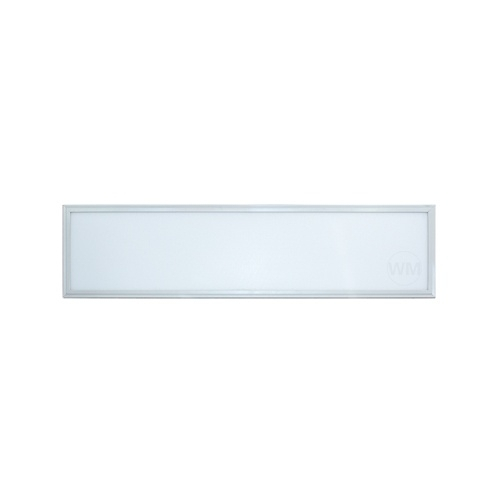

Fenestra Rectangle Advanced
Order number: LG56103
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG56103
- Luminous Flux: 4800 lm
- Power Draw: 48 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 110°
- LED-Chip: SMD 5630
- Housing Color: greywhite
- Dimensions: 1495x295x12 mm
- Warranty: 3 years
Product information "Fenestra Rectangle Advanced"
Related links to "Fenestra Rectangle Advanced"
Technical Details:
| Luminous Flux: | 4800 lm |
| LED Output: | 48 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |

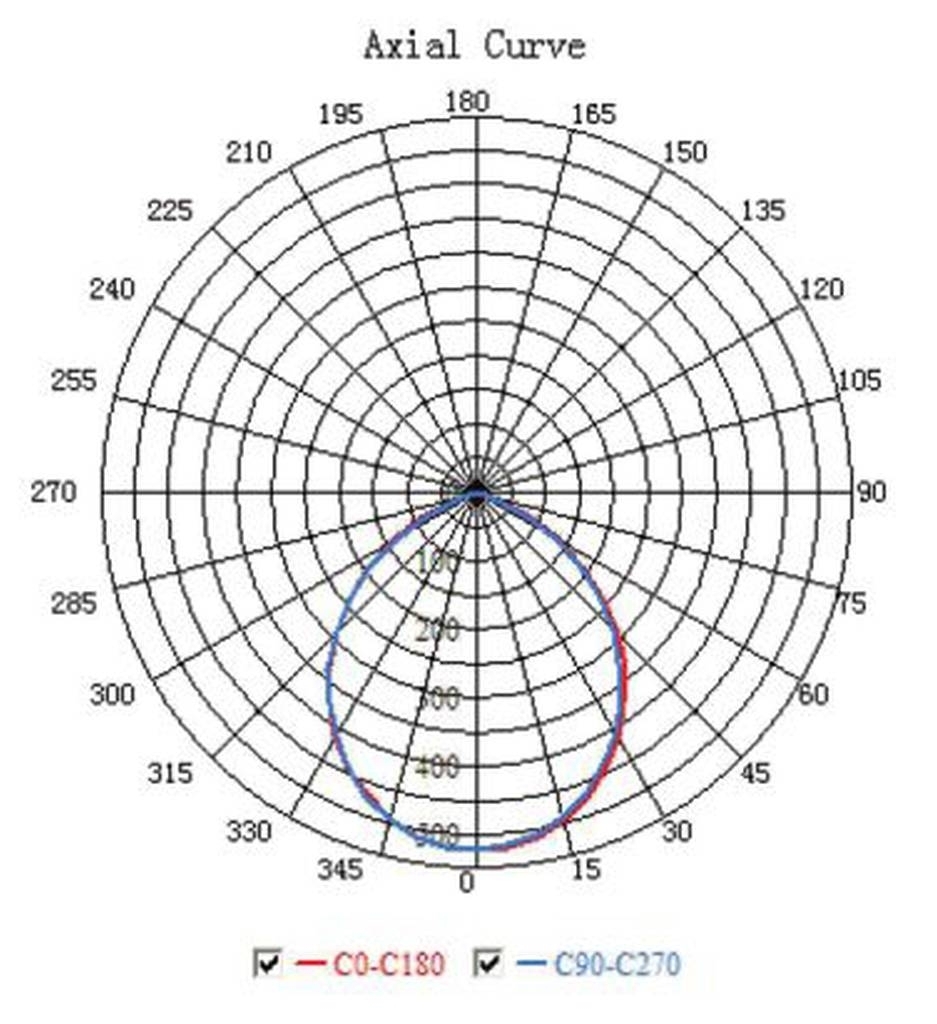

| Beam Angle: | 110 ° |
| Unified Glare Rating (UGR): | 21 |
| Light Emission: | downward |
| LED-Chip: | SMD 5630 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 48 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |

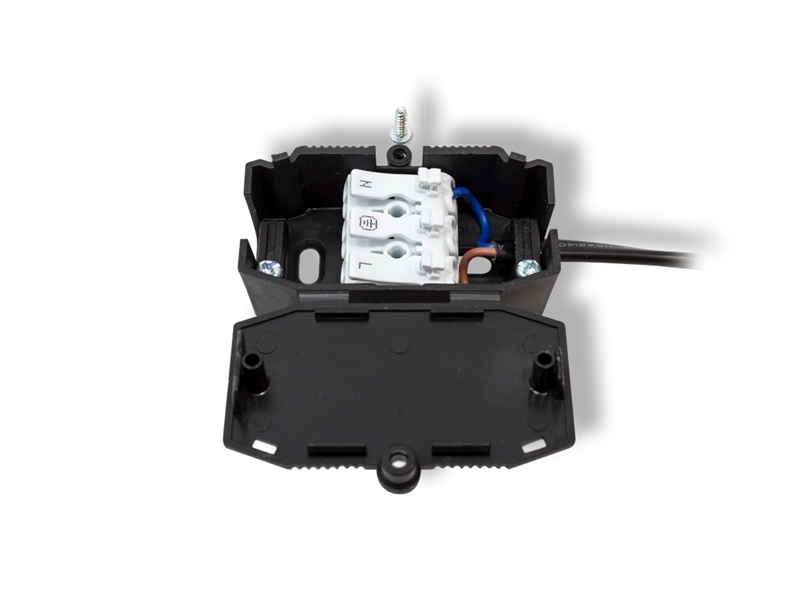

| Input Driver: | cable with flying leads |
| Output of Driver: | DC 30 - 42V, 1200mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1495x295x12 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | greywhite |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | opal |
| Net Weight: | 3913 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 5.4 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1532x180x395 mm |
| Weight Master Package: | 20, kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557807423 |
