Fenestra Value Square MKII 3030 18-830-1530LM
Order number: LG56186
Prices are only visible after login.
Last Stock
Availability: low stock

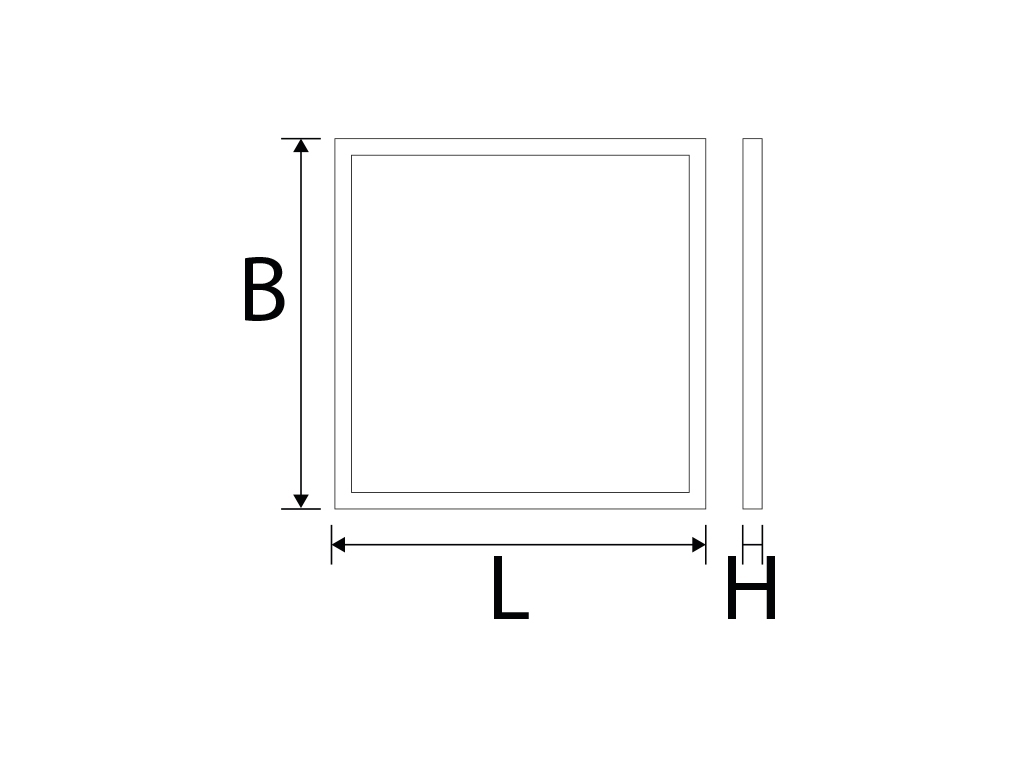

Dimensions
LED Panel The Litegear® Fenestra Value LED panels are made to be... more
Product information "Fenestra Value Square MKII 3030 18-830-1530LM"

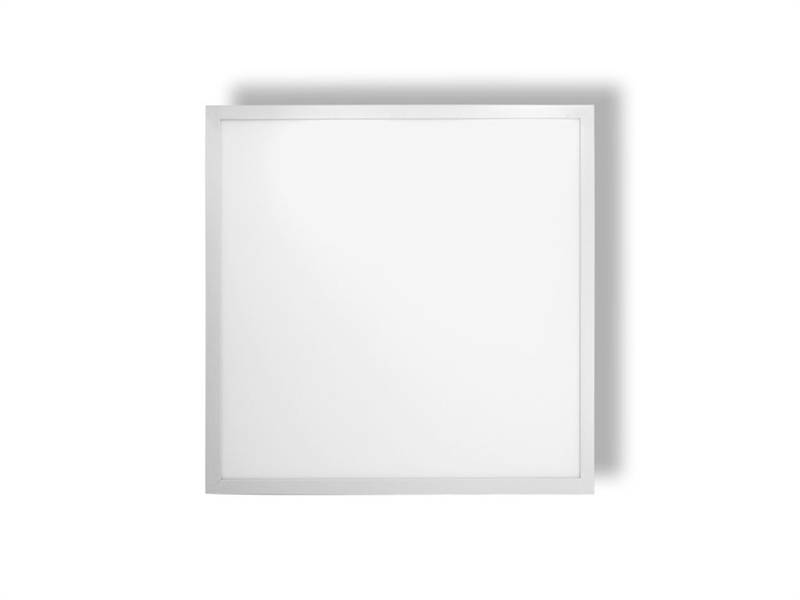

LED Panel
The Litegear® Fenestra Value LED panels are made to be installed in to ceilings or to be hung on walls or ceilings. They have a low power consumption and a long lifespan. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Our LED panels give you the imagination of a sky window with naturally light flooded rooms. Litegear® Fenestra Value LED panels are perfect for use with computer screens because the almost give no reflections. A Fenestra Value can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55% energy costs.

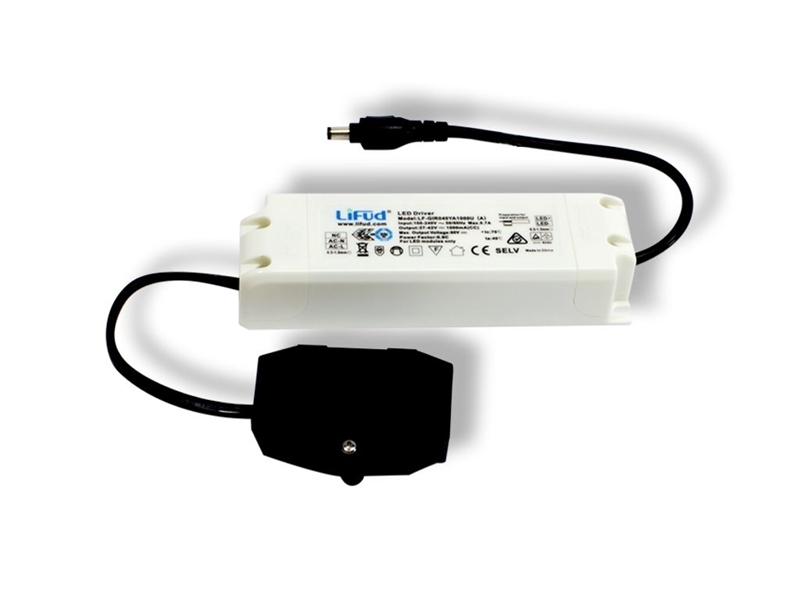

The Litegear® Fenestra Value LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer suitable LED driver . Some drivers are dimmable in brightnes via Dali, DMX or 0-10V up to the specification of the driver. Fenestra Value Panels have a very high lumen output.
Related links to "Fenestra Value Square MKII 3030 18-830-1530LM"
Technical Details:
| Luminous Flux: | 1530 lm |
| LED Output: | 18 W |
| Light Yield: | 85 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 100 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 18 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 30 - 42V, 450mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Dimensions: | 295x295x13 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| IK Code: | 06 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | opal |
| Net Weight: | 1181 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.348 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,GS,LM80 |
| Barcode: | 4250557809892 |
