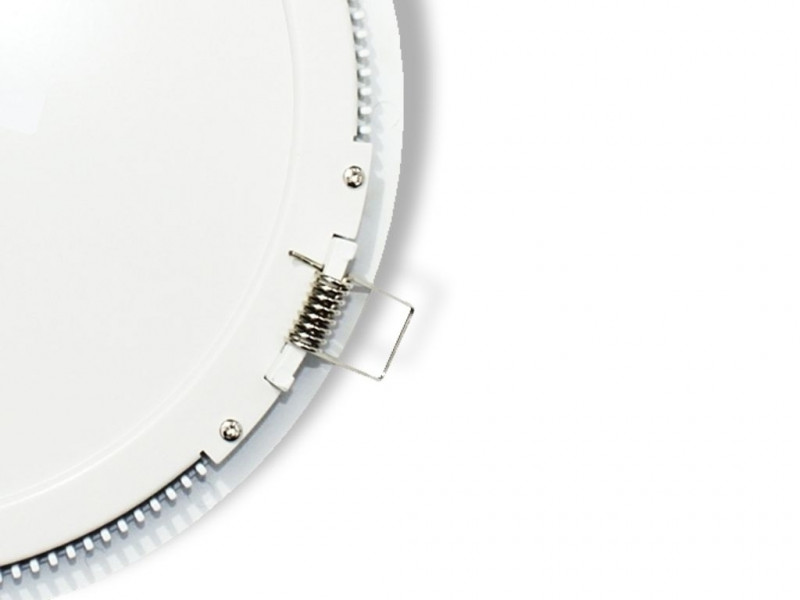

Fenestra Circle Eco 105 4-830-320LM
Order number: LG5817
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG5817
- Luminous Flux: 320 lm
- Power Draw: 4 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 85-265V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 120°
- Housing Color: white
- Dimensions: 105x20 mm
- Cut-Out Dimensions: 95 mm
- Warranty: 3 years
LED Integration Panel Litegear® Fenestra Circle LED recessed panel for... more
Product information "Fenestra Circle Eco 105 4-830-320LM"
LED Integration Panel
Litegear® Fenestra Circle LED recessed panel for installation in ceilings or plasterboard walls. Easy mounting by snap-in pen holder. Very homogeneous light distribution and exceptionally high brightness. Ideal for lighting of retail areas, lobbies, hallways or offices. Glare-free light thus also suitable for workstations.
Within our Fenestra LED panels we use only high quality LED chips from renowned manufacturers. Fenestra LED panels can be ordered in different sizes and shapes: round or square. The cooling of the LEDs are embedded laterally over an aluminum frame. Litegear® panels be equipped with a good color rendering of CRI: 80 Ra or better. Thus, the color of the illuminated products can be reproduced with high fidelity.
Related links to "Fenestra Circle Eco 105 4-830-320LM"
Technical Details:
| Luminous Flux: | 320 lm |
| LED Output: | 4 W |
| Light Yield: | 80 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Ignition Time: | <1 s |
| Input Current: | AC 85-265V, 50/60Hz |
| Power Consumption: | 4 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 18 - 22V |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >15.000 |
| Ambient Temperature (TA): | -20°C - 50°C |
| Dimensions: | 105x20 mm |
| Installation Depth: | 18 mm |
| Cut-Out Dimensions: | 95 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | opal |
| Net Weight: | 150 g |
| Type of Packaging: | box |
| Warranty | 3 years |
| Operating Hours: | >35.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557812151 |
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt more
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 95 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 50°C
Lichtstrom: 320 lm
LED-Leistung: 4 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 105x20 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 150 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 35000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 95 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 50°C
Lichtstrom: 320 lm
LED-Leistung: 4 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 105x20 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 150 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 35000 h
