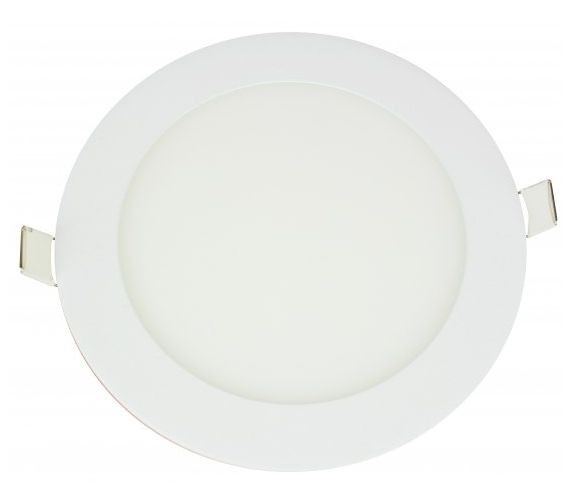

Fenestra Circle Eco 200 15-840-1200LM
Order number: LG5819
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG5819
- Luminous Flux: 1200 lm
- Power Draw: 15 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 120°
- Housing Color: white
- Dimensions: 200x20 mm
- Cut-Out Dimensions: 185 mm
- Warranty: 3 years
LED Integration Panel Litegear® Fenestra Circle ECO LED recessed... more
Product information "Fenestra Circle Eco 200 15-840-1200LM"
LED Integration Panel

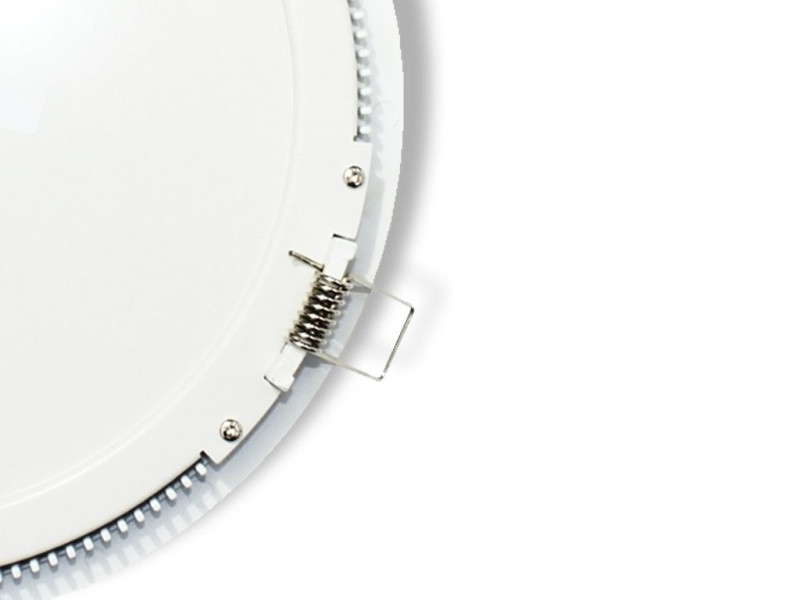

Litegear® Fenestra Circle ECO LED recessed panel for installation in ceilings or plasterboard walls. Easy mounting by snap-in pen holder. Very homogeneous light distribution and exceptionally high brightness. Ideal for lighting of retail areas, lobbies, hallways or offices. Glare-free light thus also suitable for workstations.
Within our Fenestra LED panels we use only high quality LED chips from renowned manufacturers. Fenestra LED panels can be ordered in different sizes and shapes: round or square. The cooling of the LEDs are embedded laterally over an aluminum frame. Litegear® panels be equipped with a good color rendering of CRI: 80 Ra or better. Thus, the color of the illuminated products can be reproduced with high fidelity.
Related links to "Fenestra Circle Eco 200 15-840-1200LM"
Technical Details:
| Luminous Flux: | 1200 lm |
| LED Output: | 15 W |
| Light Yield: | 80 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 15 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 30-42V, 350mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >35.000 |
| Ambient Temperature (TA): | -20°C - 50°C |
| Dimensions: | 200x20 mm |
| Installation Depth: | 18 mm |
| Cut-Out Dimensions: | 185 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | opal |
| Net Weight: | 370 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.37 kg |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557812762 |
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt more
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 185 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 50°C
Lichtstrom: 1200 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 200x20 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 370 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 185 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 50°C
Lichtstrom: 1200 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 200x20 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 370 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
