Order number: LG51022
Prices are only visible after login.
Availability: low stock
LED Power Supply Mean Well HLN Single Output 40W/60W LED Power Supply, with IP64... more

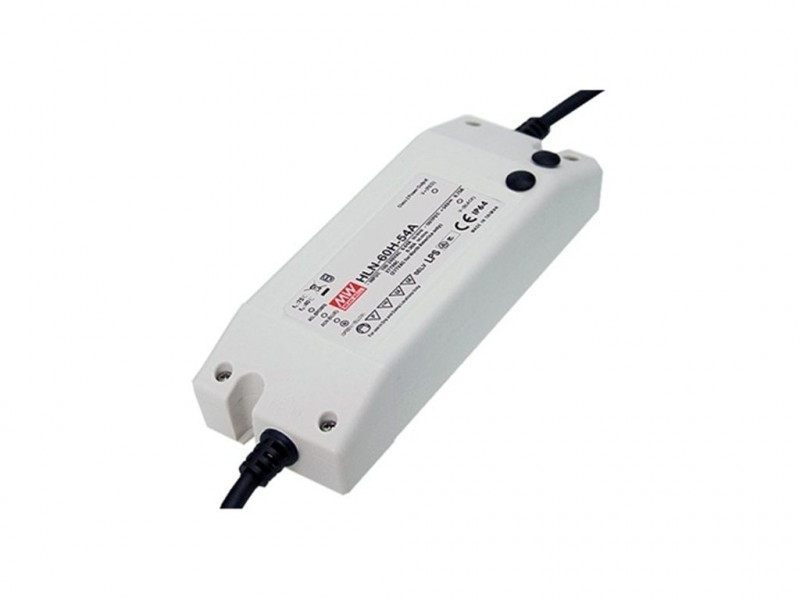

Product information "Mean Well HLN-60H-42A"
LED Power Supply
Mean Well HLN Single Output 40W/60W LED Power Supply, with IP64 rating, is designed for indoor or outdoor use. HLN is suitable for LED lighting and moving sign applications. Features include full range (up to 305VAC) universal input and built-in PFC.
- usable for all DC 42V LED bulbs
- Mains input: AC 90 - 305V, 47 - 63Hz
- Housing: Plastic
- Output voltage: DC 42V, constant current
- Output voltage range: yes (DC 40 - 46V)
- Rated power: 1,45A
- Output power: 60,9W
- Dimmable: no
- Protection: short circuit, over load, over voltage, over temperature
- Scope: LED strips and Illumination
- IP class: IP64 for indoor and outdoor use
- Safety standars: F, SELV, TÜV, CE
- Power factor: 0,95
- Efficiency: 90%
- Ambient temperature: -20° to 80°C
- Warranty: 3 years
Dimensions: 161 x 61,5 x 35 mm
Weight: 0,46 kg
Related links to "Mean Well HLN-60H-42A"
|Input Current:||AC 90 - 305V, 320mA, 47/63Hz, DC 127 - 431V|
|Power Consumption:||61 W|
|Power Factor (PF):||>0.95|
|Output of Driver:||DC 25 - 42V, 1450mA|
|Electrical Protection Class:||II|
|Compatible with Emergency Current:|
|Ambient Temperature (TA):||-40°C - 50°C|
|Net Weight:||460 g|
|Weight incl. Packaging:||0.46 kg|
|Customs Tariff Number:||8504 40 90|
|Connection:||Kabel mit offenen Enden|
