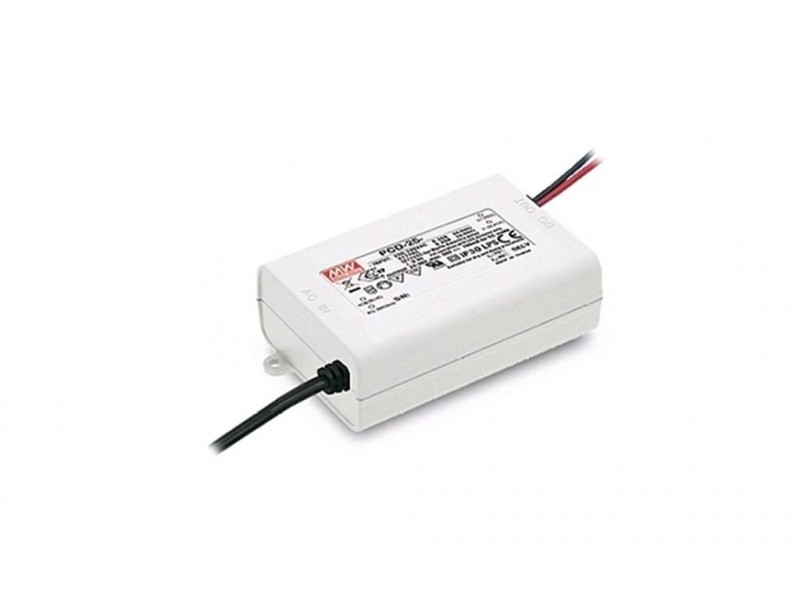

Mean Well PCD-16-350B
Order number: LG51122
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Short information
- Order number: : LG51122
- Power Draw: 17 W
- Input Current: AC 180 - 295V, 200mA, 47/63Hz
- IP Code: 42
- Housing Color: white
- Dimensions: 84x57x30 mm
- Warranty: 3 years
Power Draw
17 W
IP Code
IP 42
Dimensions
(LxBxH) in mm
84x57x30
Warranty
3 years
LED Power Supply The PCD Series Power Supplies by Mean Well were designed to... more
Product information "Mean Well PCD-16-350B"
LED Power Supply
The PCD Series Power Supplies by Mean Well were designed to support the indoor lighting market. The 16W and 25W AC phase-cut dimming LED power supplies are compatible with both leading edge and trailing edge TRIAC dimmers. Mean Well's PCD Series is designed with single stage PFC topology to meet the requirements of high power factor (PF>0.9) and EN61000-3-2 Class C (harmonic current) for the lighting industry.
Technical Details:
- Mains input: AC 180 - 295V, 47 - 63Hz
- Housing: Plastic
- Output voltage: DC 24 - 48V, constant current
- Rated power: 0.350A
- Output power: 16,8W
- Dimmable: yes with leading edge and trailing edge TRIAC dimmers
- Protection: short circuit, over temperature
- Scope: LED strips and Illumination
- IP class: IP42 for indoor use
- Safety standars: F, SELV, TÜV, CE
- Power factor: >0,90
- Efficiency: 82%
- Ambient temperature: -40° to 80°C
- Warranty: 3 years
Dimensions: 84 x 57 x 29,5 mm
Weight: 0,19kg
Related links to "Mean Well PCD-16-350B"
Technical Details:
| Input Current: | AC 180 - 295V, 200mA, 47/63Hz |
| Power Consumption: | 17 W |
| Power Factor (PF): | >0.9 |
| Output of Driver: | DC 24 - 48V, 350mA |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -30°C - 50°C |
| Dimensions: | 84x57x30 mm |
| IP Class: | 42 |
| Housing Color | white |
| Housing Material: | plastic |
| Net Weight: | 190 g |
| Weight incl. Packaging: | 0.19 kg |
| Warranty | 3 years |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,ENEC |
| Barcode: | 4250557816340 |
| Connection: | Kabel mit offenen Enden |
