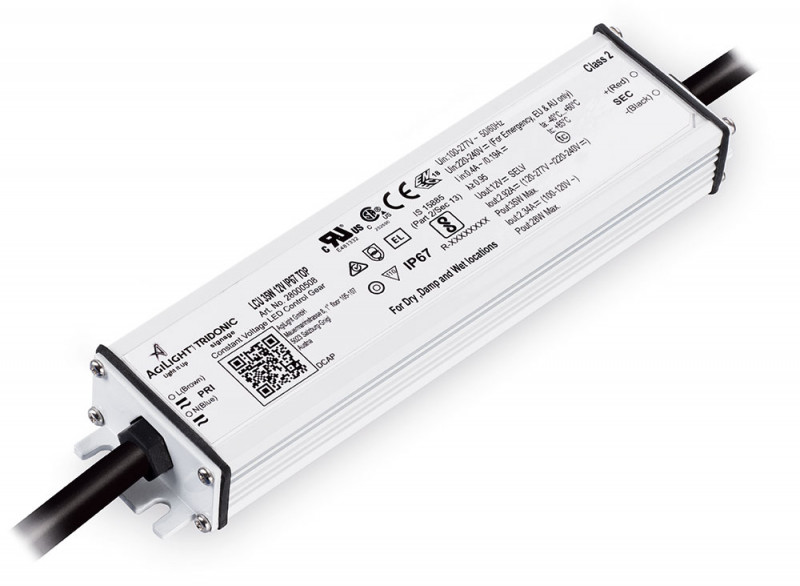

Tridonic Driver LCU 60W 24V IP67 TOP

Tridonic Driver LCU 60W 24V IP67 TOP
LG51124
Preise sind erst nach der Anmeldung sichtbar.

Last Stock

Availability: low stock

Dimensions

Dimensions
  • LG51124
  • Power Draw: 60 W
  • Input Current: AC 90 - 305V, 50/60Hz
  • IP Code: 67
  • Housing Color: silver
  • Dimensions: 240x40x21 mm
  • Warranty: 5 years

Power Draw

60 W

IP Code

IP 67

Dimensions

(LxBxH) in mm
240x40x21

Warranty

5 years

TRI LCU60W 24V Top   Product description   Nominal life-time... more
Product information "Tridonic Driver LCU 60W 24V IP67 TOP"
TRI LCU60W 24V Top

Product description

  • Nominal life-time of 50,000 h (at max ta 50 °C with a failure rate  0.2 % per 1,000 h)
  • 24 V DC output voltage
  • Cable
  • Output power 60 W
  • Type of protection IP67

Properties

  • Casing:Aluminium, white
  • Compact dimensions
  • Overload protection
  • Short-circuit protection
  • No-load protection

Technical Data

  • Rated supply voltage: 220 - 240 V
  • Input voltage AC: 120 - 277 V
  • Mains frequency: 50 / 60 Hz
  • Power factor: 0.95
  • Power factor at min. load (1): 0.75C
  • Ambient temperature ta: -40 ... +60 °C
  • Ambient temperature ta: (at life-time 50,000 h) 50 °C
  • Max. casing temperature tc: 85 °C
  • Dimensions L x W x H :240 x 40 x 21 mm
Related links to "Tridonic Driver LCU 60W 24V IP67 TOP"
Technical Details:

Input Current: AC 90 - 305V, 50/60Hz
Power Consumption: 60 W
Power Factor (PF): >0.95
Electrical Protection Class: II
Ambient Temperature (TA): -40°C - 60°C
Dimensions: 240x40x21 mm
IP Class: 67
Housing Color silver
Housing Material: metal
Type of Packaging: box
Weight incl. Packaging: 0.45 kg
Warranty 5 years
Operating Hours: >50.000 h
Disposal Obligation: ja
Certifications CE,RoHS
Connection: Kabel mit offenen Enden
