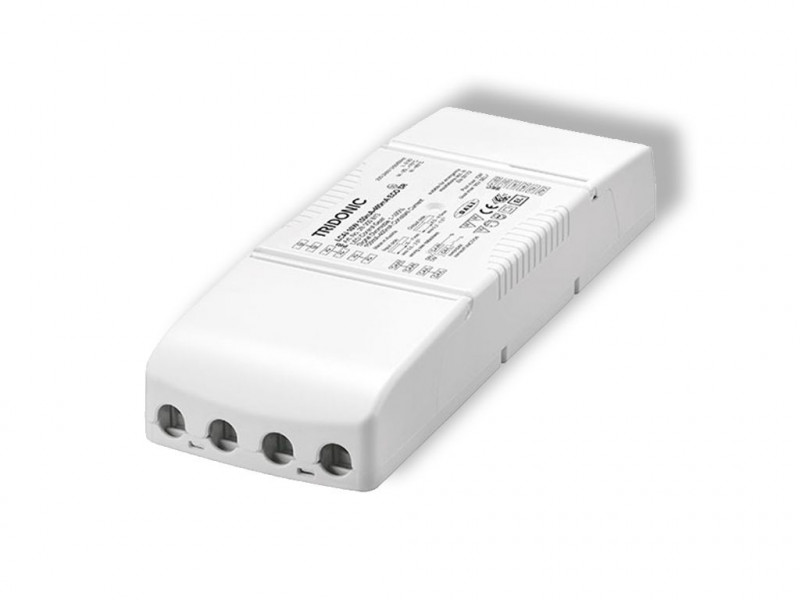

Tridonic TALEXXconverter LCA 10W 150–400mA dim one4all SR PRE

Tridonic TALEXXconverter LCA 10W 150–400mA dim one4all SR PRE
Tridonic TALEXXconverter LCA 10W 150–400mA dim one4all SR PRE
LG51141
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG51141
  • Power Draw: 13 W
  • Input Current: AC 198 - 264V, 35-60mA, 50/60Hz, DC 176 - 280
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 200x70x31 mm
  • Warranty: 5 years

Power Draw

13 W

IP Code

IP 20

Dimensions

(LxBxH) in mm
200x70x31

Warranty

5 years

Product description • Independent dimmable LED Driver • Constant... more
Product information "Tridonic TALEXXconverter LCA 10W 150–400mA dim one4all SR PRE"
Product description
Independent dimmable LED Driver
Constant current LED Driver
Output current adjustable between 150 - 400 mA
max. output power 10 W
Nominal life-time up to 100,000 h
Dimming range 1 to 100 %

Interface
DALI DEVICE type 6
DSI
switchDIM (with memory function)
corridorFUNCTION
Input temperature sensor for LED control
Technical data
Input voltage: AC 198 - 264V, 50 - 60Hz
Max.output voltage: DC max. 60 V
Output current:150 -400 mA
Output power:10 W
Casing: polycarbonate, white
Dimmable: yes (Dali)
Short-circuilt, protection, overload protection
Type of protection: IP20 for indoor
Certificates: SELV,  CE, RoHS, ENEC
Power factor: >0,85
Typ efficiency: 83%
Ambient temperature: -25° bis 70°C
5-year guarantee
Dimensions: 200x70x31 mm
Weight: 0,136kg
Related links to "Tridonic TALEXXconverter LCA 10W 150–400mA dim one4all SR PRE"
Technical Details:

Dimmable: ja
Method of Dimming: DALI,DSI,Push-Dim
Input Current: AC 198 - 264V, 35-60mA, 50/60Hz, DC 176 - 280
Power Consumption: 13 W
Driver Manufacturer: Tridonic
Power Factor (PF): >0.96
Input Driver: terminal
Output of Driver: DC 15-40V, 150-400mA
CC/CV: CC
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: II
Compatible with Emergency Current: ja
Loop-Through Cabling: ja
Ambient Temperature (TA): -25°C - 65°C
Dimensions: 200x70x31 mm
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: Through-wiring
Net Weight: 203 g
Type of Packaging: box
Weight incl. Packaging: 0.256 kg
Content Master Package: 10
Warranty 5 years
Operating Hours: >100.000 h
Disposal Obligation: ja
Certifications CE,RoHS,ENEC,SELV
Barcode: 9006210523576
Connection: Terminal

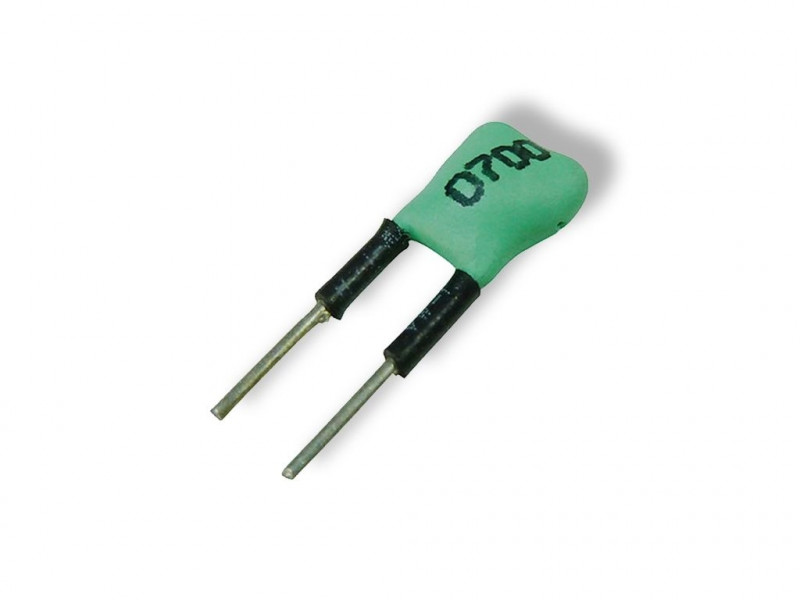

Ausgangsstromanpassung über Widerstandsplug
