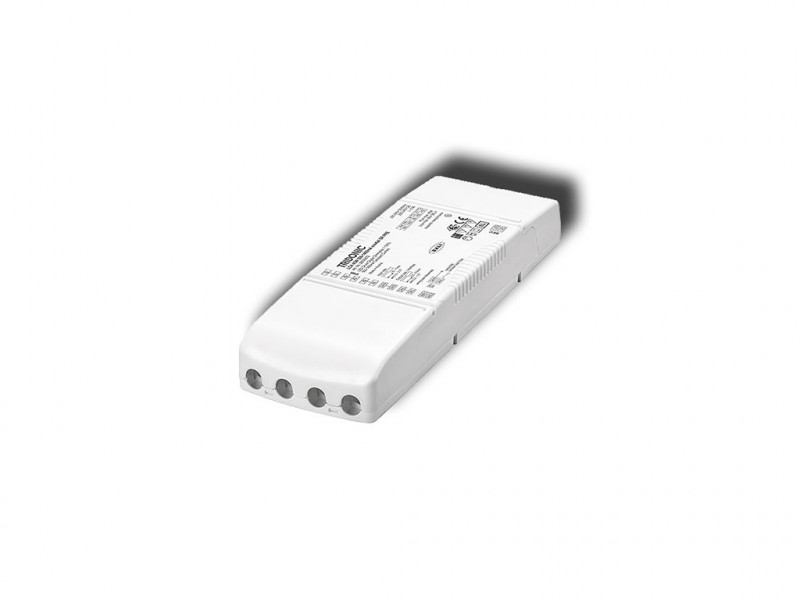

Tridonic TALEXXconverter LCA 17W 250–700mA one4all SR PRE

Tridonic TALEXXconverter LCA 17W 250–700mA one4all SR PRE
LG51138
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG51138
  • Power Draw: 23 W
  • Input Current: AC 198 - 264V, 65-95mA, 50/60Hz, DC 176 - 280
  • IP Code: 20
  • Housing Color: white
  • Warranty: 5 years

Power Draw

23 W

IP Code

IP 20

Warranty

5 years

LED Constant Current Power Supply   The Tridonic TALEXConverter is an extremely... more
Product information "Tridonic TALEXXconverter LCA 17W 250–700mA one4all SR PRE"
LED Constant Current Power Supply

The Tridonic TALEXConverter is an extremely versatile power supply for all kinds of LED chips.

Product Features:
  • usable for all LED arrays
Technical Details:
  • Mains input: AC 198 - 264V, 50 - 60Hz
  • Housing: Plastic
  • Output voltage: DC max. 60V
  • Rated power: 250 - 700mA, constant current
  • Output power: 17W
  • Dimmable: yes (Dali, DSI, switch Dim)
  • Protection: short circuit, over load, over voltage
  • IP class: IP20 for indoor
  • Safety standars: SELV, CE, ENEC
  • Power Faktor: >0,98
  • Efficiency: 86%
  • Ambient temperature: -40° to 80°C
  • Warranty: 5 years
Dimensions: 200 x 70 x 31 mm
Weight: 0,278kg
Related links to "Tridonic TALEXXconverter LCA 17W 250–700mA one4all SR PRE"
Technical Details:

Dimmable: ja
Method of Dimming: DALI,DSI,Push-Dim
Input Current: AC 198 - 264V, 65-95mA, 50/60Hz, DC 176 - 280
Power Consumption: 23 W
Driver Manufacturer: Tridonic
Power Factor (PF): >0.98
Input Driver: terminal
Output of Driver: DC 15-50V, 250-700mA
CC/CV: CC
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: II
Compatible with Emergency Current: ja
Loop-Through Cabling: ja
Ambient Temperature (TA): -25°C - 50°C
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: Through-wiring
Net Weight: 203 g
Weight incl. Packaging: 0.281 kg
Content Master Package: 10
Warranty 5 years
Operating Hours: >100.000 h
Certifications CE,RoHS,ENEC,SELV
Barcode: 9006210523644
Ausgangsstromanpassung über Widerstandsplug
