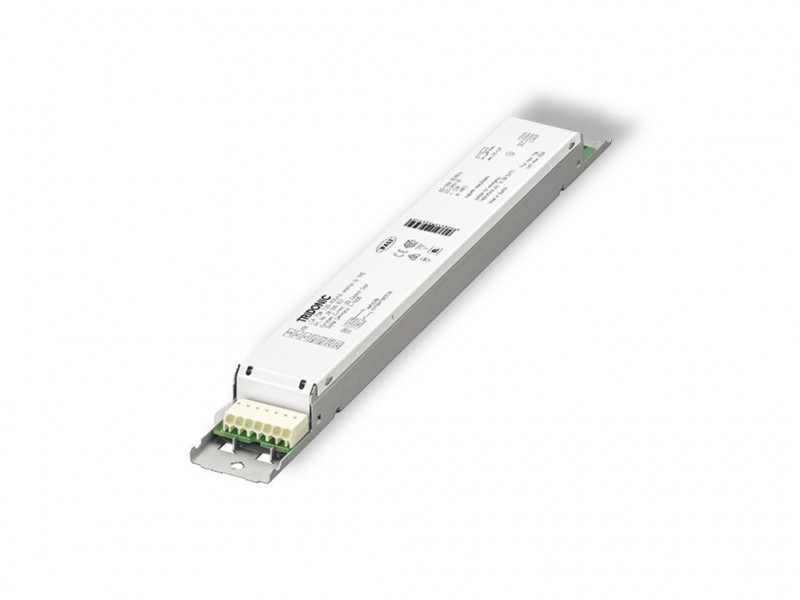

Tridonic TALEXXconverter LCA one4all lp PRE

Tridonic TALEXXconverter LCA one4all lp PRE
LG51145
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

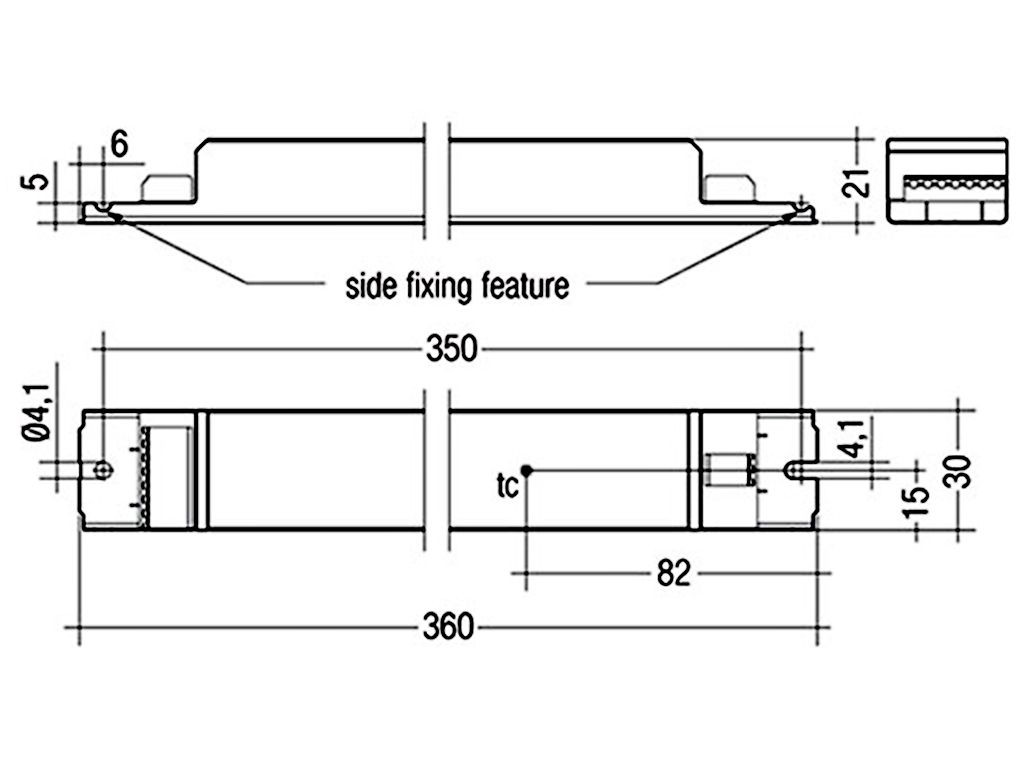

Dimensions

Dimensions
  • LG51145
  • Power Draw: 57 W
  • Input Current: AC 220 - 240V, 50/60Hz, DC 176 - 280V
  • IP Code: 20
  • LED-Chip: COB
  • Housing Color: white
  • Dimensions: 280x30x21 mm
  • Warranty: 5 years

Power Draw

57 W

IP Code

IP 20

Dimensions

(LxBxH) in mm
280x30x21

Warranty

5 years

Product description   Dimmable built-in constant current LED Driver... more
Product information "Tridonic TALEXXconverter LCA one4all lp PRE"
Product description

  • Dimmable built-in constant current LED Driver
  • Output current adjustable between 900 - 1,800 mA
  • Max. output power 75 W
  • Up to 91 % efficiency
  • Power input on stand-by < 0.15 W
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Housing properties

  • Low profile metal casing with white cover
  • Type of protection IP20

Interfaces

  • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 0° push terminals

Functions

  • Adjustable output current (DALI, ready2mains, I-select 2)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Suitable for emergency escape lighting systems acc. to EN 50172

Technical data:

  • Rated supply voltage: 220 - 240 V
  • AC voltage range : 198 - 264 V
  • DC voltage range: 176 - 280 V
  • Mains frequency: 0 / 50 / 60 Hz
  • Overvoltage protection: 320 V AC, 48 h
  • Typ. current (at 230 V, 50 Hz, full load): 228 - 363 mA
  • Typ. current (220 V, 0 Hz, full load, 15 % dimming level): 50 - 71 mA
  • Leakage current (at 230 V, 50 Hz, full load): < 550 µA
  • Max. input power: 83W
  • Typ. efficiency (at 230 V, 50 Hz, full load): 91%
  • λ (at 230 V, 50 Hz, full load): 0,98
  • Typ. power input on stand-by: < 0.15 W
  • Typ. input current in no-load operation: 33 mA
  • Typ. input power in no-load operation: 0,41W
  • In-rush current (peak / duration): 31.9 A / 230 µs
  • THD (at 230 V, 50 Hz, full load): < 8.2 %
  • Time to light (at 230 V, 50 Hz, full load): < 0.6 s
  • Time to light (DC mode): < 0.3 s
  • Switchover time (AC/DC): < 0.3 s
  • Turn off time (at 230 V, 50 Hz, full load): < 4 ms
  • Output current tolerance: &plusm; 3 %
  • Max. output current peak (non-repetitive):  output current + 40%
  • Output LF current ripple (< 120 Hz): &plusm; 5 %
  • Max. output voltage (no-load voltage): 60 V
  • Dimming range: 1 - 100 %
  • Mains surge capability (between L - N): 1 kV
  • Mains surge capability (between L/N - PE): 2 kV
  • Surge voltage at output side (against PE): < 500 V
  • Dimensions L x W x H: 360 x 30 x 21 mm
Related links to "Tridonic TALEXXconverter LCA one4all lp PRE"
Technical Details:

Dimmable: ja
Method of Dimming: DALI,DSI,Push-Dim
LED-Chip: COB
Input Current: AC 220 - 240V, 50/60Hz, DC 176 - 280V
Power Consumption: 57 W
Power Factor (PF): >0.98
Input Driver: terminal
Output of Driver: DC 50 - 140V
CC/CV: CC
Output Current Adjustable: ja
Electrical Protection Class: I
Compatible with Emergency Current: ja
Ambient Temperature (TA): -25°C - 60°C
Dimensions: 280x30x21 mm
IP Class: 20
Housing Color white
Housing Material: metal
Net Weight: 207 g
Type of Packaging: box
Weight incl. Packaging: 0.256 kg
Content Master Package: 10
Warranty 5 years
Operating Hours: >100.000 h
Disposal Obligation: ja
Certifications CE,RoHS,ENEC
Barcode: 9006210522661
Connection: Klemme
