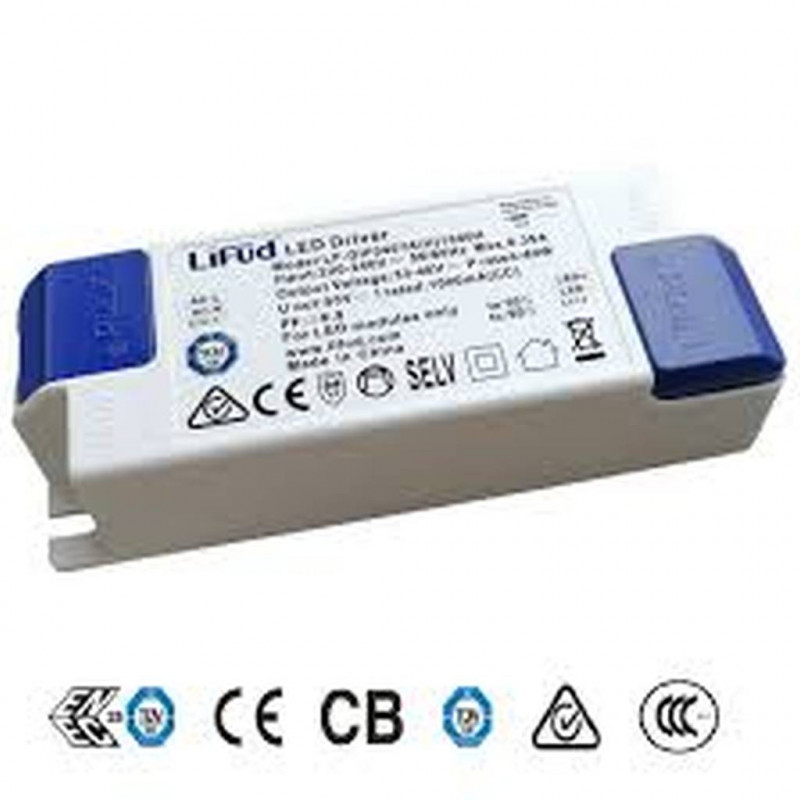

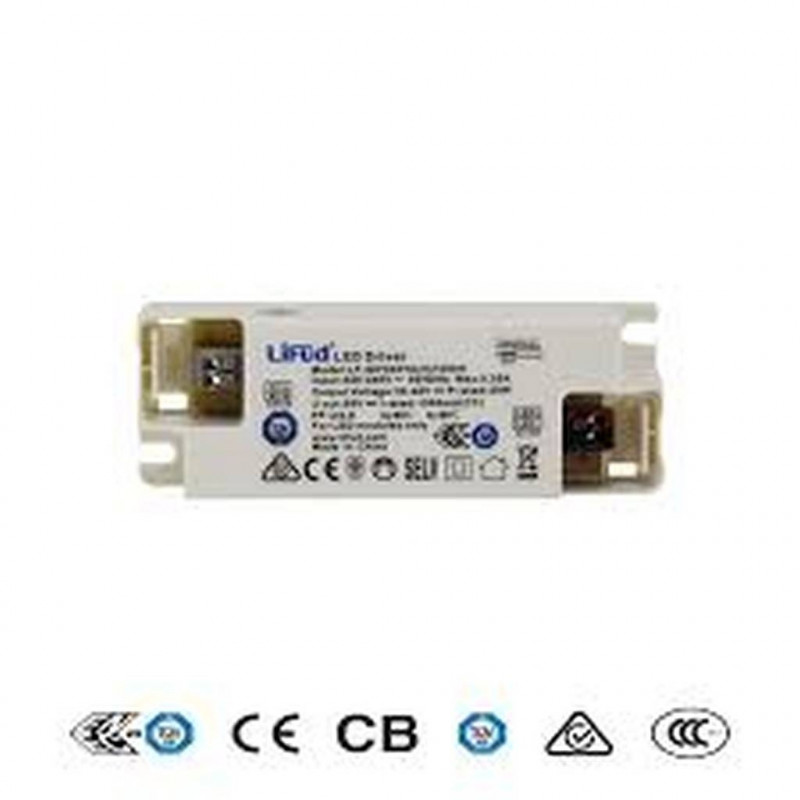

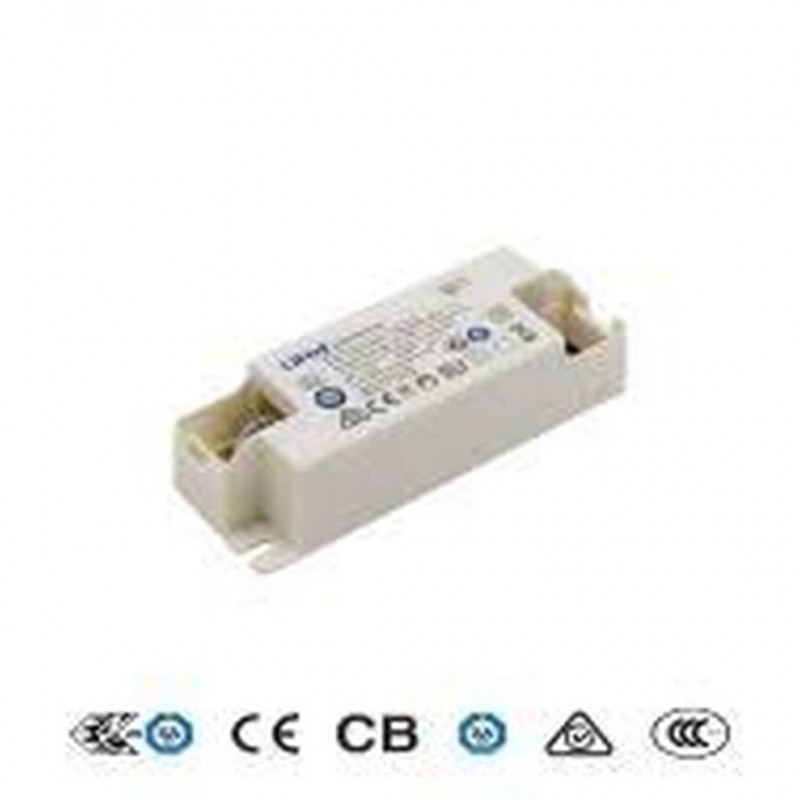

Lifud GIF040YS(H)900H
Order number: LG51323
Short information
- Order number: : LG51323
- Power Draw: 36 W
- Input Current: AC 220 - 240V, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 115x41x28 mm
- Warranty: 5 years
Power Draw
36 W
IP Code
IP 20
Dimensions
(LxBxH) in mm
115x41x28
Warranty
5 years
LED Power Supply LF-GIF040YA(H) series is a DC constant current mode output LED... more
Product information "Lifud GIF040YS(H)900H"
LED Power Supply
LF-GIF040YA(H) series is a DC constant current mode output LED driver.
The electronic power supply operates from 180 to 264VAC max 50/60Hz and offers different current levels in this series up to 1050mA. Thanks to the high efficiency up to 90%, with
the fanless design, the entire series is able to operate for -30C° ~+50C° case temperature under free air convection.
Suitable for LED indoor lighting
Applications:
- LED office lighting
- LED architectural lighting
- LED panel lighting
Product Features:
- Constant Current mode output
- Plastic housing with class II design
- Built-in active PFC function
- Standby power consumption <0.3W
- TüV Süd ENEC certified
- up to 50.000 hours lifespan
- EN55015, EN61000-3-2, EN61347, GB19510, EN61000-4-2,3,4,5,6,8,11; EN61547
Related links to "Lifud GIF040YS(H)900H"
Technical Details:
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | 36 W |
Power Factor (PF): | >0.93 |

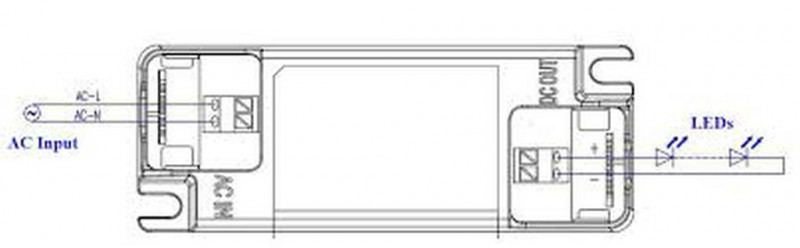

Input Driver: | terminal |
Output of Driver: | DC 33-40V, 900mA |
CC/CV: | CC |
Switching Cycles: | >100.000 |
Electrical Protection Class: | II |
Ambient Temperature (TA): | -30°C - 50°C |

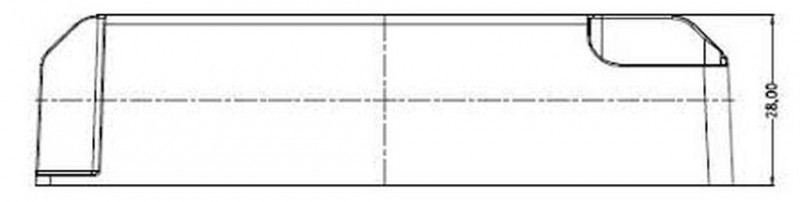

Dimensions: | 115x41x28 mm |
IP Class: | 20 |
Housing Color | white |
Housing Material: | plastic |
Net Weight: | 100 g |
Type of Packaging: | box |
Weight incl. Packaging: | 0.098 kg |
Dimensions of Master Package: | 390x290x210 mm |
Product Line: | Advance Line |
Warranty | 5 years |

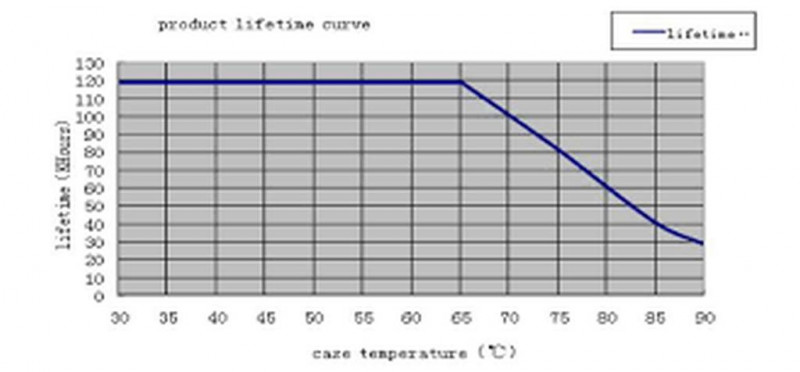

Operating Hours: | >50.000 h TC<80°C |
Disposal Obligation: | |
Customs Tariff Number: | 8504408390 |
Certifications | CE,TÜV,SELV,D |
Barcode: | 4250557816715 |
Idealer Treiber für LED-Panels und -Downlights |
