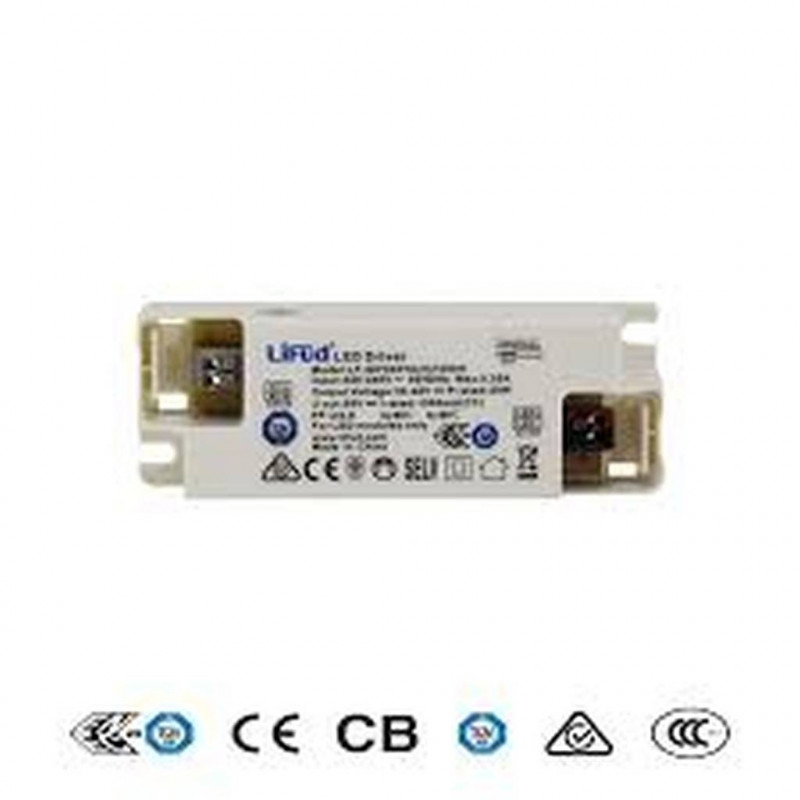

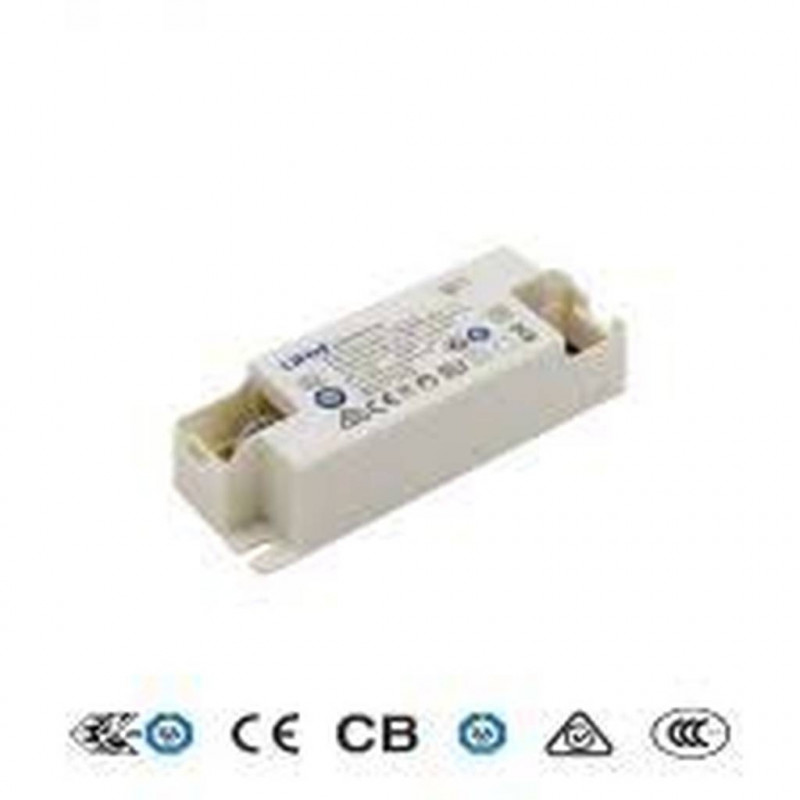

Lifud GIF030YA(H)0650H

LG51321
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG51321
  • Power Draw: 26 W
  • Input Current: AC 220 - 240V, 50/60Hz
  • IP Code: 20
  • Housing Color: white

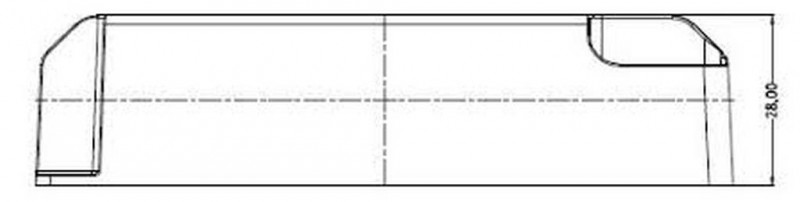

  • Dimensions: 115x41x28 mm
  • Warranty: 5 years

Power Draw

26 W

IP Code

IP 20

Dimensions

(LxBxH) in mm
115x41x28

Warranty

5 years

LED Power Supply   LF-GIF040YA(H) series is a DC constant current mode output LED... more
Product information "Lifud GIF030YA(H)0650H"
LED Power Supply

LF-GIF040YA(H) series is a DC constant current mode output LED driver.
The electronic power supply operates from 180 to 264VAC max 50/60Hz and offers different current levels in this series up to 1050mA. Thanks to the high efficiency up to 90%, with
the fanless design, the entire series is able to operate for -30C° ~+50C°  case temperature under free air convection.
Suitable for LED indoor lighting

Applications:

  • LED office lighting
  • LED architectural lighting
  • LED panel lighting


Product Features:

  • Constant Current mode output
  • Plastic housing with class II design
  • Built-in active PFC function
  • Standby power consumption <0.3W
  • TüV Süd ENEC certified
  • up to 50.000 hours lifespan
  • EN55015, EN61000-3-2, EN61347, GB19510, EN61000-4-2,3,4,5,6,8,11; EN61547
Related links to "Lifud GIF030YA(H)0650H"
Technical Details:

Method of Dimming: 1-10V,DALI,PWM,Push-Dim
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 26 W
Power Factor (PF): >0.94
Input Driver: terminal
Output of Driver: DC 33 - 40V, 650mA
CC/CV: CC
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -30°C - 50°C
Dimensions: 115x41x28 mm
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: Selectable output current
Net Weight: 100 g
Type of Packaging: box
Content Master Package: 84
Dimensions of Master Package: 390x290x210 mm
Weight Master Package: 8,72 kg
Product Line: Advance Line
Warranty 5 years

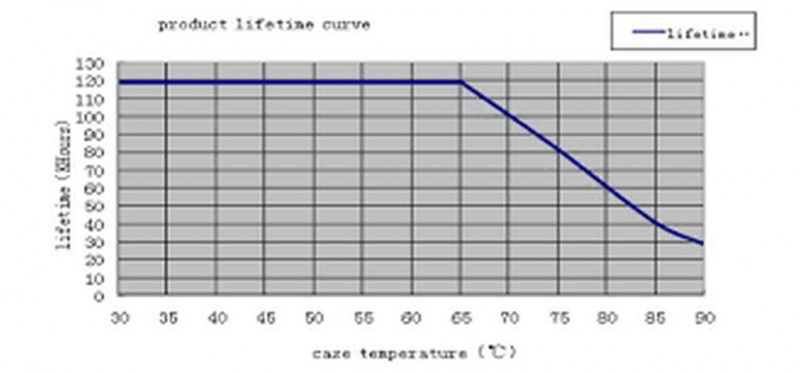

Operating Hours: >50.000 h TC<80°C
Disposal Obligation: ja
Customs Tariff Number: 8504401400
Certifications CE,RoHS,TÜV,EMC,LVD,SELV
Barcode: 4250557816692
ideal für Panels und Downlights
