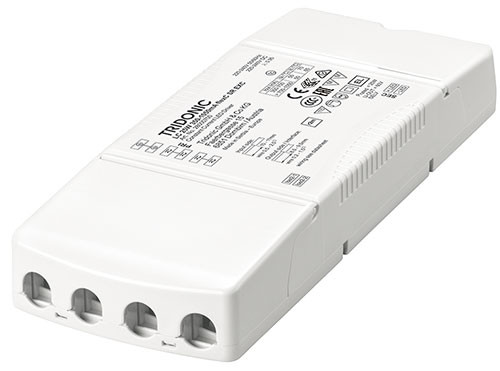

Tridonic TALEXXconverter LC 25W 350–1050mA flexC SR EXC

LG51171
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

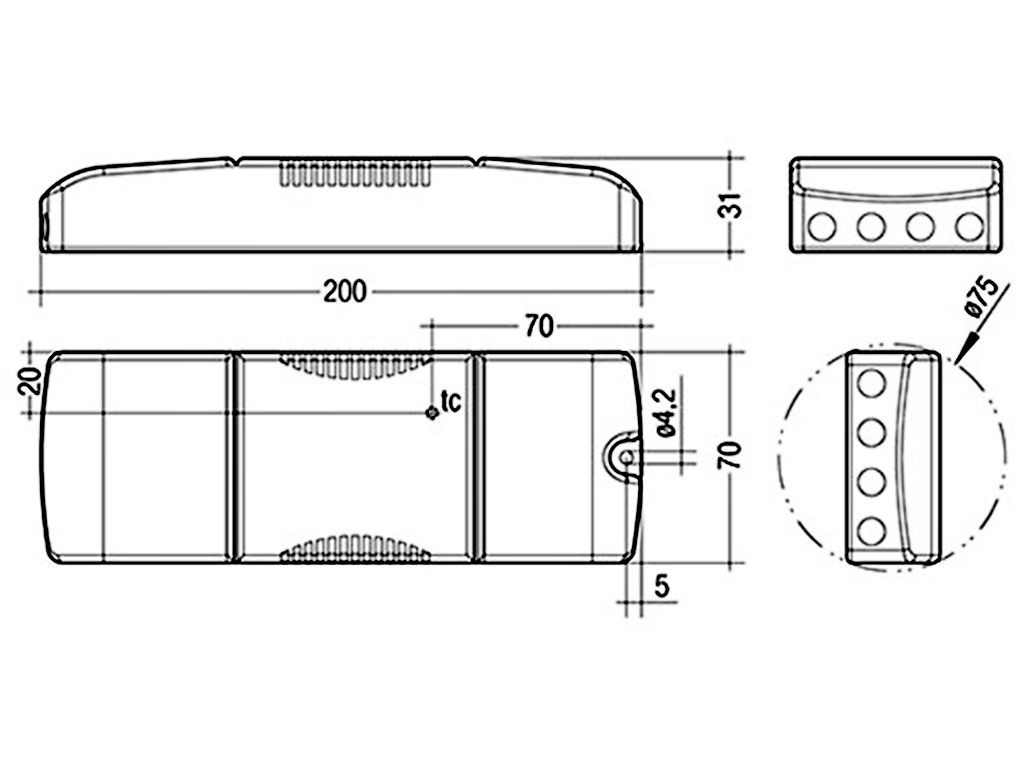

Dimensions

Dimensions
  • LG51171
  • Power Draw: 30 W
  • Input Current: AC 198 - 264V, 133mA, 50/60Hz, DC 176 - 280V
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 200x70x31 mm
  • Warranty: 5 years

Power Draw

30 W

IP Code

IP 20

Dimensions

(LxBxH) in mm
200x70x31

Warranty

5 years

Product description:   Constant current LED Driver Dimmable via... more
Product information "Tridonic TALEXXconverter LC 25W 350–1050mA flexC SR EXC"
Product description:

  • Constant current LED Driver
  • Dimmable via ready2mains™ Gateway
  • Dimming range 15 to 100 % (dependig on load)
  • Can be either used build-in or independent with clip-on strain-relief (see accessory)
  • Adjustable output current between 350 and 1050 mA via ready2mains™ Programmer or I-select 2 plugs
  • Max. output power 25 W
  • Up to 86 % efficiency
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Strain relief with loop through function

Interfaces

  • ready2mains™ (configuration and dimming via mains)
  • Terminal blocks: 45° push terminals

Functions

  • Adjustable output current in 1-mA-steps (ready2mains™, I-select 2)
  • Dimmable via ready2mains™ interface
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to high efficiency and dimming via ready2mains™
  • Flexible configuration via ready2mains™ and I-select 2
  • Reliability proven by life-time up to 100,000 h and 5-year guarantee
  • No tools required for installation

Typical applications

  • For downlight, spotlight and decorative applications

Technical Details:

  • Rated supply voltage: 220 - 240 V
  • AC voltage range: 198 - 264 V
  • DC voltage range: 176 - 280 V
  • Mains frequency: 0 / 50 / 60 Hz
  • Overvoltage protection: 320 V AC, 48 h
  • Typ. rated current (at 230 V, 50 Hz, full load) (1) (2): 56,8 mA
  • Typ. current (220 V, 0 Hz, full load, 50 % dimming level) (2): 54,3 mA
  • Leakage current (at 230 V, 50 Hz, full load) (1) (2): < 250 µA
  • Max. input power: 12 W
  • Typ. efficiency (at 230 V, 50 Hz, full load) (2): 81 %
  • λ (at 230 V, 50 Hz, full load) (1): 0.915
  • Typ. input current in no-load operation: 12 mA
  • Typ. input power in no-load operation: 0.6 W
  • In-rush current (peak / duration): 17 A / 231 s
  • THD (at 230 V, 50 Hz, full load) (1): < 10 %
  • Time to light (at 230 V, 50 Hz, full load) (1): < 500 ms
  • Time to light (DC mode): < 500 ms
  • Switchover time (AC/DC): < 0.2 s
  • Turn off time (at 230 V, 50 Hz, full load): < 50 ms
  • Output current tolerance (1) (3): &plusm; 5 %
  • Max. output current peak (non-repetitive):  output current + 35 %
  • Output LF current ripple (< 120 Hz): &plusm; 5 %
  • Max. output voltage (no-load voltage): 60 V
  • Dimming range (4): 15 - 100 %
  • Mains surge capability (between L - N): 1 kV
  • Mains surge capability (between L/N - PE): 2 kV
  • Burst / surge peaks output side against PE: < 500 V
  • Dimensions L x W x H: 200 x 70 x 31 mm




(1)Valid at 100 % dimming level.
(2)Depending on the selected output current.
(3)Output current is mean value.
(4)Depending on the connected load.
Related links to "Tridonic TALEXXconverter LC 25W 350–1050mA flexC SR EXC"
Technical Details:

Input Current: AC 198 - 264V, 133mA, 50/60Hz, DC 176 - 280V
Power Consumption: 30 W
Driver Manufacturer: Tridonic
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 20-50V, 350-1050mA
CC/CV: CC
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: II
Compatible with Emergency Current: ja
Loop-Through Cabling: ja
Ambient Temperature (TA): -25°C - 50°C
Dimensions: 200x70x31 mm
IP Class: 20
Housing Color white
Housing Material: Polycarbonat
Special Feature of Housing: Through-wiring
Net Weight: 186 g
Type of Packaging: box
Content Master Package: 10
Warranty 5 years
Operating Hours: >100.000 h
Disposal Obligation: ja
Customs Tariff Number: 8504408390
Certifications CE,ENEC,SELV
Barcode: 9006210525747
Ausgangsstromanpassung über Widerstandsplug
