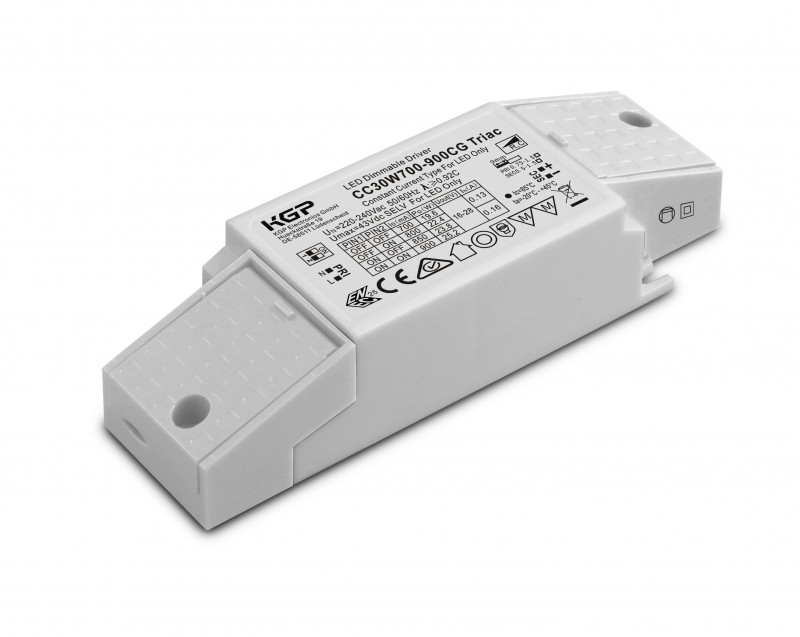

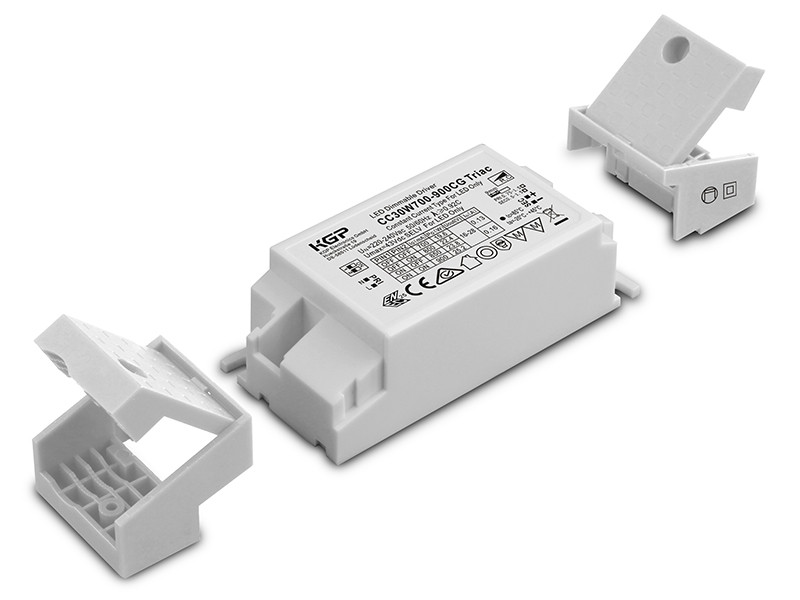

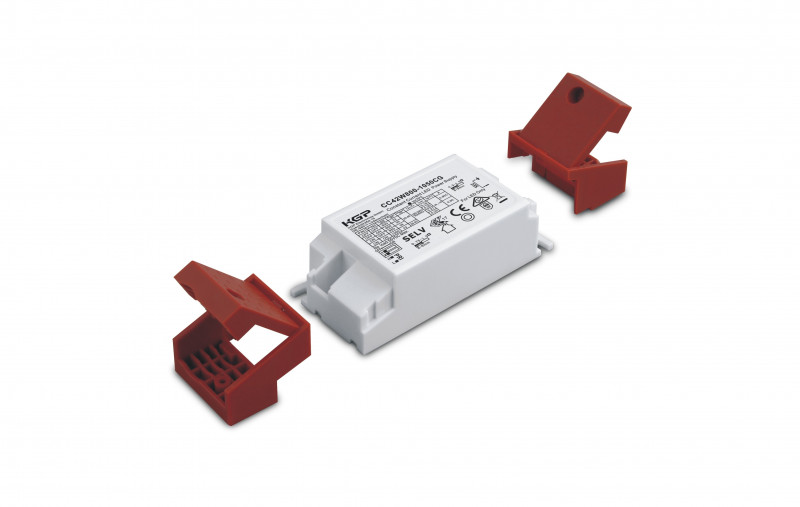

LED-Driver für Panel und Downlights

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG50359
  • Power Draw: 21 W
  • Input Current: AC 220-240V, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 98x44x30 mm

Power Draw

21 W

IP Code

IP 20

mounting type


(LxBxH) in mm

The driver may only be replaced by qualified persons

Universal LED driver for downlights and panels   Power select: variable... more
Product information "LED-Driver für Panel und Downlights"
Universal LED driver for downlights and panels
  • Power select: variable output current in 4 steps selectable: 250, 350, 450, 500mA
  • max. 24W
  • version for build into luminairies without cable holder boxes
  • flickerfree
Related links to "LED-Driver für Panel und Downlights"
Technical Details:
Input Current: AC 220-240V, 50/60Hz
Power Consumption: 21 W
Driver Manufacturer: KGP
Power Factor (PF): >0.92
Input Driver: terminal
Output of Driver: DC 25-42V, 250-500mA
Output Current Adjustable: ja
Electrical Protection Class: II
Ambient Temperature (TA): -10°C bis +45°C
Storage Temperature: -10°C bis +55°C
Dimensions: 98x44x30 mm
Montageart: recessed
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: ohne Zuentlastung
Net Weight: 74 g
Content Master Package: 120
Dimensions of Master Package: 453x252x200 mm
Weight Master Package: 11,29 kg
Product Line: Advance Line
Certifications CE,ENEC,SELV
perfect for LED downlights
Power Select: 4 steps 250-500mA
max. driver on 16A breaker: B Type: 36,C Type: 60
