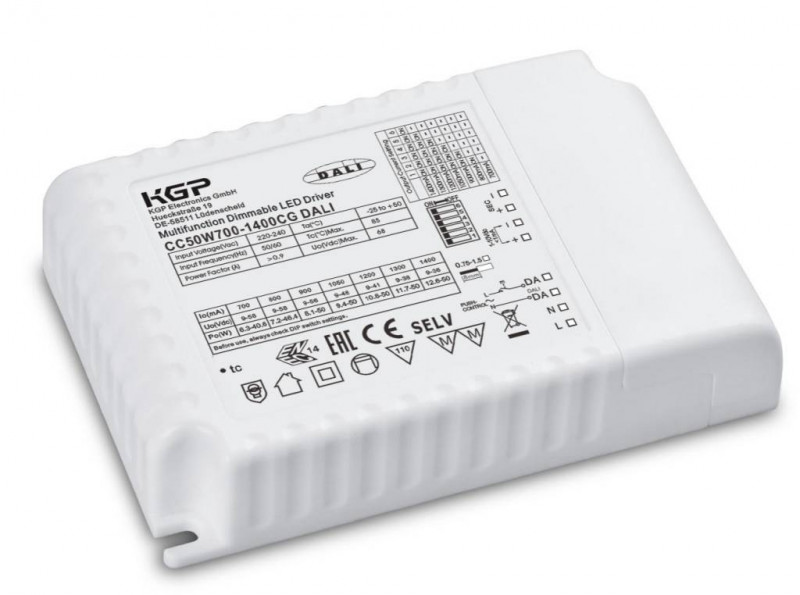

DRIVER KGP 50W 700-1400mA Dali/Push Dim 1-10V
Order number: LSP00324
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LSP00324
- Power Draw: 50 W
- Input Current: AC 220-240V, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 123x79x24 mm
- Warranty: 5 years
Dali Push Dim LED Driver selectable output current: 700-1400mA in 50mA... more
Product information "DRIVER KGP 50W 700-1400mA Dali/Push Dim 1-10V"
Dali Push Dim LED Driver
- selectable output current: 700-1400mA in 50mA steps
- DC output: 9-58V max. depending on the selected current
- dimming modes: Dali, 1-10V and Push dim 2-100%
Application:
- Downlights and LED panels
Related links to "DRIVER KGP 50W 700-1400mA Dali/Push Dim 1-10V"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V,DALI,Push-Dim |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 50 W |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 9-36/58V, 700-1400mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 50°C |
| Storage Temperature: | -40°C - 55°C |
| Dimensions: | 123x79x24 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Net Weight: | 0.218 g |
| Content Master Package: | 52 |
| Dimensions of Master Package: | 447x240x200 mm |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Certifications | CE,ENEC,SELV |
| Power Select: 6-50W | |
