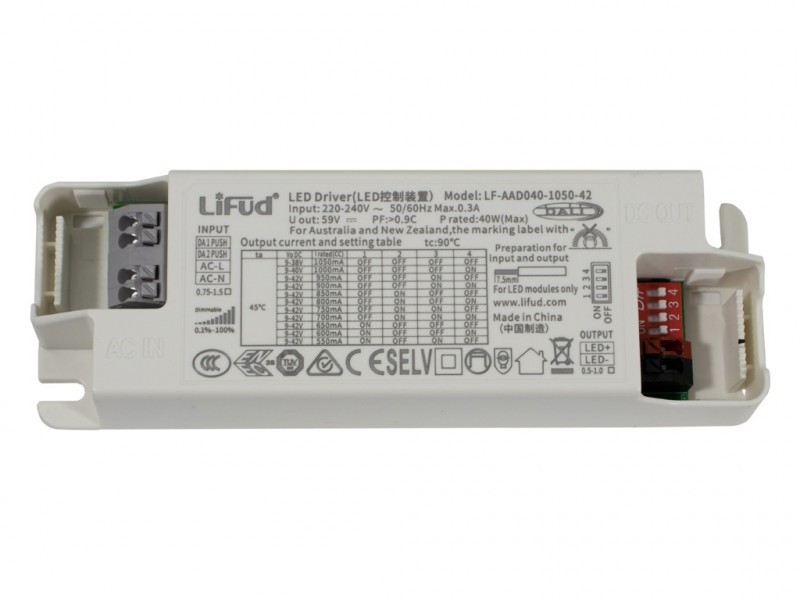

Lifud AAD040-1050-42 Dali-2

LG51330
Prices are only visible after login.

Availability: low stock

Dimensions

Dimensions
  • LG51330
  • Power Draw: 40 W
  • Input Current: AC 220 - 240V, 47/63Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 141x46,5x27,5 mm
  • Warranty: 5 years

Power Draw

40 W

IP Code

IP 20

mounting type

Dimensions

(LxBxH) in mm
141x46,5x27,5

Warranty

5 years

Dali 2 LED Power Supply   Constant current DC output LED driver with multi level... more
Product information "Lifud AAD040-1050-42 Dali-2"
Dali 2 LED Power Supply

Constant current DC output LED driver with multi level selectable output current by dip switch. DALI- interface and push dim dimming.
high efficiency up to 87%, with the fanless design for LED indoor lighting

Applications: LED office lighting, LED architectural lighting, LED panel and  downlighting

Product Features:
  • Constant Current mode output with multiple levels selectable by dip switch
  • Plastic housing with class II design
  • Built-in active PFC function
  • Standby power consumption <0.7W
  • Functions: DALI interface, push dimming
  • power select output: 550-950mA  15-40W
Related links to "Lifud AAD040-1050-42 Dali-2"
Technical Details:

Dimmable: ja
Method of Dimming: DALI,Push-Dim
Input Current: AC 220 - 240V, 47/63Hz
Power Consumption: 40 W
Driver Manufacturer: Lifud
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 9-42V, 550-950mA
CC/CV: CC
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -40°C - 60°C
Dimensions: 141x46,5x27,5 mm
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: Selectable output current
Net Weight: 86 g
Type of Packaging: none
Weight incl. Packaging: 0.086 kg
Content Master Package: 60
Dimensions of Master Package: 390x290x210 mm
Weight Master Package: 8,3 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h TC<80°C
Disposal Obligation: ja
Customs Tariff Number: 8504408390
Certifications CE,TÜV,ENEC,SELV
Barcode: 4250557822228
ideal für Panels und Downlights
Current select: 550, 600, 650, 700, 750, 800, 850,
900, 950, 1000, 1050
