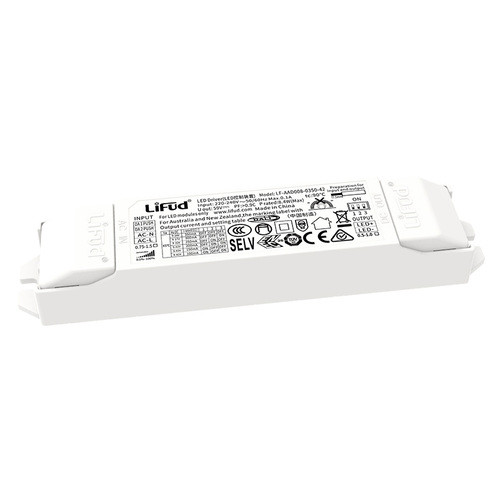

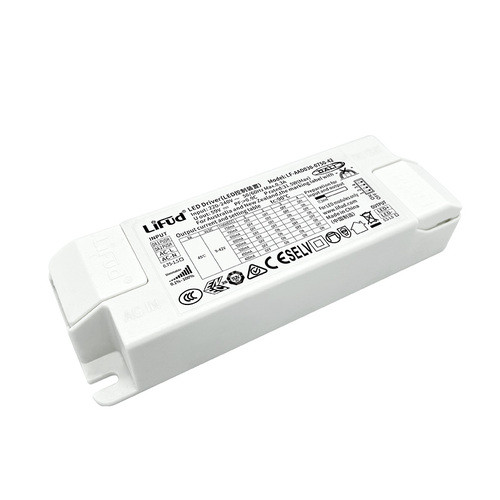

Lifud AAD012-0400-42 Dali 2
Order number: LG51325
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Dali 2 LED Power Supply Constant current DC output LED driver with multi level... more
Product information "Lifud AAD012-0400-42 Dali 2"
Dali 2 LED Power Supply
Constant current DC output LED driver with multi level selectable output current by dip switch. DALI- interface and push dim dimming.
high efficiency up to 82%, with the fanless design for LED indoor lighting
Applications:
LED office lighting
LED architectural lighting
LED panel and downlighting
Product Features:
- Constant Current mode output with multiple levels selectable by dip switch
- Plastic housing with class II design
- Built-in active PFC function
- Standby power consumption <0.7W
- Functions: DALI interface, push dimming
Related links to "Lifud AAD012-0400-42 Dali 2"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| Input Current: | AC 220 - 240V, 47/63Hz |
| Power Consumption: | 12 W |
| Driver Manufacturer: | Lifud |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 9-42V, 150-400mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 122x40x25 mm |
| Montageart: | surface mounted |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Selectable output current |
| Net Weight: | 85 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 0.085 kg |
| Content Master Package: | 84 |
| Dimensions of Master Package: | 390x290x210 mm |
| Weight Master Package: | 8,2 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h TC<80°C |
| Disposal Obligation: | |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,TÜV,ENEC,SELV |
| Barcode: | 4250557822204 |
| ideal für Panels und Downlights | |
| Current select: 150, 200, 250,300, 350,400 | |
