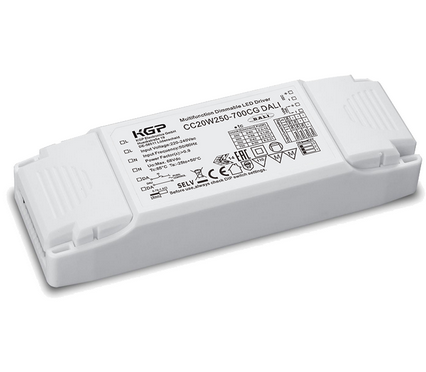

LED-Driver für Panel und Downlights 1-10V/ Push/ Dali Dim
Order number: LG50367
Available soon
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Short information
- Order number: : LG50367
- Power Draw: 20 W
- Input Current: AC 198-264V, 130mA, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 150x52x28 mm
Power Draw
20 W
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
150x52x28
The driver may only be replaced by qualified persons
Universal LED driver for downlights and panels Universal LED ballast... more
Product information "LED-Driver für Panel und Downlights 1-10V/ Push/ Dali Dim"
Universal LED driver for downlights and panels
- Universal LED ballast for flush-mounting and surface-mounting (optional strain reliefs must be ordered as surface-mounting variant, see accessories).
- Adjustable output current: 250 - 700mA max. 20W
- Flicker-free
- dimming: 1-10V, Dali, Push Dim
Related links to "LED-Driver für Panel und Downlights 1-10V/ Push/ Dali Dim"
Technical Details:
Dimmable: | |
Method of Dimming: | 1-10V,DALI,Push-Dim |
Input Current: | AC 198-264V, 130mA, 50/60Hz |
Power Consumption: | 20 W |
Driver Manufacturer: | KGP |
Power Factor (PF): | >0.9 |
Input Driver: | terminal |
Output of Driver: | DC 6-60V, 250-700mA |
CC/CV: | CC |
Output Current Adjustable: | |
Switching Cycles: | >100.000 |
Electrical Protection Class: | II |
Ambient Temperature (TA): | -10°C - 40°C |
Storage Temperature: | -10°C bis +55°C |
Dimensions: | 150x52x28 mm |
Montageart: | recessed |
IP Class: | 20 |
Housing Color | white |
Housing Material: | plastic |
Content Master Package: | 82 |
Weight Master Package: | 11,29 kg |
Product Line: | Advance Line |
Disposal Obligation: | |
Certifications | CE,ENEC,SELV |
flickerfree | |
perfect for LED downlights | |
Power Select: 250-700mA 1,5-20W | |
max. driver on 16A breaker: B Type: 18,C Type: 30 | |
Dali/Push Dim + 1-10V Dim |
