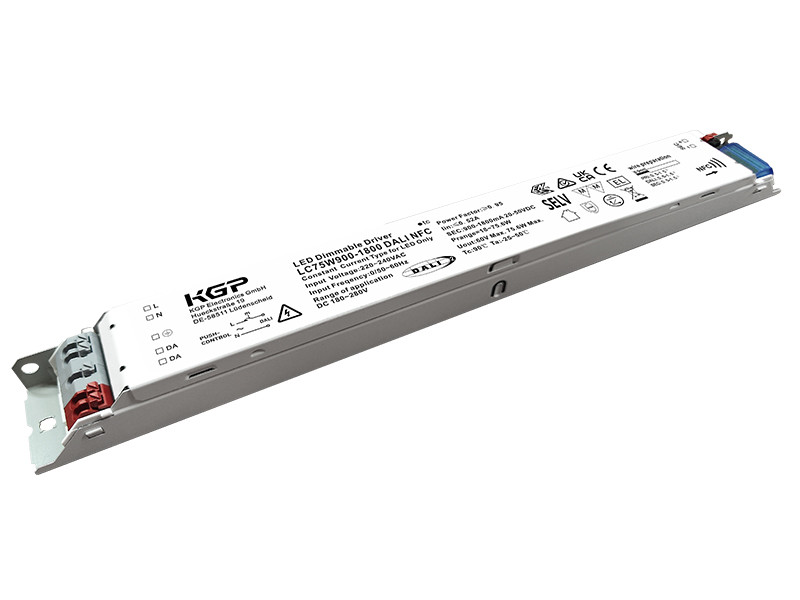

Kompakter, linearer Driver Feuchtraumleuchten
Order number: LG50368
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG50368
- Power Draw: 75 W
- Input Current: AC 198-264V, 520mA, 50/60Hz, DC 180-280V
- IP Code: 20
- Housing Color: white
- Dimensions: 280x29,4x21 mm
- Warranty: 5 years
Universal LED driver for downlights and panels Power select: variable... more
Product information "Kompakter, linearer Driver Feuchtraumleuchten"
Universal LED driver for downlights and panels
- Power select: variable output current in 4 steps selectable: 900 to 1800mA
- max. 75W
- version for build into luminairies without cable holder boxes
- flickerfree
- 89% efficiency
Safety Standards
EN61347-1:2015/A1:2021; EN61347-2-13:2014/A1:2017;
EN62384:2006/A1:2009; AS 61347.2.13:2018;
AS/NZS61347.1:2016; BS EN61347-1:2015/A1:2021;
BS EN61347-2-13:2014/A1:2017;
Related links to "Kompakter, linearer Driver Feuchtraumleuchten"
Technical Details:
| Input Current: | AC 198-264V, 520mA, 50/60Hz, DC 180-280V |
| Power Consumption: | 75 W |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 20-50V, 900-1800mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Switching Cycles: | >200.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -10°C bis +75°C |
| Storage Temperature: | -10°C bis +55°C |
| Dimensions: | 280x29,4x21 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | steel |
| Special Feature of Housing: | nur für Einbau gedacht |
| Content Master Package: | 20 |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Certifications | CE,ENEC,SELV |
| Power Select: 900-1800mA | |
| perfect for LED triproof lights | |
| max. driver on 16A breaker: B Type: 19,C Type: 30 | |
