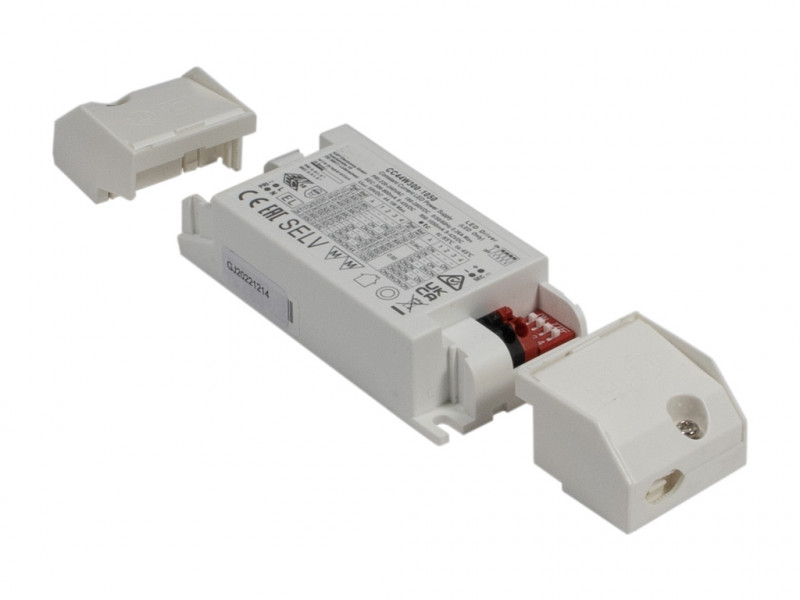

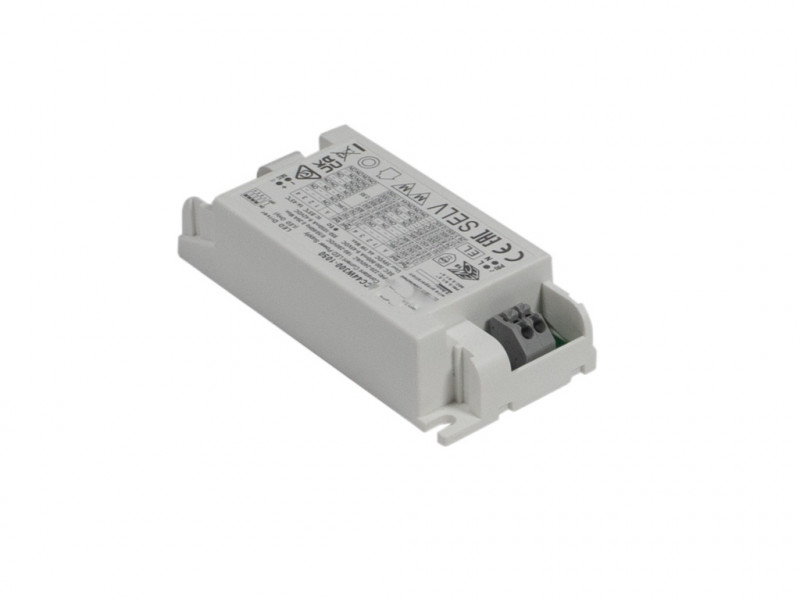

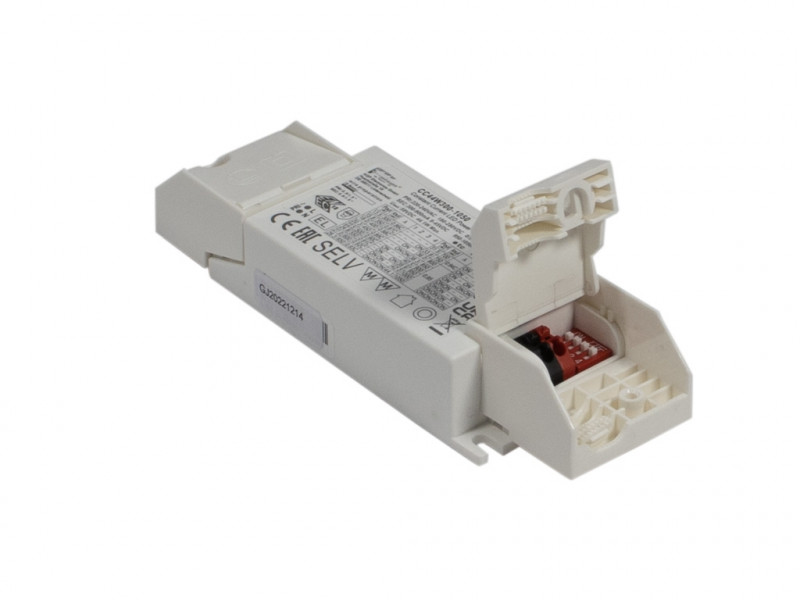

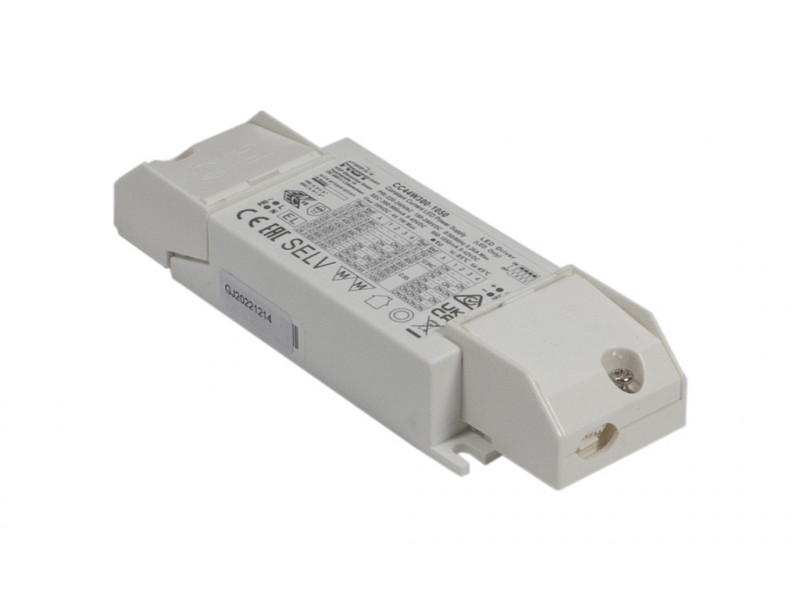

Kompakter Driver für Panel und Downlights
Order number: LG50364
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG50364
- Power Draw: 44 W
- Input Current: AC 220-240V, 50/60Hz, DC 170-276V
- IP Code: 20
- Housing Color: white
- Dimensions: 137,5x44x23 mm
- Warranty: 5 years
Universal LED driver for downlights and panels (for externally installation use optional... more
Product information "Kompakter Driver für Panel und Downlights"
Universal LED driver for downlights and panels (for externally installation use optional strain reliefs must be ordered as an add-on, see accessories)
- Power select: variable output current in 16 steps selectable: 700-1050mA
- max. 44W
- flickerfree
Related links to "Kompakter Driver für Panel und Downlights"
Technical Details:
| Input Current: | AC 220-240V, 50/60Hz, DC 170-276V |
| Power Consumption: | 44 W |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.92 |
| Input Driver: | terminal |
| Output of Driver: | DC 27-45V, 700-1050mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 50°C |
| Dimensions: | 137,5x44x23 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | ohne Zuentlastung |
| Net Weight: | 83 g |
| Weight incl. Packaging: | 0.083 kg |
| Content Master Package: | 100 |
| Dimensions of Master Package: | 400x235x150 mm |
| Weight Master Package: | 8,59 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,ENEC,SELV |
| Barcode: | 4250557823676 |
| Power Select: 350-700mA in 50mA Schritte | |
| perfect for LED panels and downlights | |
| max. driver on 16A breaker: B Type: 23,C Type: 37 | |
