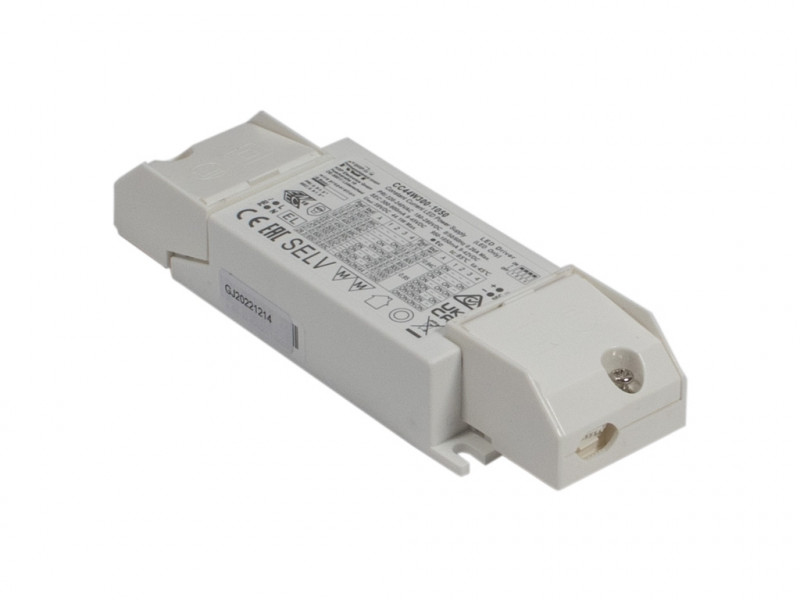

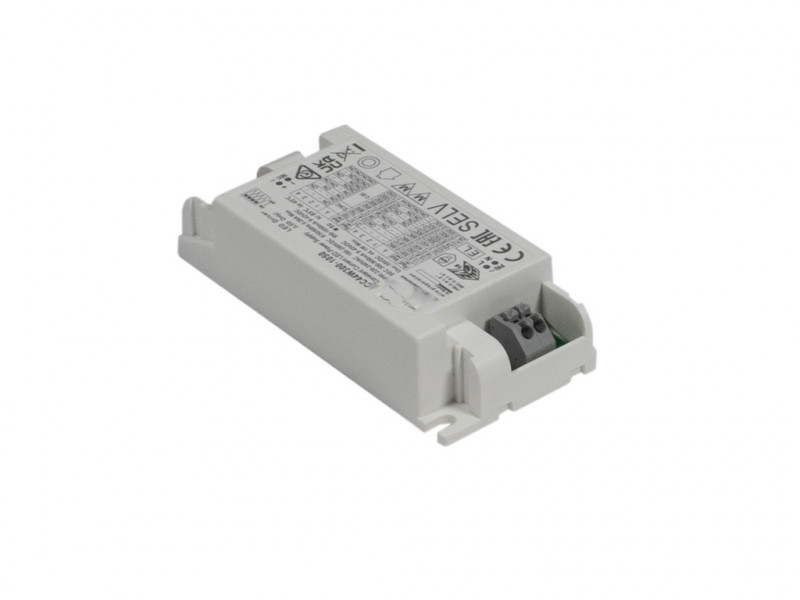

Kompakter Driver für Panel und Downlights
Order number: LG50362
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days
- Order number: : LG50362
- Power Draw: 30 W
- Input Current: AC 220-240V, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 137,5x43x27 mm
- Warranty: 5 years
Universal LED driver for downlights and panels Power select: variable... more
Product information "Kompakter Driver für Panel und Downlights"
Universal LED driver for downlights and panels
- Power select: variable output current in 4 steps selectable: 350, 400, 450, 500, 600, 650,700mA
- max. 30W
- version for build into luminairies without cable holder boxes
- flickerfree
Related links to "Kompakter Driver für Panel und Downlights"
Technical Details:
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 30 W |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.92 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-42V, 350-700mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -10°C bis +40°C |
| Storage Temperature: | -10°C bis +55°C |
| Dimensions: | 137,5x43x27 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | ohne Zuentlastung |
| Net Weight: | 0.124 g |
| Content Master Package: | 82 |
| Weight Master Package: | 11,29 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Certifications | CE,ENEC,SELV |
| Power Select: 350-700mA in 50mA Schritte | |
| perfect for LED panels and downlights | |
| max. driver on 16A breaker: B Type: 23,C Type: 37 | |
