Order number: LG50381

Prices are only visible after login.

Availability: low stock

Dali 2 LED Power Supply Constant current DC output LED driver with multi level... more

Product information "Kompakter DALI-2 Treiber"

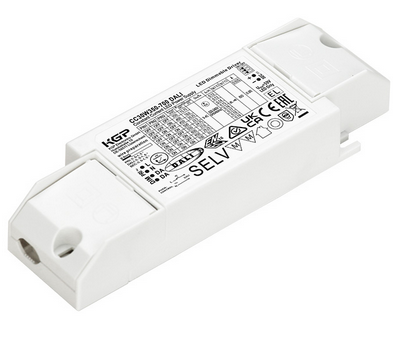

Dali 2 LED Power Supply

Constant current DC output LED driver with multi level selectable output current by dip switch. DALI- interface and push dim dimming.

high efficiency up to 84%, with the fanless design for LED indoor lighting

Applications:

LED office lighting

LED architectural lighting

LED panel and downlighting

Features

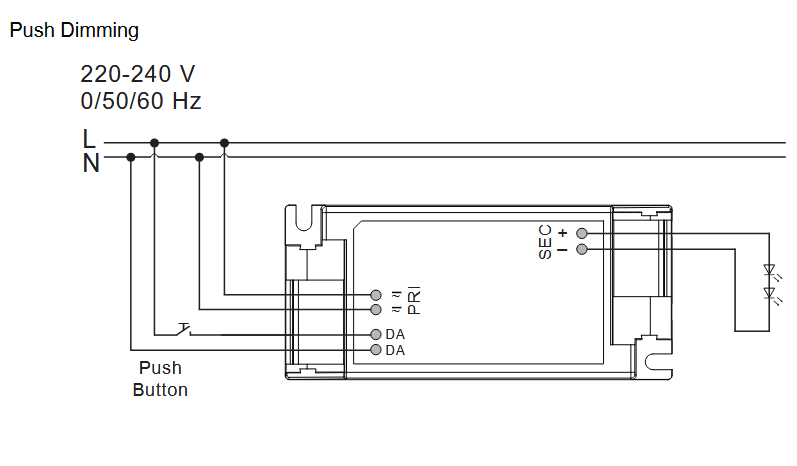

? DALI or PUSH dimming

? Constant current output and output current adjustable via DIP switch

? Built-in active PFC function

? Standby power consumption <0.5W

? IP20

? Suitable for Class II light fixtures

? 5-year warranty (please refer to the warranty condition)

Related links to "Kompakter DALI-2 Treiber"

Technical Details:

Dimmable:
Method of Dimming:	DALI,Push-Dim,DALI-2

Input Current:	AC 198-264V, 230mA, 50/60Hz, DC 180-280V
Power Consumption:	35 W
Driver Manufacturer:	KGP
Power Factor (PF):	>0.98
Input Driver:	terminal
Output of Driver:	DC 9-45V, 350-700mA
CC/CV:	CC
Output Current Adjustable:
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 80°C

Type of Packaging:	none
Dimensions of Packaging:	398x230x130
Weight incl. Packaging:	0.173 kg
Content Master Package:	100
Dimensions of Master Package:	398x230x130 mm
Weight Master Package:	9,56 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>75.000 h TC<75°C
Disposal Obligation:
Customs Tariff Number:	8504408390
Certifications	CE,TÜV,ENEC,SELV
Output current can be set via NFC in 1 mA steps
