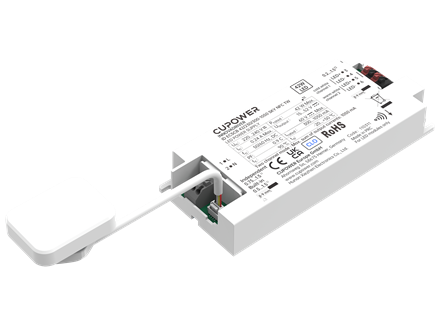

Tuneable White CCT Driver 42W 2 Channels with Zhaga Port 3,3V for Sensor
Order number: LG60794
Available soon
Prices are only visible after login.
Availability: low stock
- Order number: : LG60794
- Power Draw: Power Select (NFC 300-1050mA W)
- Input Current: AC 198-264V, 240mA, 50/60Hz, DC 176-276V
- IP Code: 20
- Beam Angle: 360°
- Housing Color: white
- Dimensions: 135x56,5x21 mm
- Warranty: 5 years
CUPower Tuneable White constant current driver for Bluetooth Mesh sensor Ideal... more
Product information "Tuneable White CCT Driver 42W 2 Channels with Zhaga Port 3,3V for Sensor"
CUPower Tuneable White constant current driver for Bluetooth Mesh sensor
Ideal driver for LED panels and downlights
CCT adjustable via Zhaga Port and dimming via 2 channels
Wenn ein Mesh Sensor verwendet wird können drahtlose Bluetooth Netzwerke erstellt werden. Z.B. Ein Sensor steuert dann mehrere LED-Leuchten über das drahtlose Netzwerk, eine gute Lösung wenn das ziehen von Dali Kabeln nicht möglich ist.
Max. 42 W at 15-52 V DC
Output current adjustable via NFC (300-1050 mA)
Dimmable: 1-100%
CLO (Constant Lumen Output)
Suitable for central battery emergency power systems (AC/DC input voltage)
Efficiency: 92%
Max. case temperature: 90°C (rated for 50,000h at 85°C case temp. / 230V)
Inrush current: 15.6 A, 248 µs
Number of drivers per circuit breaker: B10A: 26, C10A: 43, B16A: 43, C16A: 70 units
Standby power: 0.3 W
Output voltage: Max. 60 V DC
Ripple: 5%
Zhaga Port 3,3V

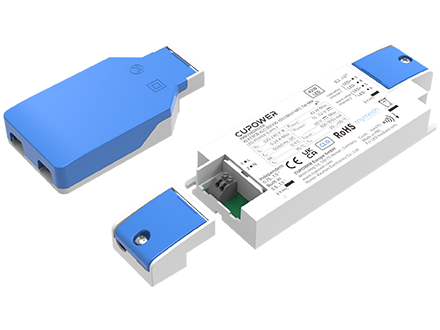

Strain reliefs available as an option
Related links to "Tuneable White CCT Driver 42W 2 Channels with Zhaga Port 3,3V for Sensor"
Technical Details:
| Beam Angle: | 360 ° |
| Dimmable: |  |
| Method of Dimming: | Bluetooth |
| Input Current: | AC 198-264V, 240mA, 50/60Hz, DC 176-276V |
| Power Consumption: | Power Select (NFC 300-1050mA W) |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 15-52V, 300-1050mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -25°C - 85°C |
| Dimensions: | 135x56,5x21 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Opt.Zugentlasung erhältl. |
| Weight incl. Packaging: | 0.3 kg |
| Content Master Package: | 24 |
| Dimensions of Master Package: | 280x1179,5x114 mm |
| Weight Master Package: | 4 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| weitere Infos: siehe Datenblatt des Herstellers | |
| more details refer to datasheet of manufacturer | |
| Bluetooth Mesh Dimmung via Meshle App | |
| Tuneable White CCT change 2 Ch. | |
