Wireless Bluetooth Mesh 2,4GHz Driver 42W Meshle Software Sensor Port
Order number: LG60791
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG60791
- Power Draw: Power Select (NFC 300-1050mA W)
- Input Current: AC 198-264V, 240mA, 50/60Hz, DC 176-276V
- IP Code: 20
- Beam Angle: 360°
- Housing Color: white
- Dimensions: 97x43x21,4 mm
- Warranty: 5 years
CUPower Bluetooth Mesh constant current driver for Meshle 2.4 GHz networks ... more
Product information "Wireless Bluetooth Mesh 2,4GHz Driver 42W Meshle Software Sensor Port"

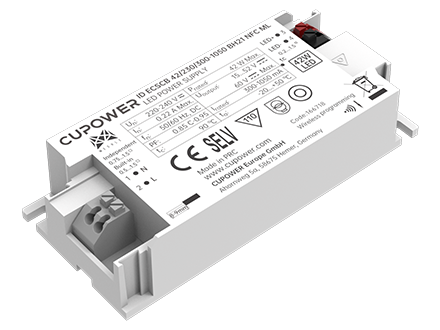

CUPower Bluetooth Mesh constant current driver for Meshle 2.4 GHz networks
- Controllable via the Meshle app
- Ideal driver for LED panels and downlights
- Max. 42 W at 15-52 V DC
- Output current adjustable via NFC (300-1050 mA)
- Dimmable: 1-100%
- CLO (Constant Lumen Output)
- Suitable for central battery emergency power systems (AC/DC input voltage)
- Efficiency: 92%
- Max. case temperature: 90°C (rated for 50,000h at 85°C case temp. / 230V)
- Inrush current: 15.6 A, 248 µs
- Number of drivers per circuit breaker: B10A: 26, C10A: 43, B16A: 43, C16A: 70 units
- Standby power: 0.3 W
- THD: ≤ 10%
- Output voltage: Max. 60 V DC
- Ripple: 5%
- Bluetooth Mesh dimming via Meshle app

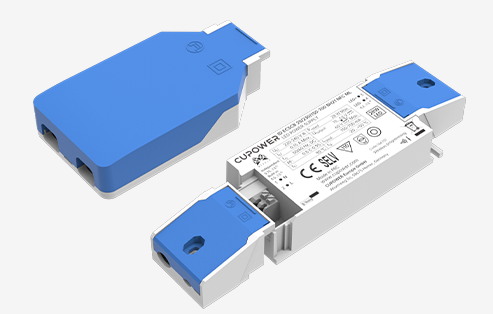

- Strain reliefs available as an option
Related links to "Wireless Bluetooth Mesh 2,4GHz Driver 42W Meshle Software Sensor Port"
Technical Details:
| Beam Angle: | 360 ° |
| Dimmable: |  |
| Method of Dimming: | Bluetooth |
| Input Current: | AC 198-264V, 240mA, 50/60Hz, DC 176-276V |
| Power Consumption: | Power Select (NFC 300-1050mA W) |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 15-52V, 300-1050mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -25°C - 85°C |
| Dimensions: | 97x43x21,4 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Opt. ugentlasung erhältl. |
| Weight incl. Packaging: | 0.1 kg |
| Content Master Package: | 24 |
| Dimensions of Master Package: | 204x139x116 mm |
| Weight Master Package: | 2,55 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| weitere Infos: siehe Datenblatt des Herstellers | |
| more details refer to datasheet of manufacturer | |
| Dim via Bluetooth Mesh Meshle App | |
