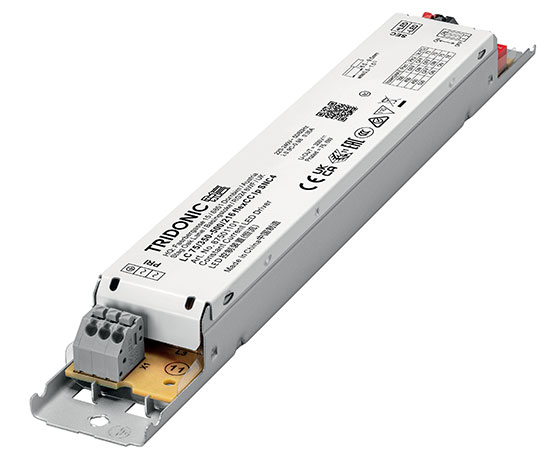

Tridonic TALEXXconverter LC75/350-500/216 flex CC Ip SNC4
Order number: LG51245
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
- Order number: : LG51245
- Power Draw: Power Select (350,400,450,500 mA W)
- Input Current: AC 198 - 264V, 50/60Hz
- IP Code: 20
- Housing Color: white

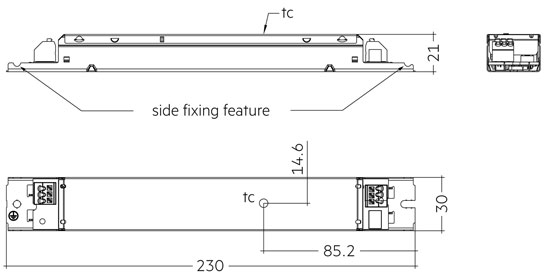

- Dimensions: 230x30x21 mm
- Warranty: 5 years
Product description Constant current LED Driver for luminaire... more
Product information "Tridonic TALEXXconverter LC75/350-500/216 flex CC Ip SNC4"
Product description
- Constant current LED Driver for luminaire installation
- Dimmable via ready2mains Gateway
- Dimming range 10 to 100 % (dependig on load)
- Adjustable output current between 900 and 1,800 mA via ready2mains Programmer or I-select 2 plugs
- Max. output power 75 W
- Up to 91 % efficiency
- For luminaires of protection class I and protection class II
- Nominal life-time up to 100,000 h
- 5-year guarantee
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- ready2mains (configuration and dimming via mains)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (ready2mains, I-select 2)
- Dimmable via ready2mains interface
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
- Suitable for emergency escape lighting systems acc. to EN 50172
Technical data:
- Rated supply voltage: 220 - 240 V
- AC voltage range : 198 - 264 V
- DC voltage range: 176 - 280 V
- Mains frequency: 0 / 50 / 60 Hz
- Overvoltage protection: 320 V AC, 48 h
- Typ. current (at 230 V, 50 Hz, full load): 370 mA
- Typ. current (220 V, 0 Hz, full load, 50 % dimming level): 175 mA
- Leakage current (at 230 V, 50 Hz, full load): < 250 µA
- Max. input power: 84,5W
- Typ. efficiency (at 230 V, 50 Hz, full load): 91%
- λ (at 230 V, 50 Hz, full load): 0,98
- Typ. input current in no-load operation: 20 mA
- Typ. input power in no-load operation: 0,1W
- In-rush current (peak / duration): 25,8 A / 280 µs
- THD (at 230 V, 50 Hz, full load): < 10 %
- Time to light (at 230 V, 50 Hz, full load): < 500 ms
- Time to light (DC mode): < 500 ms
- Switchover time (AC/DC): < 0.2 s
- Turn off time (at 230 V, 50 Hz, full load): < 50 ms
- Output current tolerance: &plusm; 5 %
- Max. output current peak (non-repetitive): ≤ output current + 35%
- Output LF current ripple (< 120 Hz): &plusm; 5 %
- Max. output voltage (no-load voltage): 52 V
- Dimming range: 10 - 100 %
- Mains surge capability (between L - N): 1 kV
- Mains surge capability (between L/N - PE): 2 kV
- Surge voltage at output side (against PE): < 500 V
- Dimensions L x W x H: 360 x 30 x 21 mm
Related links to "Tridonic TALEXXconverter LC75/350-500/216 flex CC Ip SNC4"
Technical Details:
| Input Current: | AC 198 - 264V, 50/60Hz |
| Power Consumption: | Power Select (350,400,450,500 mA W) |
| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.98 |
| Input Driver: | terminal |
| Output of Driver: | DC 90-150/216V, 350-500mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -25°C - 60°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 230x30x21 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | metal |
| Net Weight: | 144 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.144 kg |
| Content Master Package: | 10 |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,ENEC |
| Standards: EN 55015, EN 61000-3-2, EN 61000-3-3, | |
| N 61347-1, EN 61347-2-13, EN 61547, EN 62384 | |
