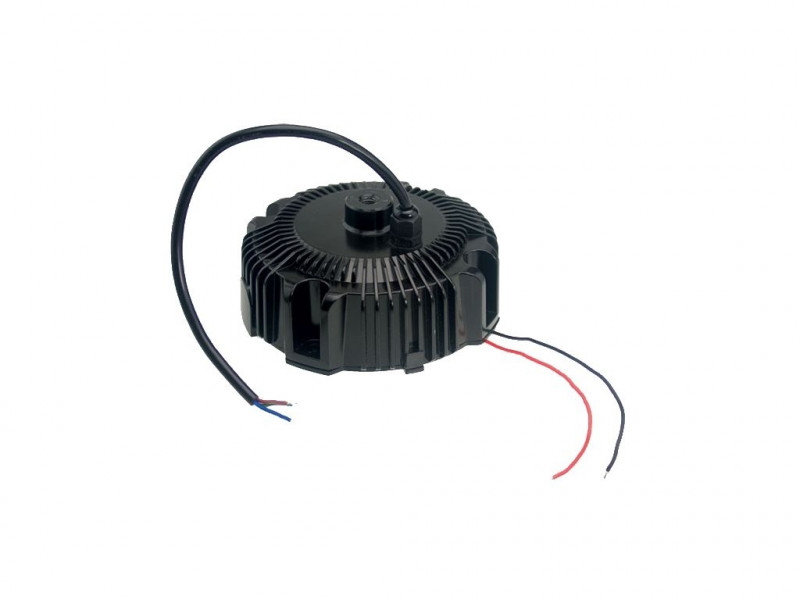

Mean Well HBG-100H-48B
Order number: LG51074
Prices are only visible after login.
Availability: on request
Short information
- Order number: : LG51074
- Power Draw: 96 W
- Input Current: AC 90 - 305V, 500mA, 49/63Hz, DC 127 - 431V
- IP Code: 67
- Housing Color: black
- Dimensions: 130x67 mm
- Warranty: 5 years
Power Draw
96 W
IP Code
IP 67
Dimensions
(ØxH) in mm
130x67
Warranty
5 years
LED Power Supply Mean Well HBG Series Single Output LED Switching Power Supply... more
Product information "Mean Well HBG-100H-48B"
LED Power Supply
Mean Well HBG Series Single Output LED Switching Power Supply features universal AC input up to 305VAC, protections for short circuit, overload, over voltage, and over temperature, built-in active PFC function, and OCP point adjustments through the output cable or internal potentiometer. The Mean Well HBG-240-B Series 240W Single Output LED Switching Power Supply is IP67 designed for indoor or outdoor installations for LED lighting and moving sign applications.
Product Features:
- usable for all DC 48V Applications
Technical Details:
- Mains input: AC 90 - 305V, 47 - 63Hz
- Housing: Aluminium
- Output voltage: DC 48V, constant current
- Output voltage range: yes (DC 28,8- 48V)
- Rated power: 2A
- Output power: 96W
- Dimmable: yes via 1 - 10V (external voltage 1...10V DC, PWM, Potentiometer)
- Protection: short circuit, over load, over voltage
- Scope: LED strips and Illumination
- IP class: IP67 for indoor and outdoor use
- Safety standars: F, SELV, TÜV, CE
- Power Faktor: >0,95
- Efficiency: 91%
- Ambient temperature: -40° to 60°C
- Warranty: 5 years
Dimensions: external diameter 113 x 66,5 mm
Weight: 1,18kg
Related links to "Mean Well HBG-100H-48B"
Technical Details:
Dimmable: | |
Method of Dimming: | 1-10V,PWM |
Input Current: | AC 90 - 305V, 500mA, 49/63Hz, DC 127 - 431V |
Power Consumption: | 96 W |
Power Factor (PF): | >0.95 |
Output of Driver: | DC 48V, 2000mA |
Electrical Protection Class: | I |
Compatible with Emergency Current: | |
Ambient Temperature (TA): | -40°C - 60°C |
Dimensions: | 130x67 mm |
IP Class: | 67 |
Housing Color | black |
Housing Material: | aluminum |
Net Weight: | 1180 g |
Type of Packaging: | box |
Weight incl. Packaging: | 1.18 kg |
Warranty | 5 years |
Operating Hours: | >50.000 h |
Customs Tariff Number: | 8504408390 |
Certifications | CE,TÜV |
Barcode: | 4250557816258 |
Connection: | Kabel mit offenen Enden |
