Element Controller WiFi-RF4

Element Controller WiFi-RF4
LG5423
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG5423
  • Input Current: DC 5-12V
  • IP Code: 20
  • Housing Color: black
  • Dimensions: 50x99x20 mm
  • Warranty: 2 years

IP Code

IP 20

mounting type

Dimensions

(LxBxH) in mm
50x99x20

Warranty

2 years

CONTROLS / ELEMENT SERIES For comfortable control of LED strips and low-voltage lights, we... more
Product information "Element Controller WiFi-RF4"
CONTROLS / ELEMENT SERIES
For comfortable control of LED strips and low-voltage lights, we offer various systems. You can choose between wireless, Wifi or DMX connection and benefit from the respective advantages.

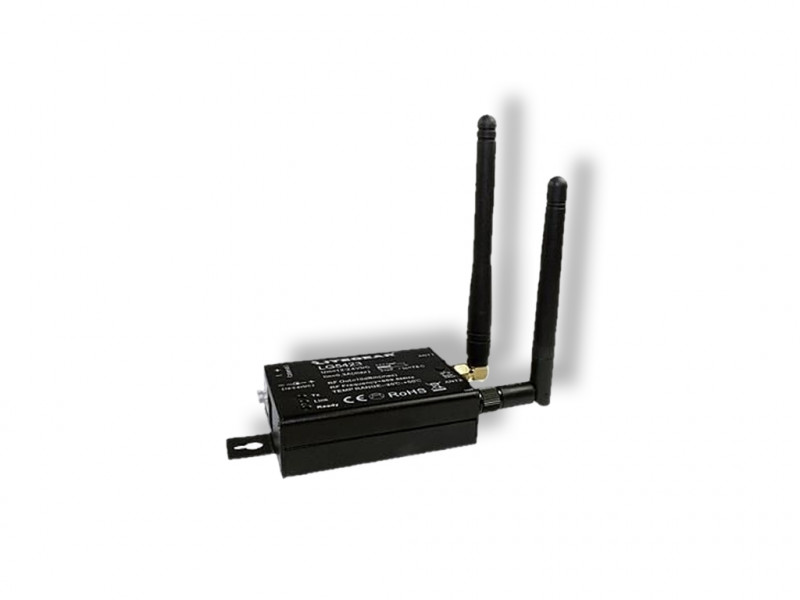

Controller WiFi-RF4
The Litegear Element Wifi / Wireless Transmitter is a gateway to integrate a smartphone or a tablet into the control system. You can control the appropriate controller either via radio remote control, wireless wall remote control or via smartphone app.
With this smart lighting control, you can combine or expand your ideas with different types of control. You create a Wifi connection between your input device and the LG5423. Use the app to select the type of control. The basic building block of this system is a wireless controller RGB (W), dual white or single color LED technology. The Controller requires an external power supply.
Properties:
One Wifi receiver is needed per zone
Transfer of scenes and fades
A suitable app for your smart phone, EASYLIGHTING, EASYCOLOR, REALCOLOR, can be downloaded from the App Store.
Related links to "Element Controller WiFi-RF4"
Technical Details:

Dimmable: ja
Method of Dimming: Funk,WiFi
Input Current: DC 5-12V
Output of Driver: DC 5-12V
CC/CV: CV
Ambient Temperature (TA): -10°C - 35°C
Dimensions: 50x99x20 mm
Montageart: surface mounted
IP Class: 20
Housing Color black
Housing Material: steel
Coating: lacquered
Special Feature of Housing: Receiver/Transmitter Antennas
Net Weight: 97 g
Transmission Frequency: 433/868Mhz
Type of Packaging: box
Weight incl. Packaging: 0.11 kg
Product Line: Advance Line
Warranty 2 years
Certifications CE,EMC,LVD
Barcode: 4250557804422
Funkempfänder/-Sender
wandelt Wifi in Funksignal um
wireless receiver /transmitter
receives Wifi from Smartphone and transmitts to RF
