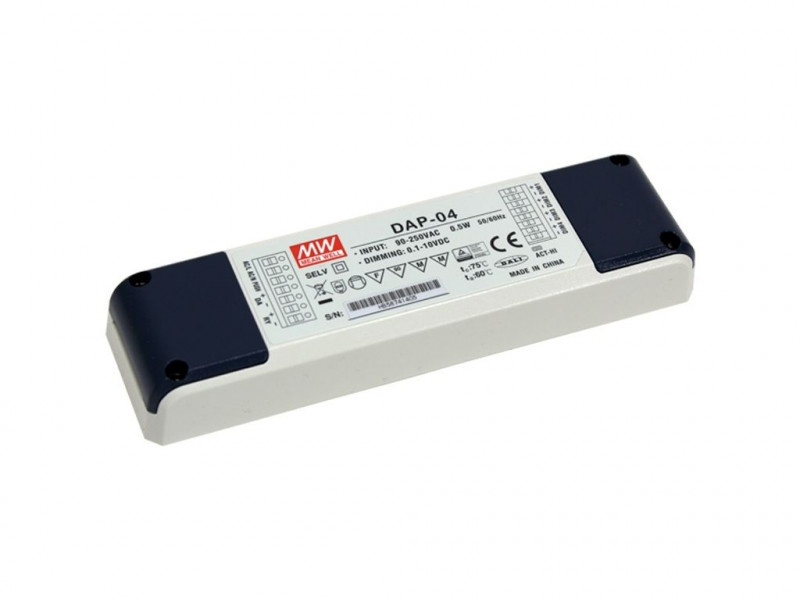

Mean Well DAP-04 Dali to 0-10V Converter

Mean Well DAP-04 Dali to 0-10V Converter
LG51066
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG51066
  • Input Current: AC 90 - 305V, 100mA, 47/63Hz, DC 127 - 431V
  • Housing Color: white
  • Dimensions: 165x46x23 mm
  • Warranty: 3 years

Dimensions

(LxBxH) in mm
165x46x23

Warranty

3 years

DALI-PWM Signal Converter   The Meanwell DAP-04 extends Meanwell power supply... more
Product information "Mean Well DAP-04 Dali to 0-10V Converter"
DALI-PWM Signal Converter

The Meanwell DAP-04 extends Meanwell power supply units with a PWM controller- DALI interface and the push dimming function. The controller has 4 output channels that are all separately controllable via DALI. Additionally, the controller has an internal relay which can switch off the plugged in power supply when the dimmer is set to 0 on channel 1. It is perfectly suited in combination with the Meanwell LPF- and HLG series.

Product Features:
  • DALI and push dimming function input
  • 4 output channels
  • up to 20 power supply units per channel
  • Relay to switch off the power supplies(8A continuous current, 50A start-up current)
  • selectable dimmer performance (linear/logarithmic)
Technical Details:
  • Mains input: AC 90 - 305V, 47 - 63Hz
  • Housing: Plasic
  • Power consumption: 0,5W
  • Input signal: DALI or push DIM
  • Dimmable: 0 - 100%
  • IP Class: IP20
Dimensions: (WxHxD): 165 x 46 x 23 mm
Weight: 0,150kg
Related links to "Mean Well DAP-04 Dali to 0-10V Converter"
Technical Details:

Input Current: AC 90 - 305V, 100mA, 47/63Hz, DC 127 - 431V
Electrical Protection Class: II
Ambient Temperature (TA): -30°C - 60°C
Dimensions: 165x46x23 mm
Housing Color white
Housing Material: plastic
Net Weight: 160 g
Type of Packaging: box
Weight incl. Packaging: 0.15 kg
Warranty 3 years
Customs Tariff Number: 8504408390
Certifications CE,TÜV
Barcode: 4250557816197
