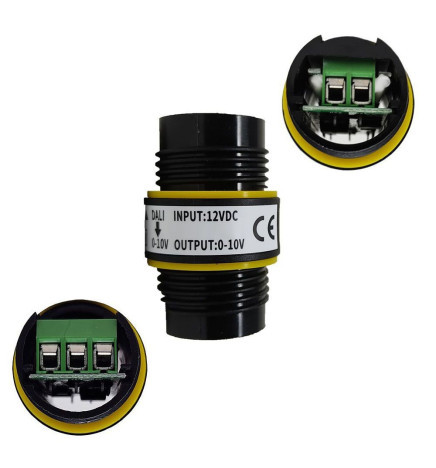

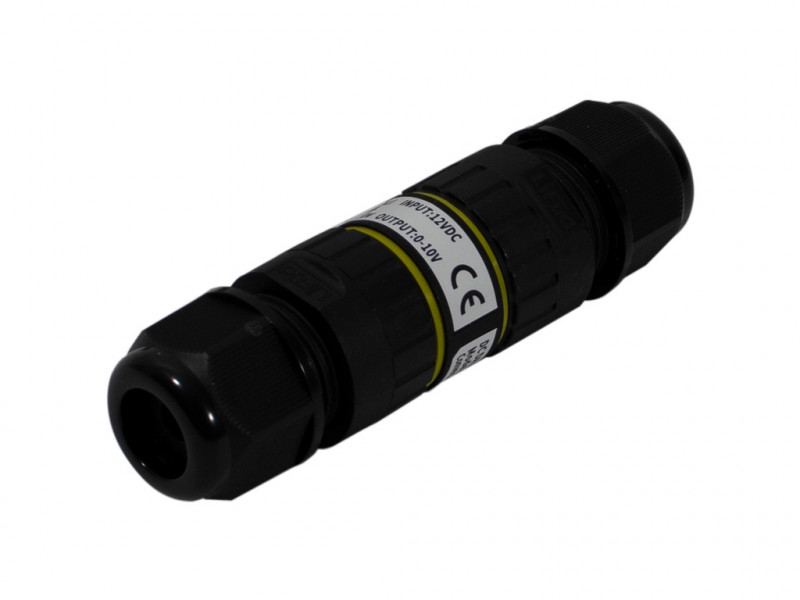

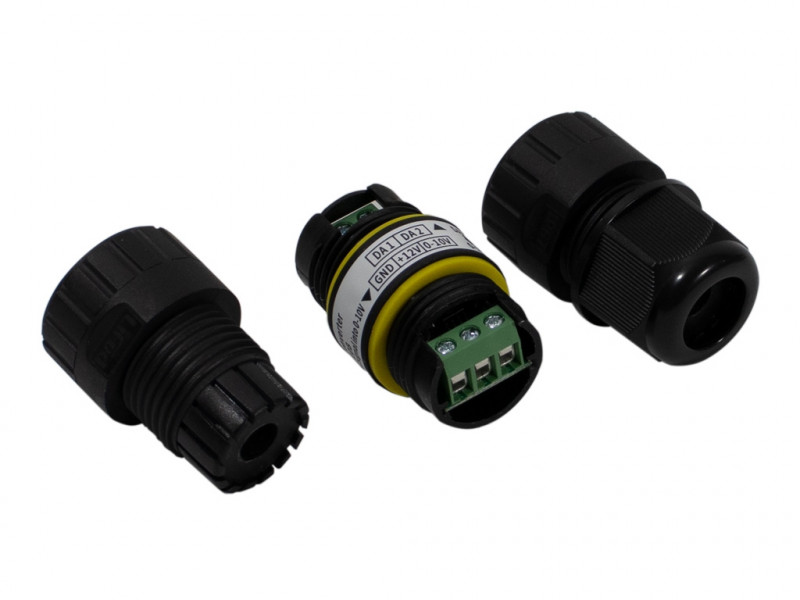

Lifud Dali to 0-10V Converter

LG51335
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG51335
  • Power Draw: 1 W
  • Input Current: DC 11-13V
  • IP Code: 67
  • Housing Color: white
  • Dimensions: 30x111 mm
  • Warranty: 5 years

Power Draw

1 W

IP Code

IP 67

mounting type

Dimensions

(ØxH) in mm
30x111

Warranty

5 years

Dali 2 LED Power Supply   Constant current DC output LED driver with multi level... more
Product information "Lifud Dali to 0-10V Converter"
Dali 2 LED Power Supply

Constant current DC output LED driver with multi level selectable output current by dip switch. DALI- interface and push dim dimming.
high efficiency up to 87%, with the fanless design for LED indoor lighting

Applications:
LED office lighting
LED architectural lighting
LED panel and  downlighting


Product Features:

  • Constant Current mode output with multiple levels selectable by dip switch
  • Plastic housing with class II design
  • Built-in active PFC function
  • Standby power consumption <0.7W
  • Functions: DALI interface, push dimming
Related links to "Lifud Dali to 0-10V Converter"
Technical Details:

Dimmable: ja
Method of Dimming: DALI,Push-Dim
Input Current: DC 11-13V
Power Consumption: 1 W
Driver Manufacturer: Lifud
Input Driver: terminal
Output of Driver: DC 0-10V, 4mA
CC/CV: CV
Output Current Adjustable: ja
Switching Cycles: >100.000
Electrical Protection Class: III
Ambient Temperature (TA): -20°C - 55°C
Storage Temperature: -40°C - 60°C
Dimensions: 30x111 mm
Montageart: surface mounted
IP Class: 67
Housing Color white
Housing Material: plastic
Net Weight: 70 g
Type of Packaging: box
Weight incl. Packaging: 0.07 kg
Content Master Package: 90
Dimensions of Master Package: 400x330x140 mm
Weight Master Package: 6,8 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >25.000 h TC<60°C
Disposal Obligation: ja
Customs Tariff Number: 8504408390
Certifications CE,TÜV,SELV
Ideal Steuerung von 0-10V Komponenenten über Dali
Es wird ein 12V Netzteil benötigt!

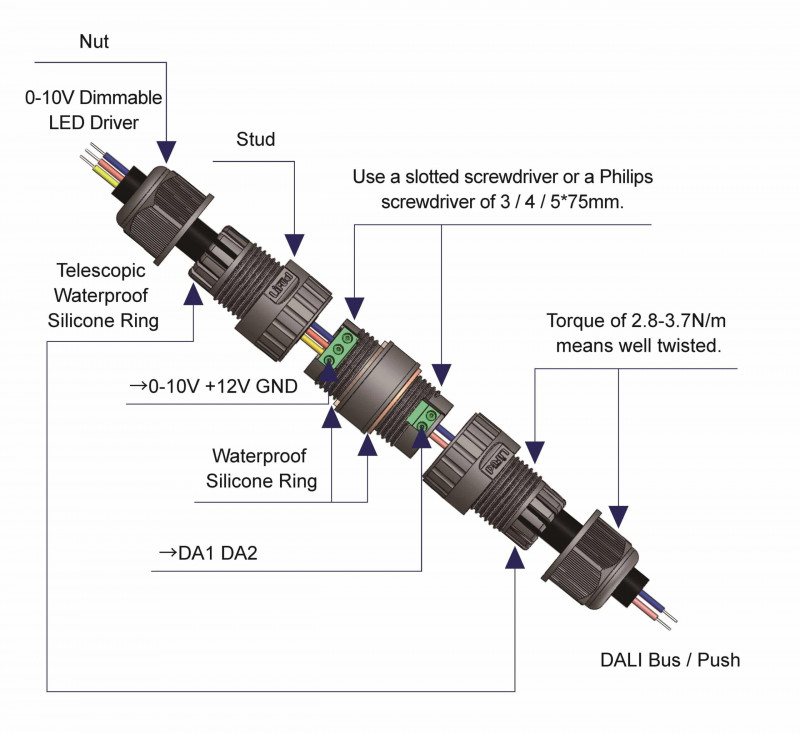

perfect controller from Dali to 0-10V max. 25mA
an external powers supply 12V is needed
10-100% (dim to off)
