Order number: LG55050
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG55050
- Input Current: AC 220-240V, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 90x90x12 mm
- Warranty: 2 years
IP Code
IP 20
Dimensions
(LxBxH) in mm
90x90x12
Warranty
2 years
Smart wireless bluetooth mesh receiver wireless transmitter wall switch... more
Product information "Casambi Smart Wireless Tasterfeld Wandschalter"
Smart wireless bluetooth mesh receiver
- wireless transmitter wall switch to remotly control Casambi modules
- flat, modern wall switch remote
Versatile
Xpress-LR is a wireless user interface that brings huge flexibility to interior design as furniture can be replaced and walls can be rebuilt without having to take the wiring of switches or switch placement into account. The switch can be kept wherever the user needs it and it gives direct access to all the important Casambi lighting control functionalities.
Highly customizable
Gives direct access to all the important Casambi lighting control functionalities. The preset buttons of Xpress can be configured via the Casambi App.
Long Range Mode
There are three radio modes: 'Balanced', 'Better Performance' and now 'Long Range' options. Long-range capabilities can reach approx. 200 meters (650 feet) with a good line of sight connection between nodes.
Features
Luminaire control
Group control
Control all luminaires
Recall Scenes
Recall Animations
Smooth dimming
Change of colour temperature
Change of indirect/direct lighting ratio
Input
Voltage: 3VDC
Battery Type: CR2430 Lithium Coin Cell
Radio Transceiver
Operating frequencies: 2.402…2.480 Ghz
Maximum output power: +8 dBm
Operating conditions
Operating temperature: +32°F… +104°F (0°C… 40°C)
Storage temperature: -13°F… +158°F (-25°C… 70°C)
Max. relative humidity: 0…80%, non-cond.
Mechanical data
Dimensions: 3.54"x3.54"x.47" (90 x 90 x 12 mm)
Weight: 2.54 oz (72 g)
Degree of protection: IP20 (indoor use only)
Certifications
Contains FCC ID: T7V1780
Contains IC: 216Q-1780
There are three radio modes: 'Balanced', 'Better Performance' and now 'Long Range' options. Long-range capabilities can reach approx. 200 meters (650 feet) with a good line of sight connection between nodes.

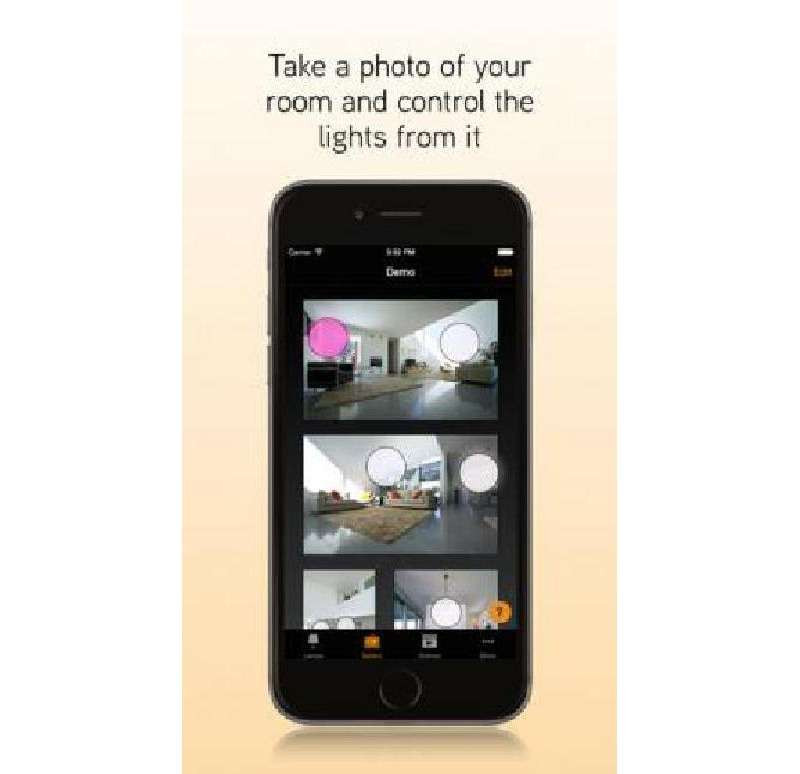

You can find the free Casambi App in the App or Plasy Store.
iOS / Apple / iPhone / iPad
iOS/AppleWatch
Android
Related links to "Casambi Smart Wireless Tasterfeld Wandschalter"
Technical Details:
Dimmable: | |
Method of Dimming: | 1-10V |
Input Current: | AC 220-240V, 50/60Hz |
Ambient Temperature (TA): | -20°C - 45°C |
Storage Temperature: | -20°C - 55°C |
Dimensions: | 90x90x12 mm |
IP Class: | 20 |
Housing Color | white |
Housing Material: | plastic |
Special Feature of Housing: | Surface-mounted housing |
Net Weight: | 92 g |
Channels: | 1 |
Dimming: | 1-100% |
Type of Packaging: | box |
Weight incl. Packaging: | 0.12 kg |
Warranty | 2 years |
Disposal Obligation: | |
Customs Tariff Number: | 9405409990 |
Certifications | CE |
Bluetooth 4.0 auf 0-10V Ausgang/output | |
Zur Funk Dimmung von 0/1-10V Treibern | |
Steuerung übver App oder Funkschalter |
