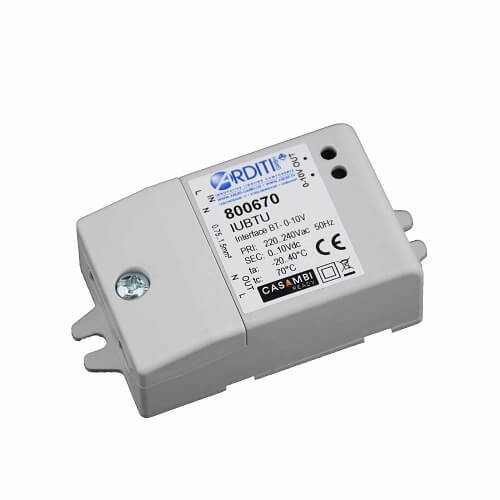

Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter

LG55061
Available soon
Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Dimensions

Dimensions
  • LG55061
  • Input Current: AC 220-240V, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 62x38x22 mm
  • Warranty: 2 years

IP Code

IP 20

Dimensions

(LxBxH) in mm
62x38x22

Warranty

2 years

Smart wireless bluetooth mesh receiver   wireless receiver with analogue... more
Product information "Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter"
Smart wireless bluetooth mesh receiver

  • wireless receiver with analogue 0-10V dimmer output 1 channel
  • compact dimensions for installation in boxes and lights

Wireless control unit for 0/1-10V LED drivers

With the help of the innovative Bluetooth 4.0 control unit IBTU Casambi Adapter, you can control 1/0-10V LED drivers via smartphone, tablet, but also via the normal switch.

The CASAMBI compatible module is based on a very small, IP20-protected housing with a height of 22mm and a total length of 75 mm and can surface mounted or integrated into luminaires The module is equipped with a configurable interface (max. 7mA control current) for connecting dimmable electronic 0/1-10V LED driver.
Light scenes can be selected and the switch-on light level can be set using a mains switch. As soon as you have installed the devices in your 0/1-10V light and combined them into a network using your free Casambi app (Android + iOS), the devices form a continuous mesh with each other based on the far-reaching
and energy-saving standards Bluetooth 4.0. As soon as only one lamp is nearby, you can control all lamps. You don't need a central controller nearby.

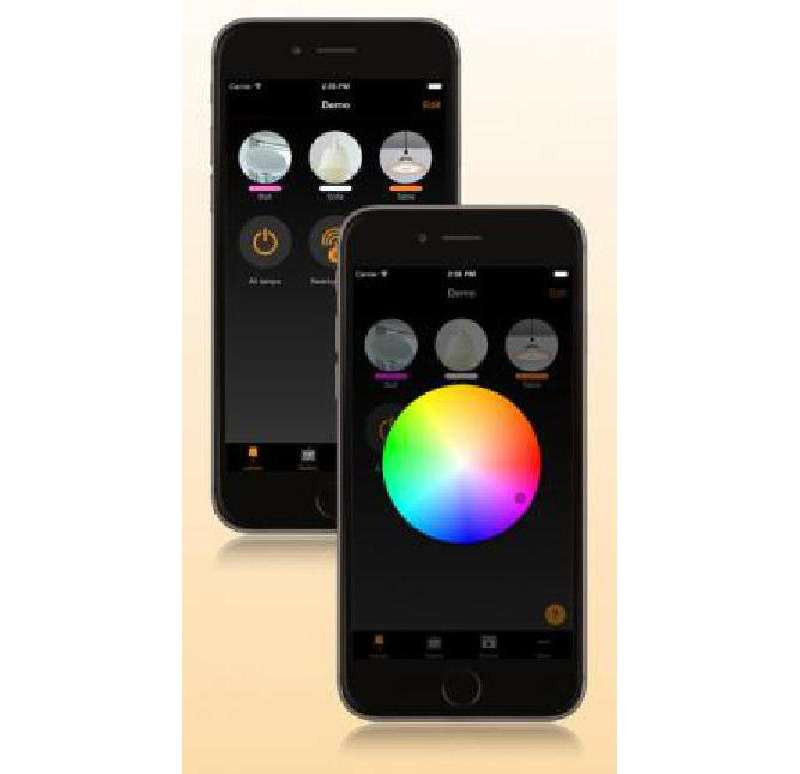

A variety of control options are available to you via the app - for example the overall light, but also individual lights in the network or just "lights nearby" on and off with a click, dim the light, combine groups or call up scenes.

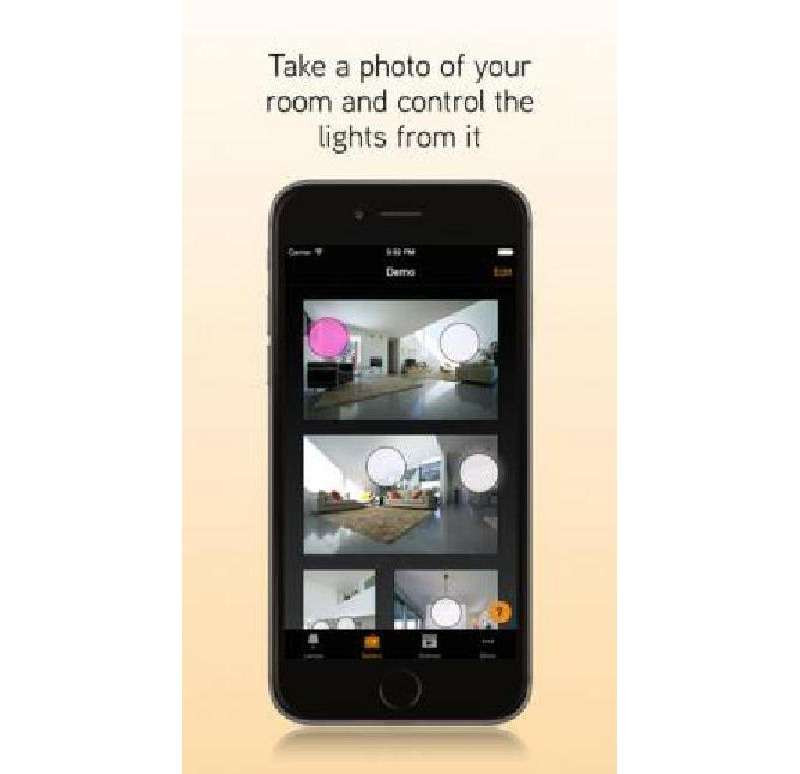

An additional feature: Use the app to take a photo of your room/rooms and mark the lights. As soon as you tap the lights in the app, the light turns on.

You can find the free Casambi App in the App or Plasy Store.
   iOS / Apple / iPhone / iPad
   iOS/AppleWatch
   Android
Related links to "Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter"
Technical Details:

Dimmable: ja
Method of Dimming: 1-10V
Input Current: AC 220-240V, 50/60Hz
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 62x38x22 mm
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: Surface-mounted housing
Net Weight: 50 g
Channels: 1
Dimming: 1-100%
Type of Packaging: box
Weight incl. Packaging: 0.05 kg
Warranty 2 years
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE
Bluetooth 4.0 auf 0-10V Ausgang/output
Zur Funk Dimmung von 0/1-10V Treibern
Steuerung übver App oder Funkschalter
