Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter
Order number: LG55060
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Smart wireless bluetooth mesh receiver wireless receiver with analogue... more
Product information "Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter"
Smart wireless bluetooth mesh receiver
- wireless receiver with analogue 0-10V dimmer output 1 channel
- compact dimensions for installation in boxes and lights
Wireless control unit for 0/1-10V LED drivers
With the help of the innovative Bluetooth 4.0 control unit IBTU Casambi Adapter, you can control 1/0-10V LED drivers via smartphone, tablet, but also via the normal switch.
The CASAMBI compatible module is based on a very small, IP20-protected housing with a height of 22.3 mm and a total length of 56.5 mm and can be installed in wallboxes or luminaires The module is equipped with a configurable interface (max. 7mA control current) for connecting dimmable electronic 0/1-10V LED driver.
Light scenes can be selected and the switch-on light level can be set using a mains switch. As soon as you have installed the devices in your 0/1-10V light and combined them into a network using your free Casambi app (Android + iOS), the devices form a continuous mesh with each other based on the far-reaching
and energy-saving standards Bluetooth 4.0. As soon as only one lamp is nearby, you can control all lamps. You don't need a central controller nearby.
A variety of control options are available to you via the app - for example the overall light, but also individual lights in the network or just "lights nearby" on and off with a click, dim the light, combine groups or call up scenes.
An additional feature: Use the app to take a photo of your room/rooms and mark the lights. As soon as you tap the lights in the app, the light turns on.
You can find the free Casambi App in the App or Plasy Store.
iOS / Apple / iPhone / iPad
iOS/AppleWatch
Android
Related links to "Casambi Smart Wireless auf 0-10V Dimmer Ausgang Adapter"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V |
| Input Current: | AC 220-240V, 50/60Hz |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |

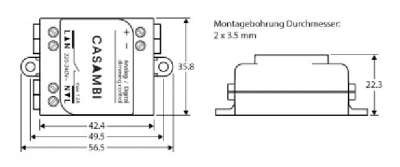

| Dimensions: | 56,5x35,8x22,3 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | für Einbau geeignet |
| Net Weight: | 40 g |
| Channels: | 1 |
| Dimming: | 1-100% |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.04 kg |
| Warranty | 2 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Bluetooth 4.0 auf 0-10V Ausgang/output | |
| Zur Funk Dimmung von 0/1-10V Treibern | |
| Steuerung übver App oder Funkschalter | |
