Order number: LG55070
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Short information
- Order number: : LG55070
- Power Draw: 144 W
- Input Current: DC 12-24V
- IP Code: 20
- Housing Color: white
- Dimensions: 72,6x30x18 mm
- Warranty: 2 years
Power Draw
144 W
IP Code
IP 20
Dimensions
(LxBxH) in mm
72,6x30x18
Warranty
2 years
Smart wireless bluetooth mesh receiver wireless receiver with PWM... more

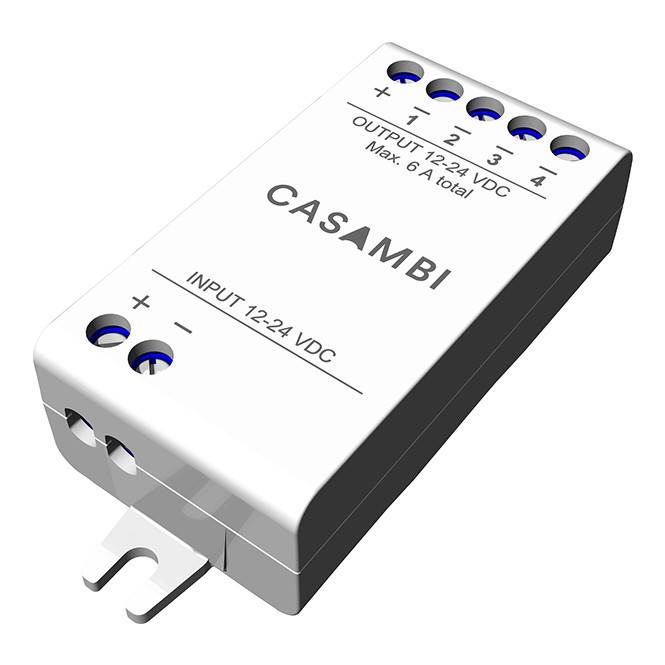

Product information "Casambi Smart Wireless auf PWM RGBW Dimmer"
Smart wireless bluetooth mesh receiver

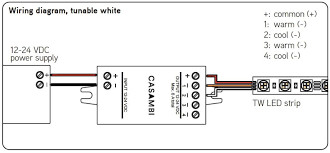

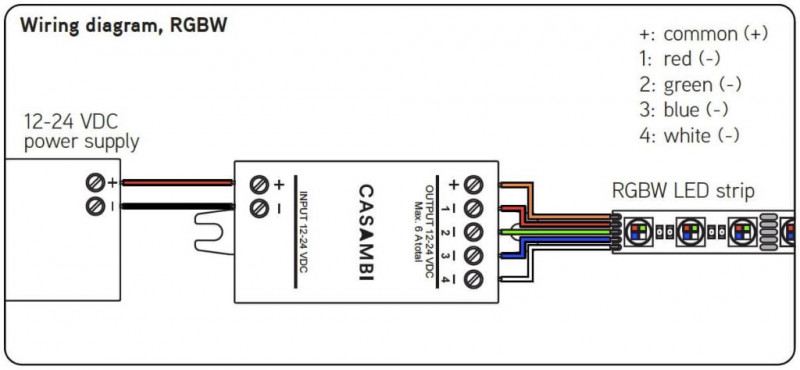

- wireless receiver with PWM dimmer output 4 channels for monochrome , dual white or RGBW LED-strips
- compact dimensions for installation in boxes and lights just 18mm x 30mmx73mm max.
- You need an additional 12-24V DC power supply
With the help of the innovative Bluetooth 4.0 control unit IBTU Casambi Adapter, you can controlLED strips via smartphone, tablet, but also via the remote switches.
The CASAMBI compatible module is based on a very small, IP20-protected housing and can be installed in wallboxes or luminaires

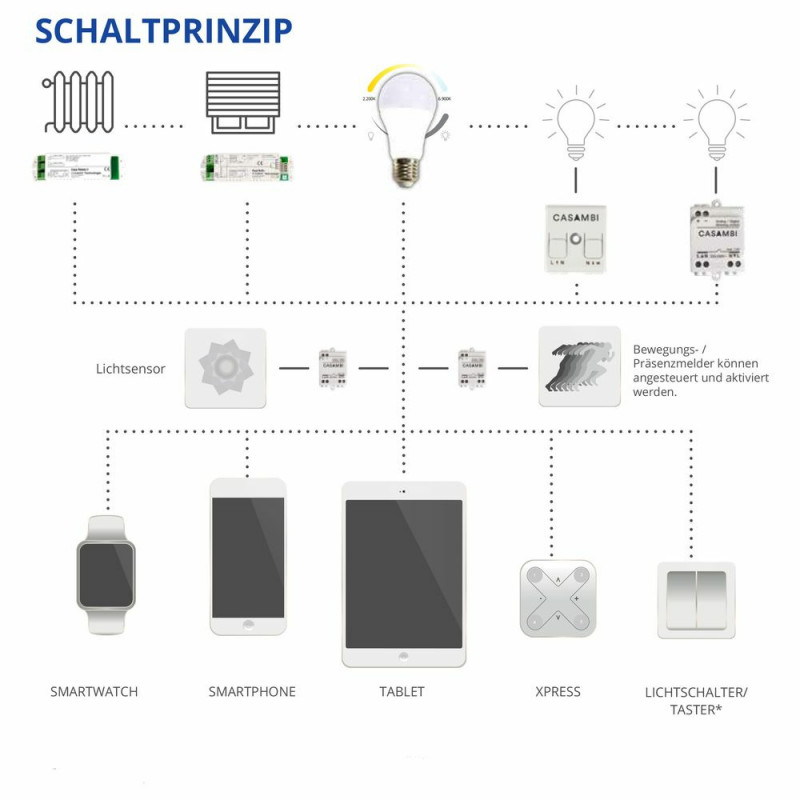

Light scenes can be selected and the switch-on light level can be set using a mains switch. As soon as you have installed the devices in your set up. Combined them into a network using your free Casambi app (Android + iOS), the devices form a continuous mesh with each other based on the far-reaching
and energy-saving standards Bluetooth 4.0. As soon as only one lamp is nearby, you can control all lamps. You don't need a central controller nearby.
A variety of control options are available to you via the app - for example the overall light, but also individual lights, colour fades, colour presets in the network or just "lights nearby" on and off with a click, dim the light, combine groups or call up scenes.
An additional feature: Use the app to take a photo of your room/rooms and mark the lights. As soon as you tap the lights in the app, the light turns on.
You can find the free Casambi App in the App or Plasy Store.
iOS / Apple / iPhone / iPad
iOS/AppleWatch
Android
Related links to "Casambi Smart Wireless auf PWM RGBW Dimmer"
Technical Details:
| Dimmable: | |
| Method of Dimming: | PWM |
| Input Current: | DC 12-24V |
| Power Consumption: | 144 W |
| Input Lamp: | terminal |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 55°C |

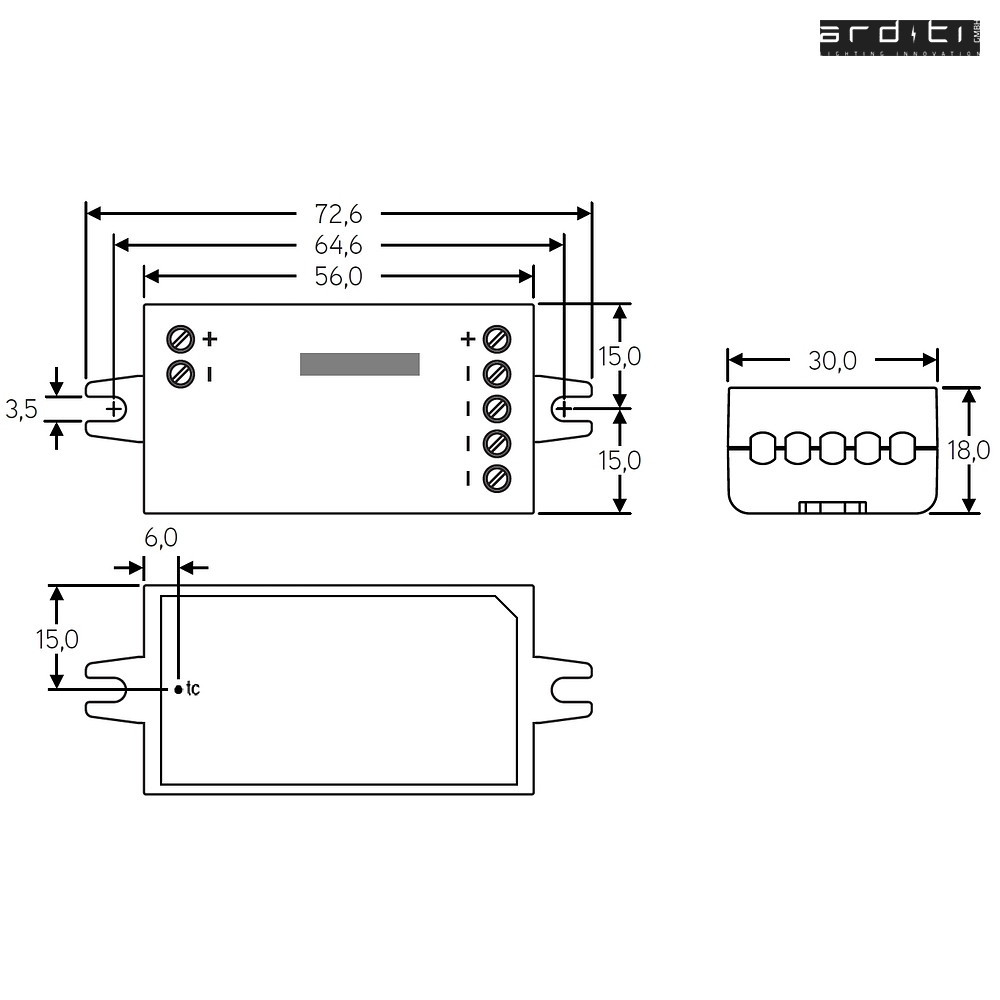

| Dimensions: | 72,6x30x18 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Surface-mounted housing |
| Channels: | 1 |
| Dimming: | 1-100% |
| Type of Packaging: | box |
| Warranty | 2 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Bluetooth 4.0 auf 1 ch: PWM Dim Adapter | |
| Zur Funk Dimmung von LED-Strips 4 Ch. | |
| Steuerung über App oder Funkschalter | |
| Für RGBW Strips 12-24V DC | |
| Es wird ein DC-Netzteil benötigt! | |
