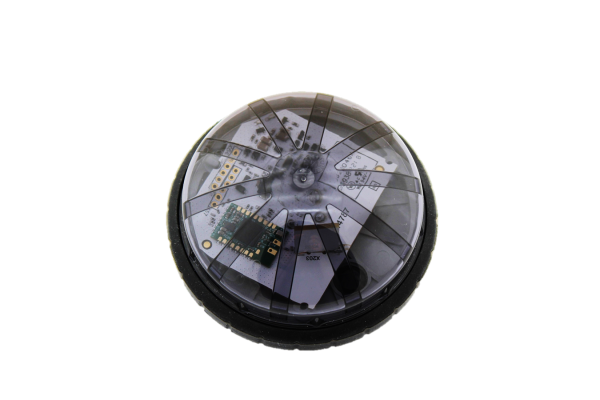

Casambi Schnittstelle Wireless auf Zhaga Book 18 mit Dali D4i
Order number: LG55064
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Smart wireless bluetooth mesh receiver Interface Interface Casambi-DALI for... more
Product information "Casambi Schnittstelle Wireless auf Zhaga Book 18 mit Dali D4i"
Smart wireless bluetooth mesh receiver Interface
Interface Casambi-DALI for outdoor luminaires typically street lighting or highbays

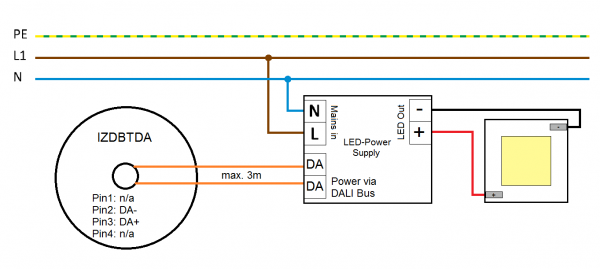

- wireless receiver with Dali 2 D4i dimmer output 1 channel
- compact dimensions for installation on luminaires with Zhaga Book 18 interface plug´n´play

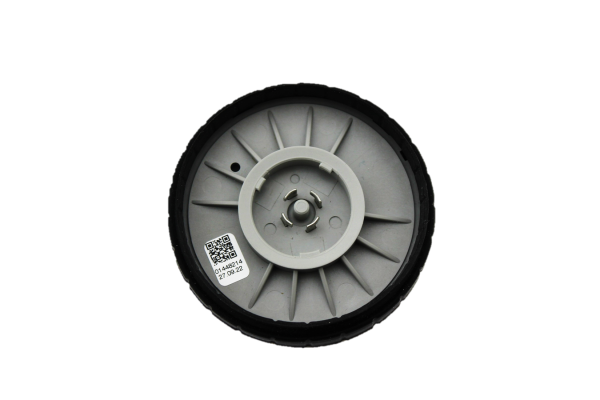

- Connection with socket according to Zhaga Book 18 Ed. 3, with gasket
- Luminaires communicate via radio for demand-oriented illumination scenes (max. radio signal range 150m)
- Configurable with the CASAMBI app and usable in many ways
- Up to 4 single addresses (1..4 Ch / RGB / RGBW) or broadcast
Wireless control unit for Dali drivers
With the help of the innovative Bluetooth 4.0 control unit IBTU Casambi Adapter, you can control
LED drivers via smartphone, tablet, but also via the normal switch.
The CASAMBI compatible module is based on a very small, IP20-protected housing with a height of 22.3 mm and a total length of 56.5 mm and can be installed in wallboxes or luminaires The module is equipped with a configurable interface (max. 7mA control current) for connecting dimmable electronic 0/1-10V LED driver.
Light scenes can be selected and the switch-on light level can be set using a mains switch. As soon as you have installed the devices in your 0/1-10V light and combined them into a network using your free Casambi app (Android + iOS), the devices form a continuous mesh with each other based on the far-reaching
and energy-saving standards Bluetooth 4.0. As soon as only one lamp is nearby, you can control all lamps. You don't need a central controller nearby.
A variety of control options are available to you via the app - for example the overall light, but also individual lights in the network or just "lights nearby" on and off with a click, dim the light, combine groups or call up scenes.
An additional feature: Use the app to take a photo of your room/rooms and mark the lights. As soon as you tap the lights in the app, the light turns on.
You can find the free Casambi App in the App or Plasy Store.
iOS / Apple / iPhone / iPad
iOS/AppleWatch
Android
Related links to "Casambi Schnittstelle Wireless auf Zhaga Book 18 mit Dali D4i"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | DALI |
| Input Current: | DC 9,5-22,5V, 13-30mA |
| Input Lamp: | Zhaga Book 18 |
| Ambient Temperature (TA): | -40°C - 70°C |

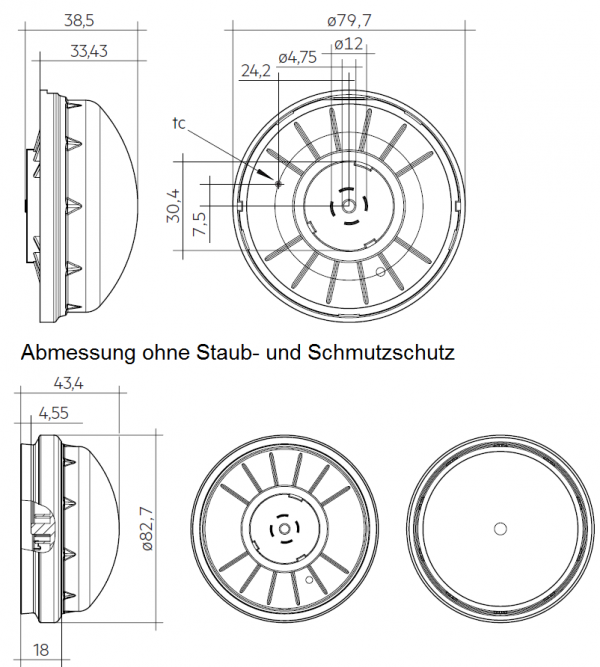

| Dimensions: | 82,7x43,4 mm |
| Mounting: | Decke |
| IP Class: | 66 |
| Housing Color | rauchfarben |
| Housing Material: | plastic |
| Special Feature of Housing: | für Einbau geeignet |
| Channels: | 1 |
| Dimming: | 1-100% |
| Type of Packaging: | box |
| Product Line: | Premio Line |
| Warranty | 2 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Bluetooth 4.0 auf Dali 2 D4iAusgang/output | |
| Zur Funk Dimmung von Dali Treibern 2,4 GHz | |
| Steuerung über App oder Funkschalter | |
| Über Dali D4i können interne Daten gelesen werden | |
| Dali Steps 251-254 D4i Infos: Verbrauch, Schaltzyk | |
