Casambi Smart Wireless auf DALI 1 Kanal Dimmer Ausgang Adapter Dali DT6/ DT8
Order number: LG55068
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Smart wireless bluetooth mesh receiver for Dali DT6/DT8 dimming ... more
Product information "Casambi Smart Wireless auf DALI 1 Kanal Dimmer Ausgang Adapter Dali DT6/ DT8"
Smart wireless bluetooth mesh receiver for Dali DT6/DT8 dimming
- wireless receiver with DALI dimmer output 1 channel
- compact dimensions for installation in boxes and lights
Wireless control unit for DALI LED drivers
With the help of the innovative Bluetooth 4.0 control unit IBTU Casambi Adapter, you can control DALI LED drivers via smartphone, tablet, but also via the normal switch.
Long range mode possible!
The CASAMBI compatible module is based on a very small, IP20-protected housing with a height of 22 mm and a total length of 56.5 mm and can be installed in wallboxes or luminaires The module is equipped with a configurable interface (max. 7mA control current) for connecting dimmable electronic DALI LED driver.
Light scenes can be selected and the switch-on light level can be set using a mains switch. As soon as you have installed the devices in your DALI light and combined them into a network using your free Casambi app (Android + iOS), the devices form a continuous mesh with each other based on the far-reaching
and energy-saving standards Bluetooth 4.0. As soon as only one lamp is nearby, you can control all lamps. You don't need a central controller nearby.
A variety of control options are available to you via the app - for example the overall light, but also individual lights in the network or just "lights nearby" on and off with a click, dim the light, combine groups or call up scenes.

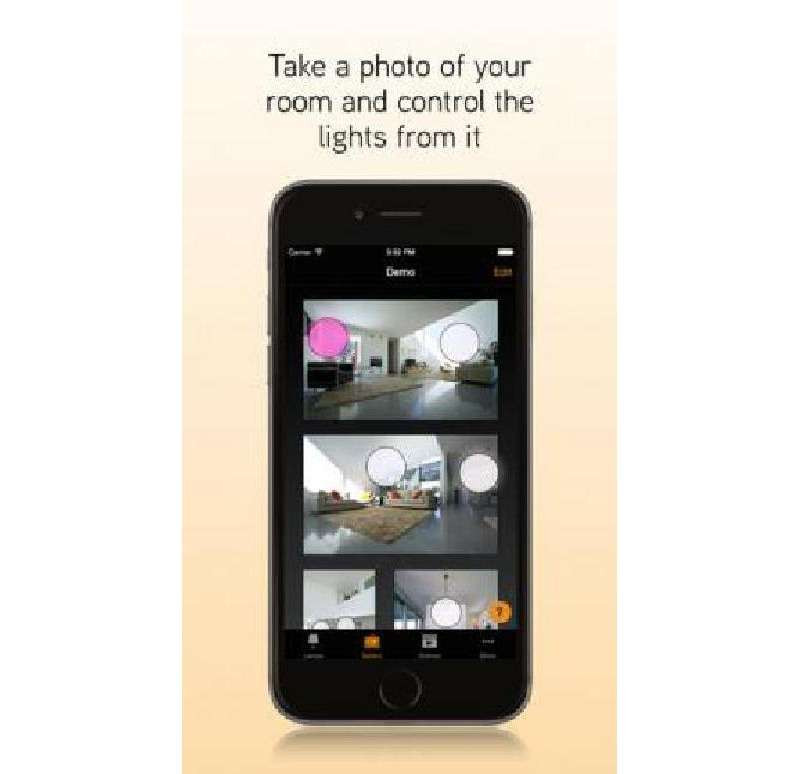

An additional feature: Use the app to take a photo of your room/rooms and mark the lights. As soon as you tap the lights in the app, the light turns on.

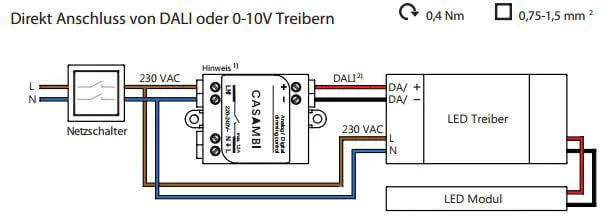

With standalone DALI [1] output, CBU-ASD-LR acts both as a controller and power supply, making it possible to connect directly to an LED driver with DALI interface without needing an external DALI power supply. This so-called standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components to a minimum.
You can find the free Casambi App in the App or Plasy Store.
iOS / Apple / iPhone / iPad
iOS/AppleWatch
Android
Related links to "Casambi Smart Wireless auf DALI 1 Kanal Dimmer Ausgang Adapter Dali DT6/ DT8"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | DALI |
| Input Current: | AC 220-240V, 50Hz |
| Input Driver: | terminal |
| Output of Driver: | DC 9-12VV, 20mA |
| CC/CV: | CV |
| Input Lamp: | terminal |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -20°C - 55°C |

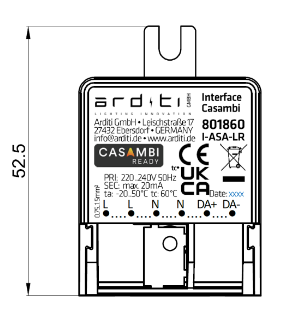

| Dimensions: | 52,5x35,5x20 mm |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | plastic |
| Special Feature of Housing: | für Einbau geeignet |
| Channels: | 1 |
| Dimming: | 1-100% |
| Warranty | 2 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Bluetooth Mesh 2,4GHz, 8dBm Dali Dim Adapter | |
| Zur Funk Dimmung von Dali DT6/DT8 Treibern | |
| Steuerung über App oder Funkschalter 2,4GHz | |
| Putput: 20mA max. 10 Verbraucher/Treiber | |
