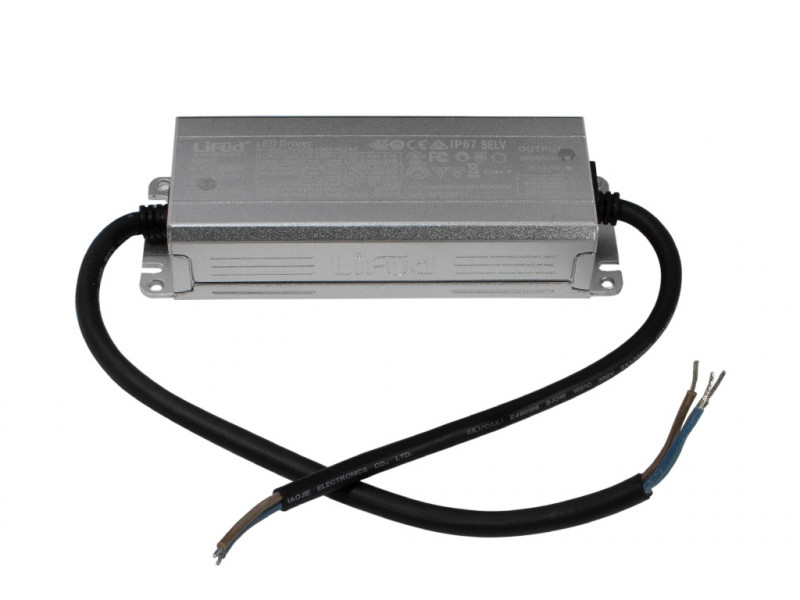

Lifud LF-GOE100YV024A CV Power supply Flicker free

LG51255
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG51255
  • Power Draw: 100 W
  • IP Code: 67
  • Housing Color: grey
  • Dimensions: 170x61x34 mm
  • Warranty: 5 years

Power Draw

100 W

IP Code

IP 67

mounting type

Dimensions

(LxBxH) in mm
170x61x34

Warranty

5 years

LED Power Supply   The Lifud LF-GOE100YV024A is an extremely versatile power... more
Product information "Lifud LF-GOE100YV024A CV Power supply Flicker free"
LED Power Supply

The Lifud LF-GOE100YV024A is an extremely versatile power supply for all kinds of passive LED projectors and strips. You can use it indoor or outdoor installations such as LED strip lighting, landscape lighting or LED box lighting.

Product Features:
  • usable for all DC 24V single-colour LED strips and LED bulbs
Technical Details:
  • Mains input: AC 220 - 240V, 47 - 63Hz (max. 200 - 264V AC)
  • Housing: steel with plastic covers
  • Output voltage: DC 24V +/-0,5V, constant voltage
  • Rated power: 4,16A
  • Output power: 100W
  • Dimmable: no
  • Protection: short circuit, over load, over voltage
  • Scope: LED strips and  Illumination
  • Safety standars: SELV, TÜV, CE, CB, ENEC
  • Power Faktor: >0,95
  • Efficiency: 89%
Related links to "Lifud LF-GOE100YV024A CV Power supply Flicker free"
Technical Details:

Ignition Time: <0,5 s
Power Consumption: 100 W
Driver Manufacturer: Lifud
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 24V, 4160mA
CC/CV: CV
Input Lamp: terminal
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -40°C - 60°C
Storage Temperature: -40°C - 80°C
Dimensions: 170x61x34 mm
Montageart: surface mounted
IP Class: 67
Housing Color grey
Housing Material: steel
Coating: powder-coated
Net Weight: 617 g
Content Master Package: 24
Dimensions of Master Package: 420x300x210 mm
Weight Master Package: 17 kg
Product Line: Advance Line
Warranty 5 years
Disposal Obligation: ja
Customs Tariff Number: 8504408390
Certifications CE
Netzteil für LED-Strips oder andere Leuchtmedium
power supply for LED strips and bulbs
wetterfest
