Order number: LG60011
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG60011
- Housing Color: white
- Dimensions: 400x155x32 mm
- Cut-Out Dimensions: 122 x 360 mm
- Warranty: 2 years
ceiling, wall
mounting type
Dimensions
(LxBxH) in mm
400x155x32
Warranty
2 years
Ceiling mounting frame for Emergy Brick Metal frame for half-concealed... more
Product information "Emergy Brick Frame"

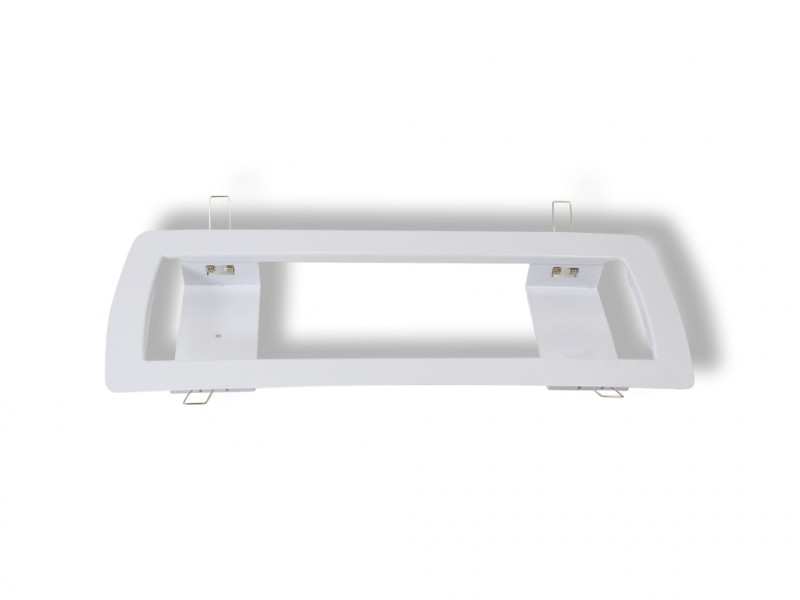

Ceiling mounting frame for Emergy Brick

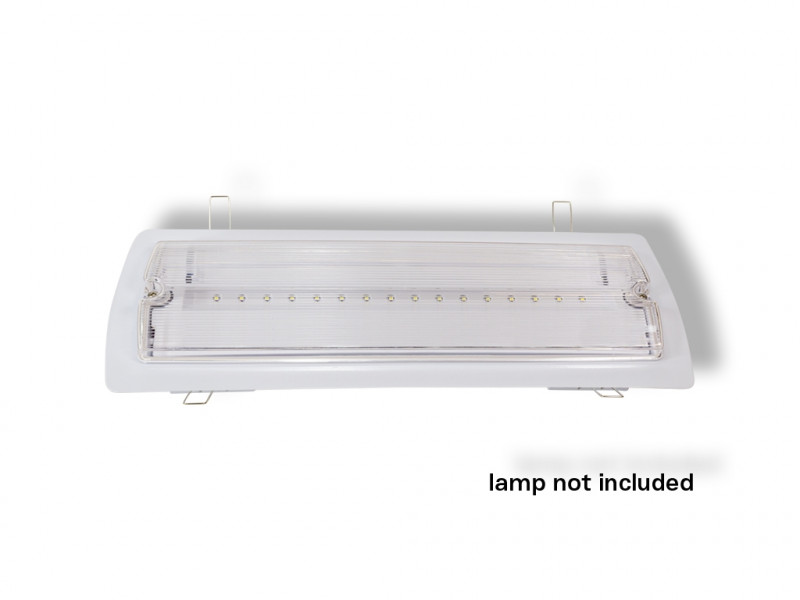

Metal frame for half-concealed installation of a Litegear Emergy Brick luminaire in a grid or plasterboard ceiling. Assembly by means of spring clips.
Fixing the Brick light by means of screws on the backside. Can be used for plasterboard walls as well.
Only for LG60009!
Related links to "Emergy Brick Frame"
Technical Details:
Dimensions: | 400x155x32 mm |
Installation Depth: | 30 mm |
Cut-Out Dimensions: | 122 x 360 mm |
Mounting: | ceiling,wall |
Montageart: | recessed |
Housing Color | white |
Housing Material: | steel |
Net Weight: | 294 g |
Type of Packaging: | box |
Dimensions of Packaging: | 165x38x400 |
Weight incl. Packaging: | 0.388 kg |
Content Master Package: | 20 |
Dimensions of Master Package: | 430x345x420 mm |
Weight Master Package: | 8,6 kg |
Warranty | 2 years |
Disposal Obligation: | |
Customs Tariff Number: | 9405990090 |
Certifications | CE |
Barcode: | 4250557817798 |
passend für LG60010 |
